Fuyuang FY6723000 67.2V 3A 200W Lithium Battery Charger for 60V 16S E-scooter and E-bike Packs

Fuyuang FY6723000 67.2V 3A 200W Lithium Battery Charger for 60V 16S E-scooter and E-bike Packs

Name: Fuyuang FY6723000 67.2V 3A 200W Lithium Battery Charger for 60V 16S E-scooter and E-bike Packs
Brand: Fuyuang
Rating: 5.0 (64 reviews)

The Fuyuang FY6723000 is a 67.2V 3A lithium battery charger rated 200W, built for 16S 60V lithium battery packs fitted to electric scooters, e-bikes and hoverboards. A 2A version is also available on the same platform. Input is 100-240V at 2.5A, and charging follows a CC-CV-trickle profile. Efficiency is above 89% and protection covers short circuit, over-current and over-voltage. The charger measures 178 x 80 x 46 mm, weighs 0.78 kg and uses a fireproof PC housing with a DC port. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005 and runs a CNAS-standard EMC laboratory. Every unit carries a 3-year warranty and 100% factory inspection.

Model:
FY6723000
Brand:
Fuyuang
Code:
FY6723000


Availability:

Product Overview

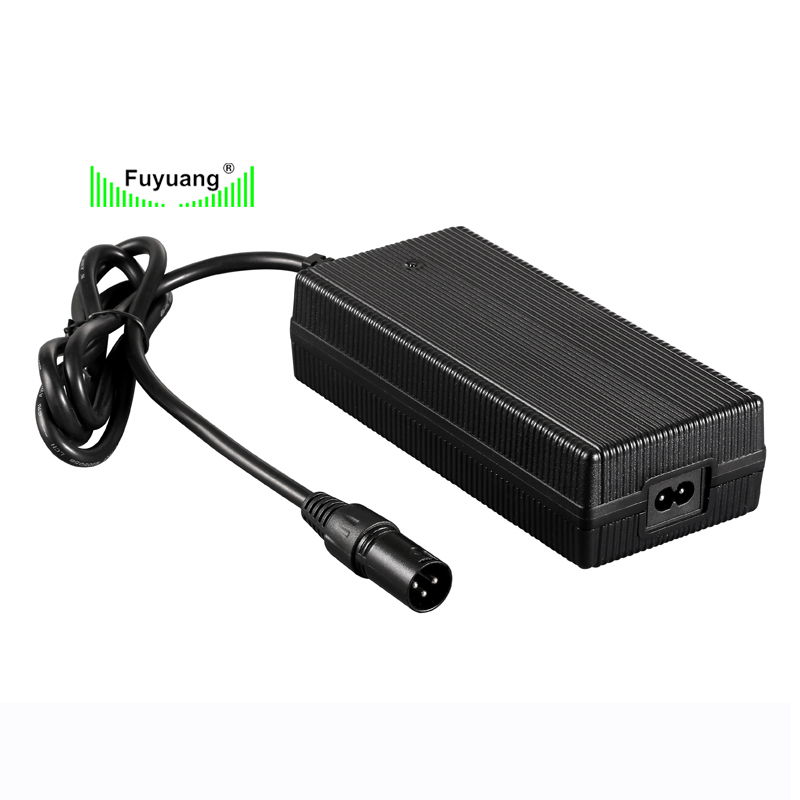

The FY6723000 is a 67.2V 3A lithium battery charger rated 200W for 16S 60V lithium battery packs. It suits electric scooters, e-bikes, hoverboards and similar light electric vehicles. The charger accepts a 100-240V 2.5A input and uses a CC-CV-trickle charging profile with efficiency above 89%. Protection covers short circuit, over-current and over-voltage, and the housing measures 178 x 80 x 46 mm at 0.78 kg.

Key Features

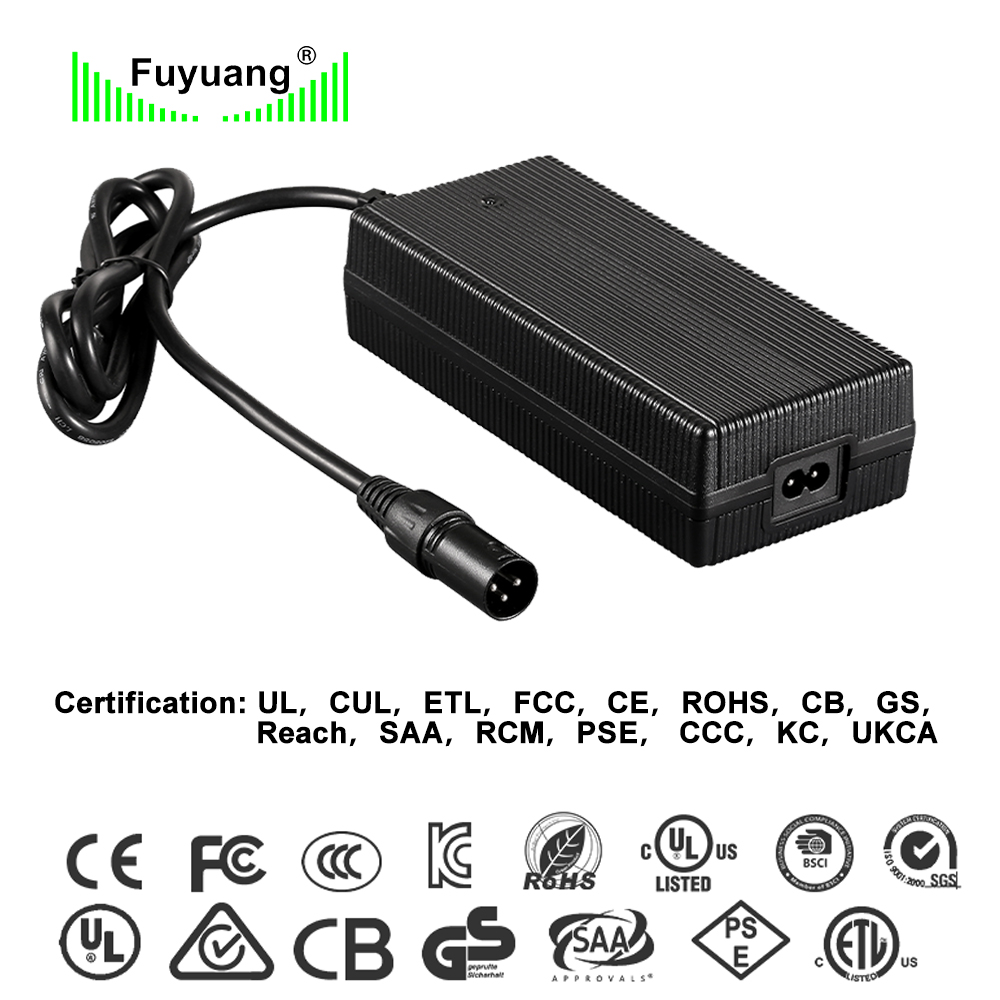

• 67.2V 3A output for 16S 60V lithium battery packs • 200W output power, 2A version also available • 100-240V 2.5A universal AC input • CC-CV-Trickle Charge charging mode • Efficiency above 89% • Short circuit, over-current and over-voltage protection • Fireproof PC housing with DC port • UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS and REACH certified

Technical Specifications

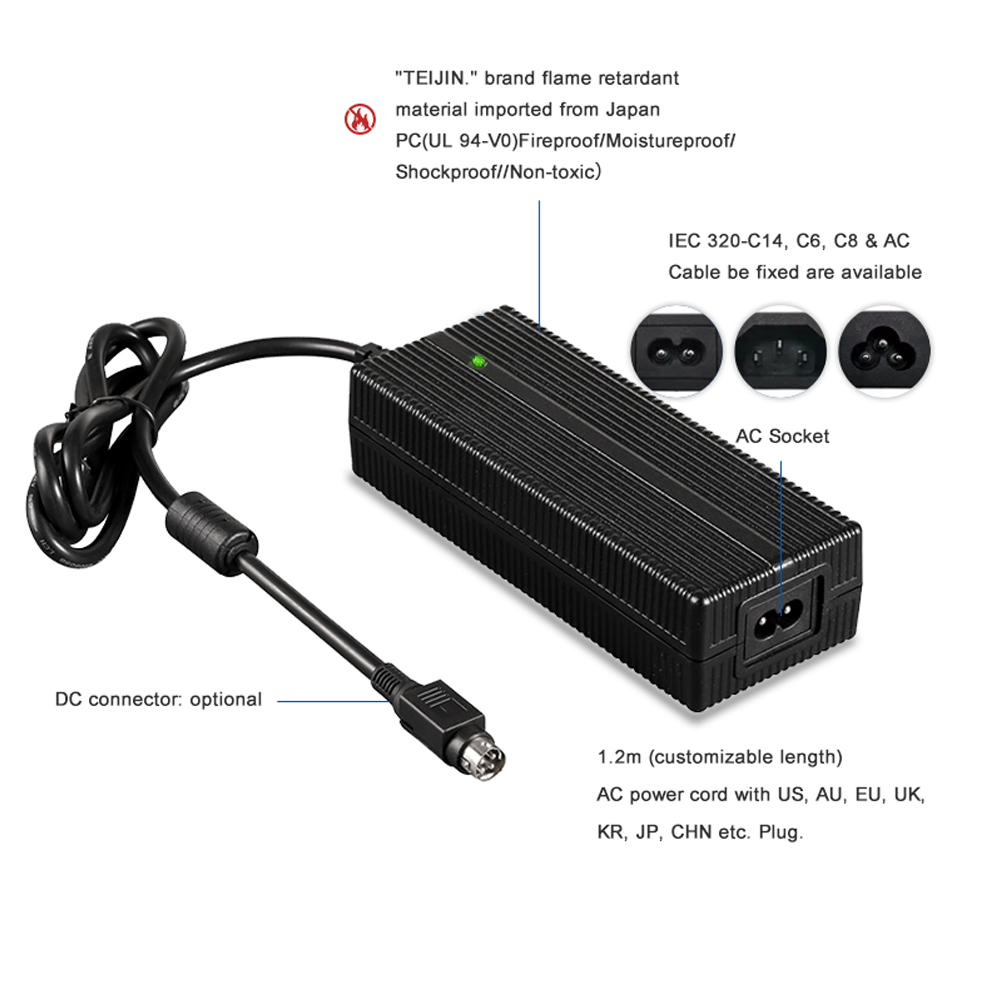

• Model: FY6723000 • Product type: lithium battery charger • Input: 100-240V, 2.5A • Output: 67.2V 3A (60V) • Output power: 200W • Battery: 16S 60V lithium battery pack • Charge mode: CC-CV-Trickle Charge • Efficiency: >89% • Protection: short circuit, over-current, over-voltage • Dimension: 178 x 80 x 46 mm • Weight: 0.78 kg • Material: PC fireproof material • Port: DC • Certification: UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS, REACH • Warranty: 3 years

Applications

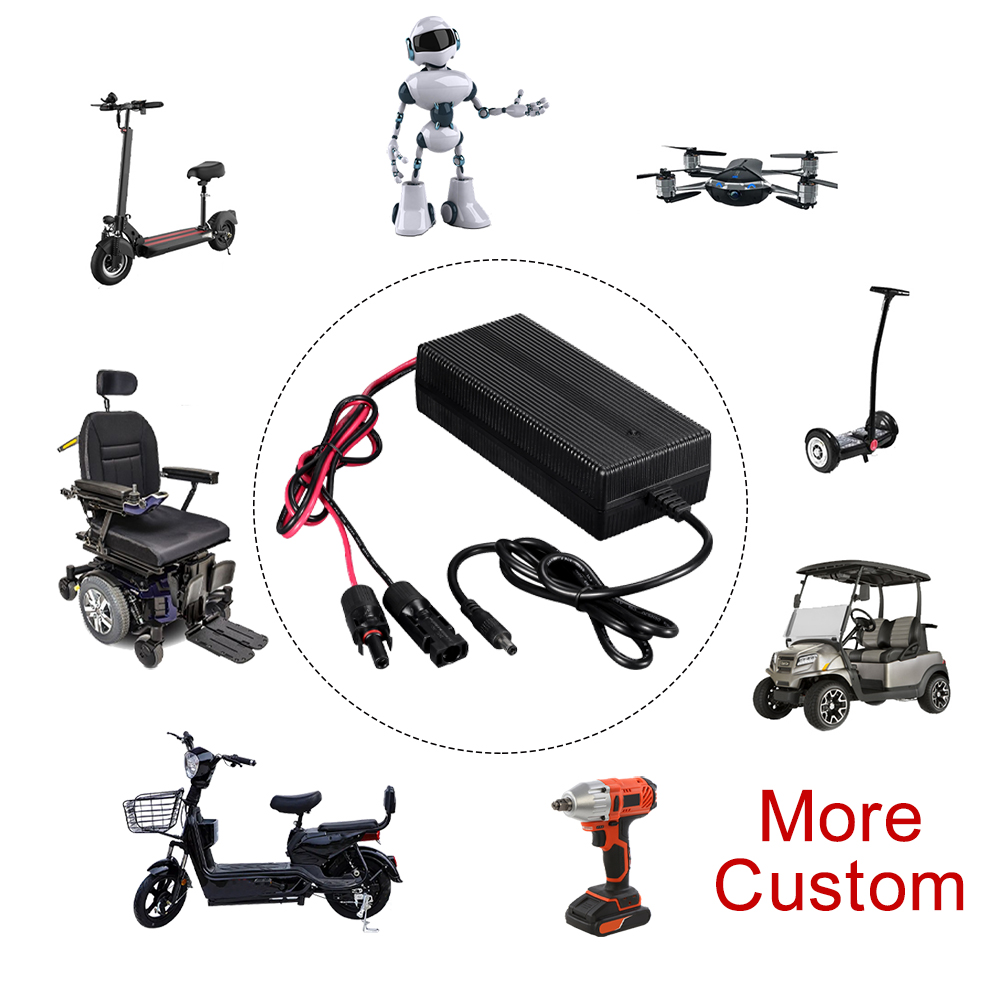

• 60V electric scooters • E-bikes and electric bicycles • Hoverboards • Electric scooter motors • 16S lithium battery packs

Customization & Service

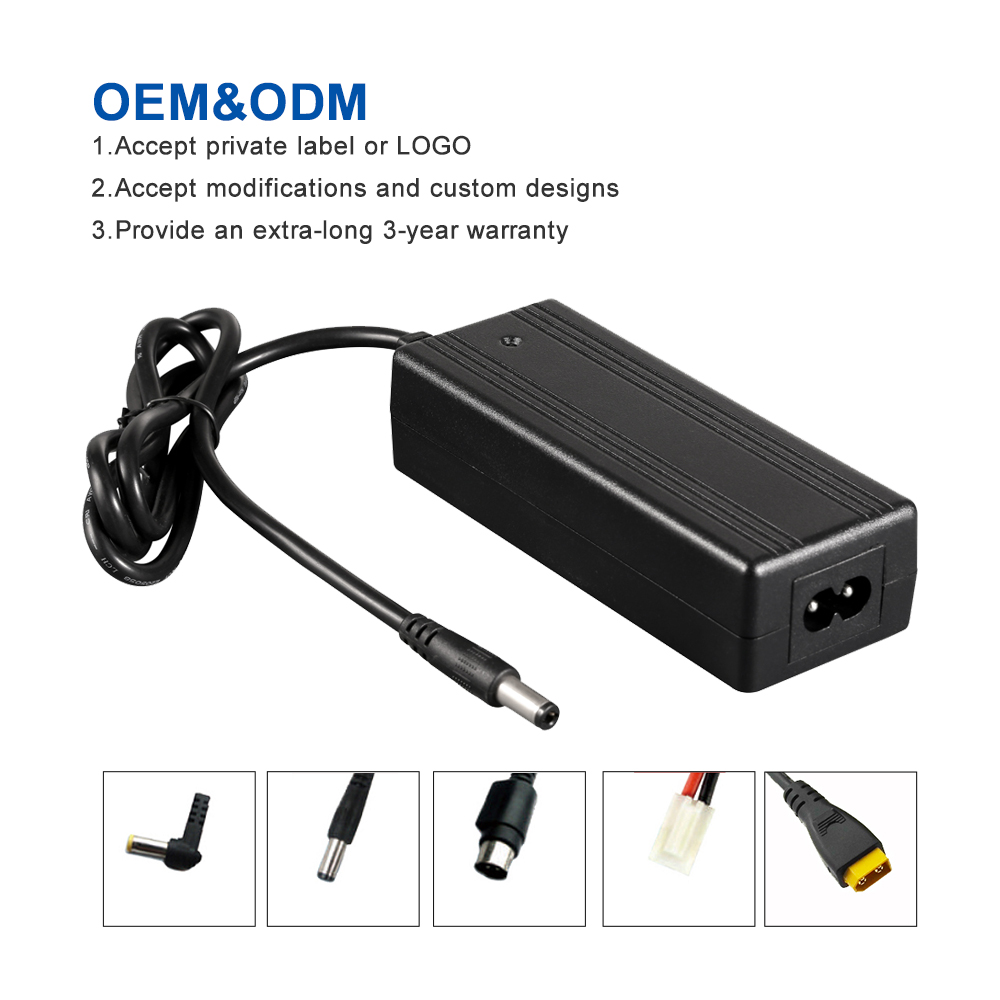

Fuyuan Electronic Co., Ltd offers OEM and ODM services on this charger, including custom output voltage and current, custom DC connectors, private labeling and LOGO printing. The CNAS-standard EMC laboratory supports pre-compliance EMC checks before certification. Each charger is 100% factory inspected, full-load burn-in tested for 4-8 hours and covered by a 3-year warranty. MOQ is 100 PCS.
