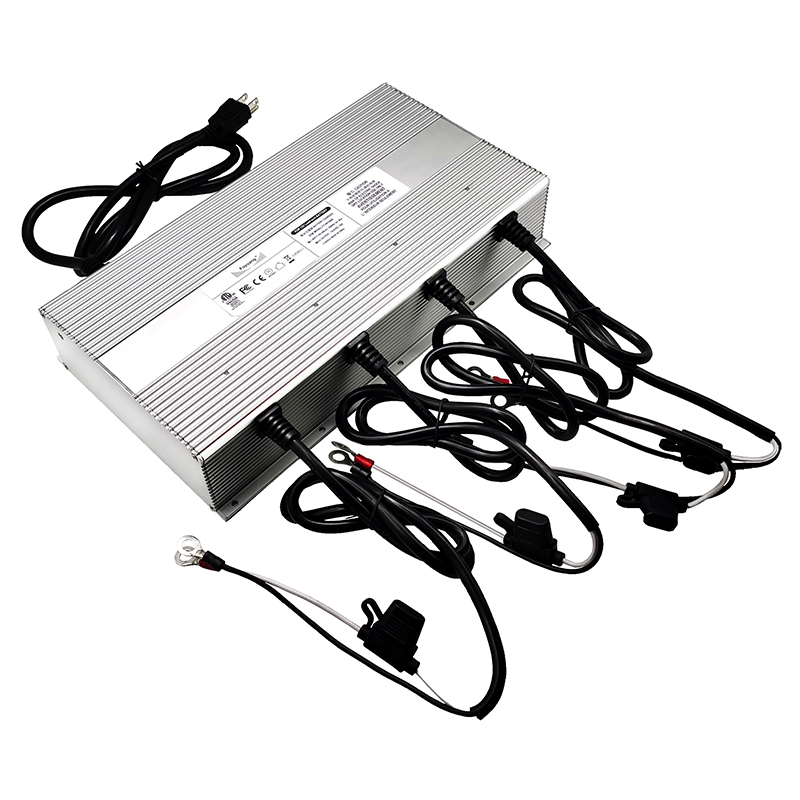

Fuyuang FY584yyyy 1000W One-Output Four-Parallel Battery Charger and Power Supply for E-bike, Scooter and Industrial Li-ion Packs

Fuyuang FY584yyyy 1000W One-Output Four-Parallel Battery Charger and Power Supply for E-bike, Scooter and Industrial Li-ion Packs

Name: Fuyuang FY584yyyy 1000W One-Output Four-Parallel Battery Charger and Power Supply for E-bike, Scooter and Industrial Li-ion Packs
Brand: Fuyuang
Rating: 5.0 (42 reviews)

The Fuyuang FY584yyyy is a 1000W desktop charger and power supply with one output that can feed four parallel battery branches, so a group of packs can be charged or supported from a single unit. It accepts AC 100-240V 50/60Hz (100-240V 1.2A) and is built in a private mold enclosure weighing 5.8kgs. The unit is designed for industrial and light electric vehicle applications such as e-bikes, scooters and electric cars running Li-ion battery packs, where paralleled capacity has to be charged evenly. A LED indicator is fitted, the housing is available in black or white, and the charger is certified to CE, GS, PSE, SAA, FCC, CB and RoHS. Fuyuan Electronic Co., Ltd has been manufacturing chargers and power supplies since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This unit carries a 3-year warranty.

Model:
FY584yyyy
Brand:
Fuyuang
Code:
FY584yyyy


Availability:

Product Overview

The FY584yyyy is a 1000W desktop charger and power supply with one output that distributes charge to four parallel battery branches. Instead of installing four separate chargers, a system integrator can use one unit to bring a paralleled pack set to the same state of charge. This configuration suits industrial equipment, e-bikes, scooters and electric car packs where capacity is built up from several batteries in parallel.

Key Features

• 1000W output power from a single desktop unit • One output feeding four parallel battery branches • Works as both a battery charger and a DC power supply • AC input 100-240V 50/60Hz, 100-240V 1.2A • Private mold housing in black or white, 5.8kg per piece • LED indicator for operating status • Certified to CE, GS, PSE, SAA, FCC, CB and RoHS • Supplied in brown box packaging for export

Technical Specifications

• Model: FY584yyyy • Product: 1000W one-output four-parallel battery charger and power supply • Input: AC 100-240V 50/60Hz (100-240V 1.2A) • Output configuration: one output, four parallel battery branches • Output power: 1000W • Battery type: Li-ion battery packs • Type: desktop • Color: black / white, private mold enclosure • Weight: 5.8kg per piece • Indicator: LED light fitted • Package: brown box • Certification: CE, GS, PSE, SAA, FCC, CB, RoHS • MOQ: 10 PCS

Applications

• Electric bicycles and e-bike battery packs • Electric scooters and light electric vehicles • Electric car and industrial traction packs • Battery pack parallel charging in workshops • Industrial equipment and energy storage • Fleet charging and battery maintenance

Customization & Service

The unit is produced in a private mold and can be customised for output voltage and current, number of parallel branches, connectors and cables, housing colour, private labeling, LOGO printing and packaging under an OEM or ODM agreement. Each charger is 100% factory inspected and covered by a 3-year warranty. The low standard MOQ for this model is 10 PCS, which allows a trial build before volume production.
