Fuyuang FY42009000 42V 9A Smart Battery Charger with RS485 Control for Hospital Delivery Robots

Fuyuang FY42009000 42V 9A Smart Battery Charger with RS485 Control for Hospital Delivery Robots

Name: Fuyuang FY42009000 42V 9A Smart Battery Charger with RS485 Control for Hospital Delivery Robots
Brand: Fuyuang
Rating: 5.0 (1 reviews)

The Fuyuang FY42009000 is a compact Li-ion 10S battery charger designed for 42V 9A smart chargers for hospital delivery robots. It provides 42V 9A output from a 100-240V/0.2A universal input and is designed into equipment that is charged in place, day after day. Fast charging speed, FCP and SCP support, CC/CV charging with automatic cut-off, and full short circuit / over-voltage / over-current / over-temperature / over-load / reverse polarity protection keep the pack safe. The fanless PC fireproof housing (ABS, aluminium alloy and aluminium also available) requires no fan maintenance, and both the AC and DC connectors can be customized, along with LOGO printing and packaging. The charger is manufactured by Fuyuan Electronic Co., Ltd (Fuyuang), a power supply manufacturer founded in 2005 with two production bases in Dongguan and Yongzhou, 108,000 m2 of factory space and 450 employees.

Model:
FY42009000
Brand:
Fuyuang
Code:
FY42009000


Availability:

Product Overview

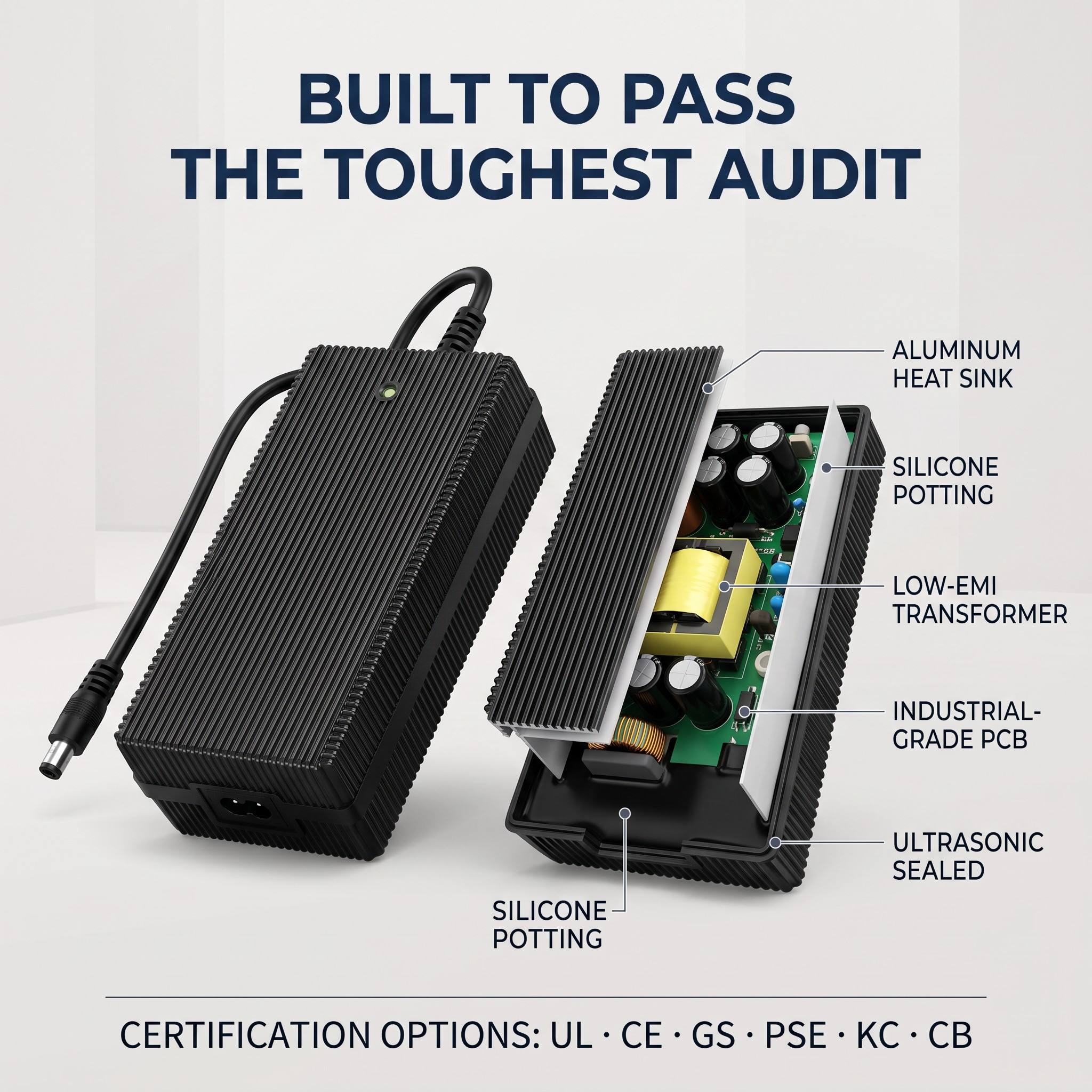

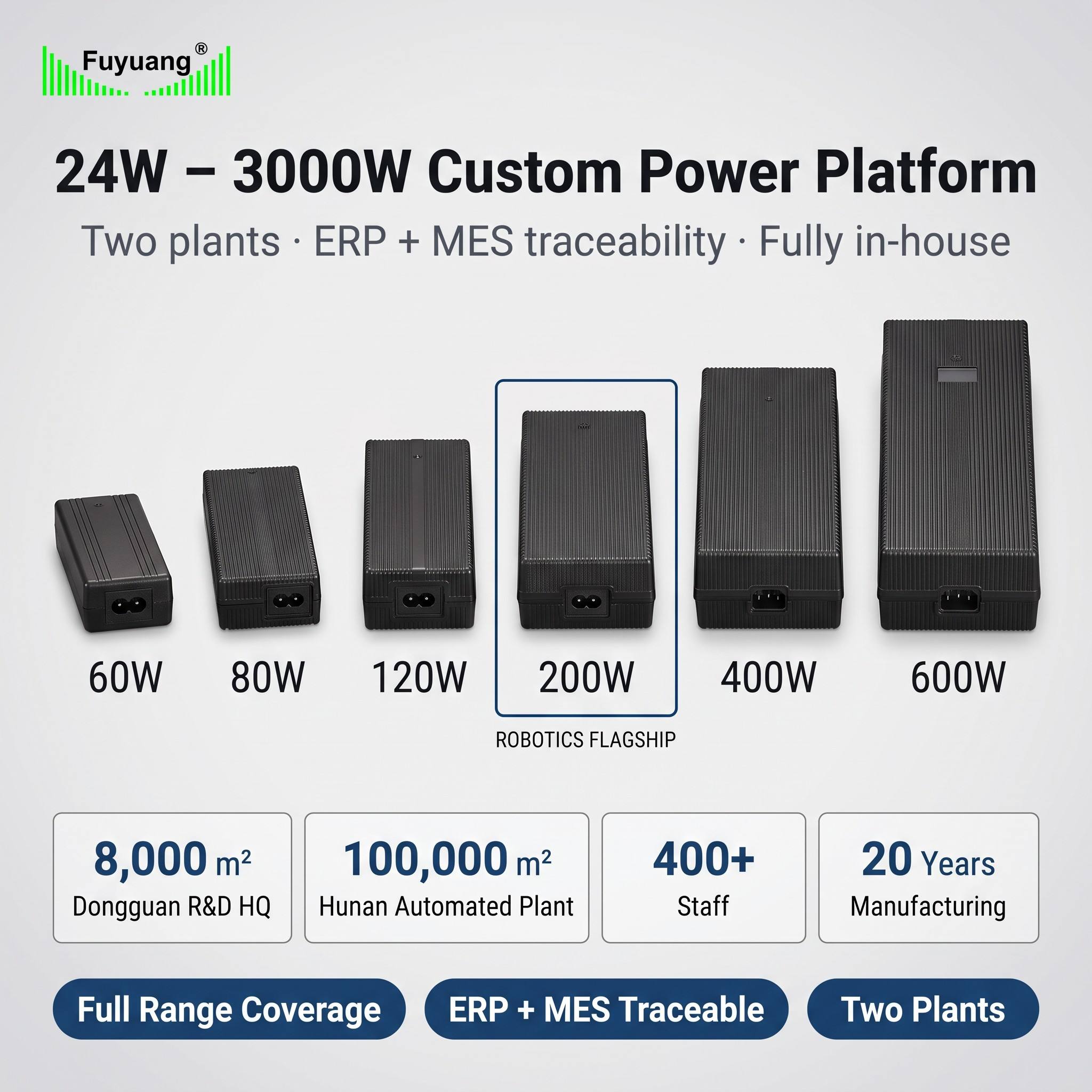

The FY42009000 is a Li-ion 10S battery charger built for 42V 9A smart chargers for hospital delivery robots. It delivers 42V 9A from a universal 100-240V/0.2A input and is part of a charger platform that covers 60W / 90W / 100W / 120W / 125W / 135W / 140W / 150W / 200W / 378W / 400W, so the same housing and control electronics can be matched to different pack voltages. Charging follows a constant-current / constant-voltage profile with automatic cut-off, and the unit carries short circuit, over-voltage, over-current, over-temperature, over-load and reverse polarity protection. The fanless fireproof housing needs no maintenance and produces no audible noise.

Key Features

• RS485 control interface for scheduled charging in hospital robot fleets • 42V 9A output for 10S 36V lithium packs, 378W to 400W platform power • Fast charging speed with FCP and SCP support • Constant-current / constant-voltage charging with automatic cut-off when the battery is full • Short circuit, over-voltage (OVV), over-current (OVC), over-temperature, over-load, low-tension and reverse-polarity protection • PC fireproof housing, also available in ABS, aluminium alloy and aluminium • Private-mould platform with customizable AC and DC connectors • Universal 100-240V input for worldwide operation

Technical Specifications

• Model: FY42009000 • Input: 100-240V/0.2A • Output: 42V 9A • Rated power: 378W - 400W • Platform power range: 60W / 90W / 100W / 120W / 125W / 135W / 140W / 150W / 200W / 378W / 400W • Battery chemistry: Li-ion • Battery configuration: 10S • Housing material: ABS / aluminium alloy / aluminium / PC fireproof material • Cooling: fanless, free-air convection • Protection: short circuit, over-voltage (OVV), over-current (OVC), over-temperature (OTP), over-load (OLP), low-tension, over-charging, over-voltage and fireproof protection • Net weight: 1.6KG • Certification: CE, FCC, RoHS, UKCA, UL | MOQ: 100 PCS

Applications

• Hospital delivery robots and medical service equipment • Electric tools • Home security systems • Household electrical appliances • Motorcycles and scooters • Medical devices • Industrial equipment

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on the FY42009000 platform. Output voltage and current, AC and DC connectors, cable length, housing, labelling and LOGO printing can all be customized. Engineering work is supported by a CNAS-standard EMC laboratory and an in-house RoHS testing room, so compliance can be screened before formal certification and custom development can be completed in as little as 10 days. This is a private-mould design. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Certifications available for this platform: CE, FCC, RoHS, UKCA, UL.
