Fuyuang FY12015000 12.6V 15A 180W-200W Lithium Battery Charger for Vehicles, Motorcycles and E-bikes

Fuyuang FY12015000 12.6V 15A 180W-200W Lithium Battery Charger for Vehicles, Motorcycles and E-bikes

Name: Fuyuang FY12015000 12.6V 15A 180W-200W Lithium Battery Charger for Vehicles, Motorcycles and E-bikes
Brand: Fuyuang
Rating: 5.0 (70 reviews)

The Fuyuang FY12015000 is a high-current 12.6V 15A lithium battery charger rated 180W to 200W. It serves 12V lithium packs used in vehicles, motorcycles, e-bikes, scooters, drones and electric tools. Input is 100-240Vac 50/60Hz and charging follows a CC-CV-trickle or stop-charge profile with a red/green LED indicator. The fanless design cools by free air convection for silent, dust-free operation, and efficiency is above 89% with a fireproof PC housing. Fuyuan Electronic Co., Ltd has produced chargers since 2005 with 450 employees and two production bases. This charger is 100% factory inspected and covered by a 3-year warranty.

Model:
FY12015000
Brand:
Fuyuang
Code:
FY12015000


Availability:

Product Overview

The FY12015000 is a 12.6V 15A lithium battery charger with an output power rating of 180W to 200W. It charges 12V lithium battery packs and is intended for vehicles, motorcycles, e-bikes, scooters, drones and electric tools. The charger operates from a 100-240Vac 50/60Hz input and uses a CC-CV-trickle charge or stop-charge profile with a red/green LED indicator. Fanless free-air convection cooling keeps it quiet and free of dust ingress.

Key Features

• 12.6V 15A high-current output for 12V lithium battery packs • Output power 180W-200W • 100-240Vac 50/60Hz universal input • CC-CV-Trickle Charge / Stop Charge charging mode • Fanless design, cooled by free air convection • Efficiency above 89% with red/green LED indicator • Fireproof PC housing, DC output port • Short circuit, overload, over-voltage and over-temperature protection

Technical Specifications

• Model: FY12015000 • Product type: lithium battery charger • Input: 100-240Vac, 50/60Hz • Output: 12.6V 15A • Output power: 180W-200W • Charge mode: CC-CV-Trickle Charge / Stop Charge • Efficiency: >89% • Cooling: fanless, free air convection • Indicator: red/green LED • Protection: short circuit, overload, over-voltage, over-temperature • Material: PC fireproof material • Port: DC • Color: black • Warranty: 3 years

Applications

• Vehicles and motorcycles • E-bikes and electric bicycles • Electric scooters • Drones • Electric tools and robots

Customization & Service

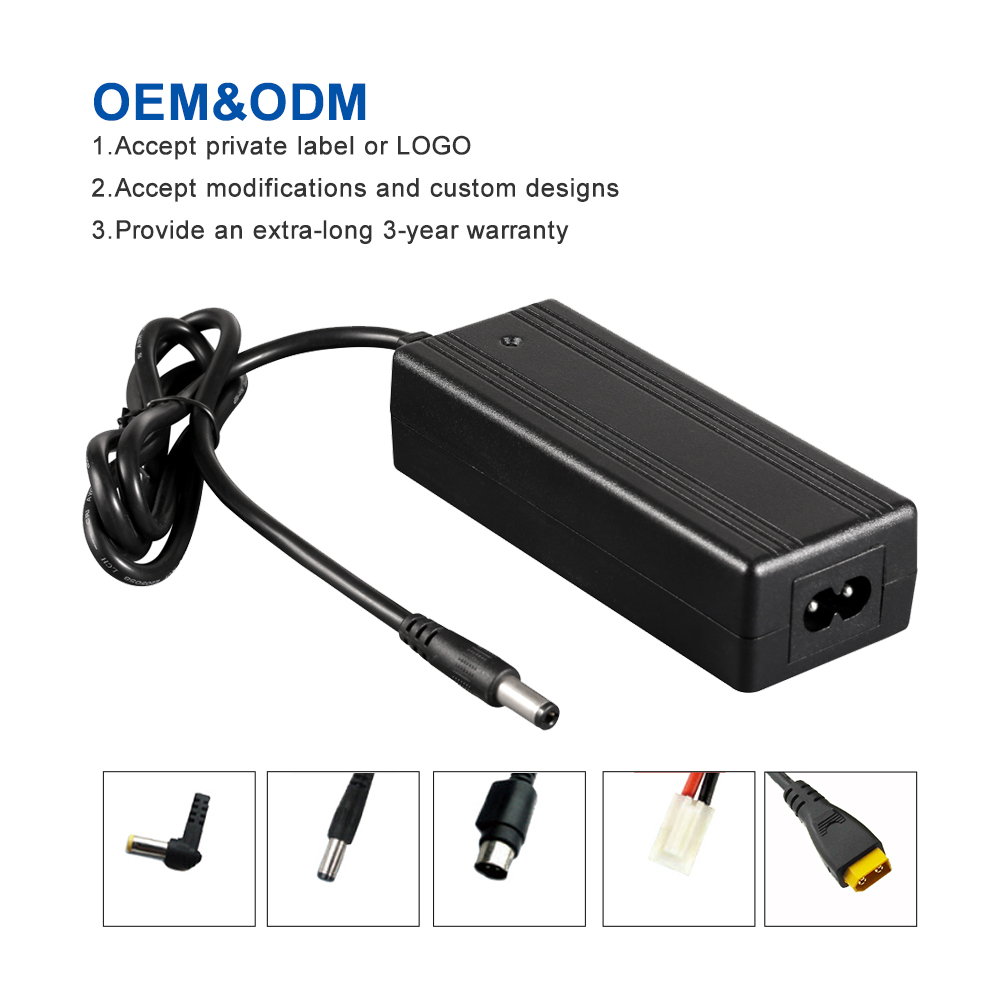

Fuyuan Electronic Co., Ltd accepts OEM and ODM design on this charger, including custom output voltage and current, custom DC connectors, private labeling and LOGO printing. The CNAS-standard EMC laboratory enables pre-compliance testing before formal certification, shortening the development cycle. Units are 100% factory inspected, receive 4-8 hours of full-load burn-in and are covered by a 3-year warranty. MOQ is 100 PCS.
