Fuyuang FY1264000 12.6V 4A 60W Li-ion Battery Charger for 3S 12V Packs, E-bike, Scooter, Robot, Drone and Power Tools

Fuyuang FY1264000 12.6V 4A 60W Li-ion Battery Charger for 3S 12V Packs, E-bike, Scooter, Robot, Drone and Power Tools

Name: Fuyuang FY1264000 12.6V 4A 60W Li-ion Battery Charger for 3S 12V Packs, E-bike, Scooter, Robot, Drone and Power Tools
Brand: Fuyuang
Rating: 5.0 (1 reviews)

The Fuyuang FY1264000 is a 12.6V 4A (60W) desktop charger for 3S 12V lithium-ion packs and the equipment built around them: e-bikes, electric scooters, robots, sweepers, drones, treadmills, balance cars, massage chairs, electric wheelchairs and power tools. A universal 100-240Vac 50/60Hz input lets one model serve worldwide markets. Charging follows a CC/CV profile that holds constant current until the pack reaches its voltage limit, then switches to constant voltage so the battery is not overcharged. Auto-stop, over-voltage, over-current, short-circuit and reverse-polarity protection, plus fuses on both the input and output side, protect charger and battery. The fanless housing cools by free air convection, so there is no fan noise and no dust ingress. Fuyuan Electronic Co., Ltd has manufactured battery chargers and power supplies since 2005, with 108,000 m2 of production space and a CNAS-standard EMC laboratory.

Model:
FY1264000
Brand:
Fuyuang
Code:
FY1264000


Availability:

Product Overview

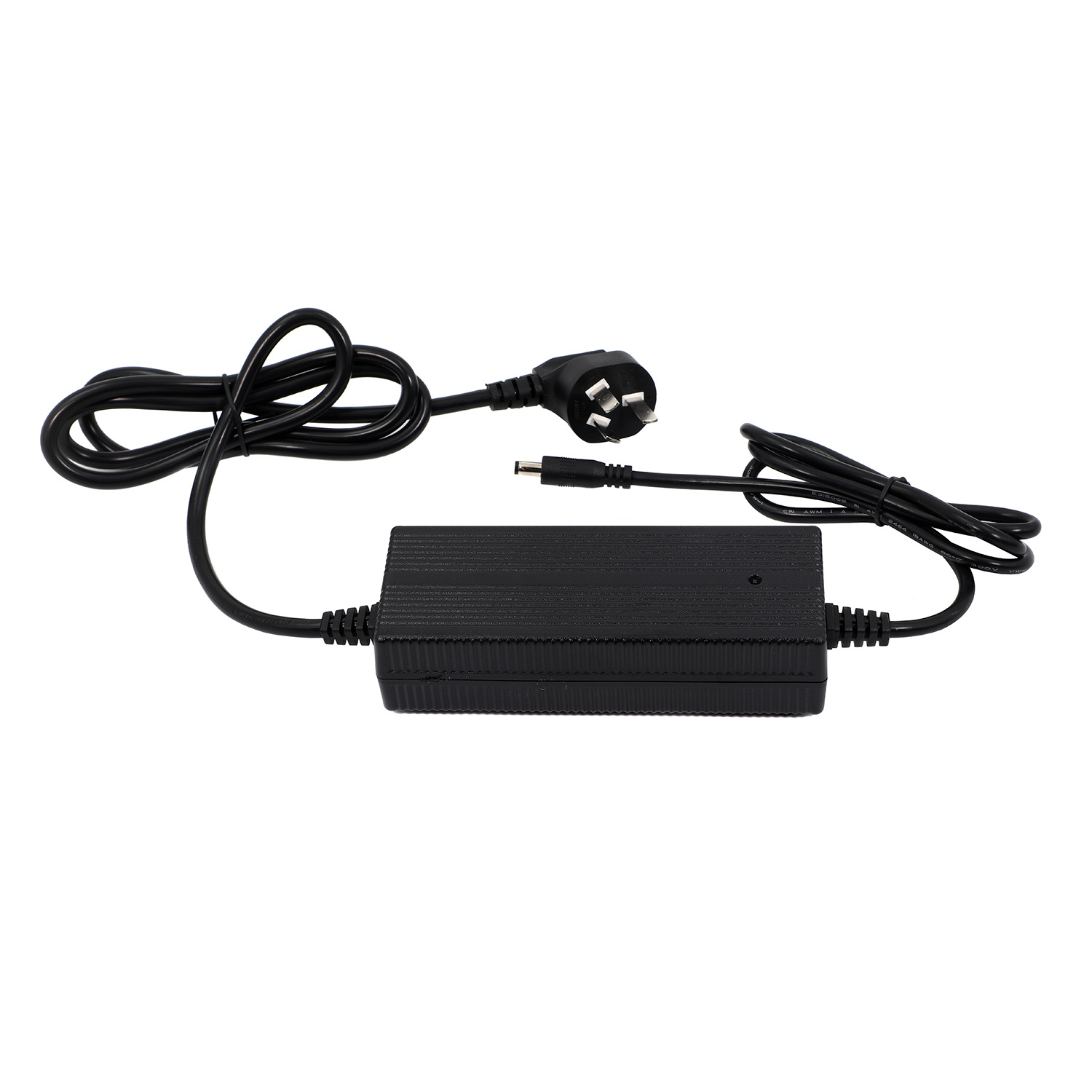

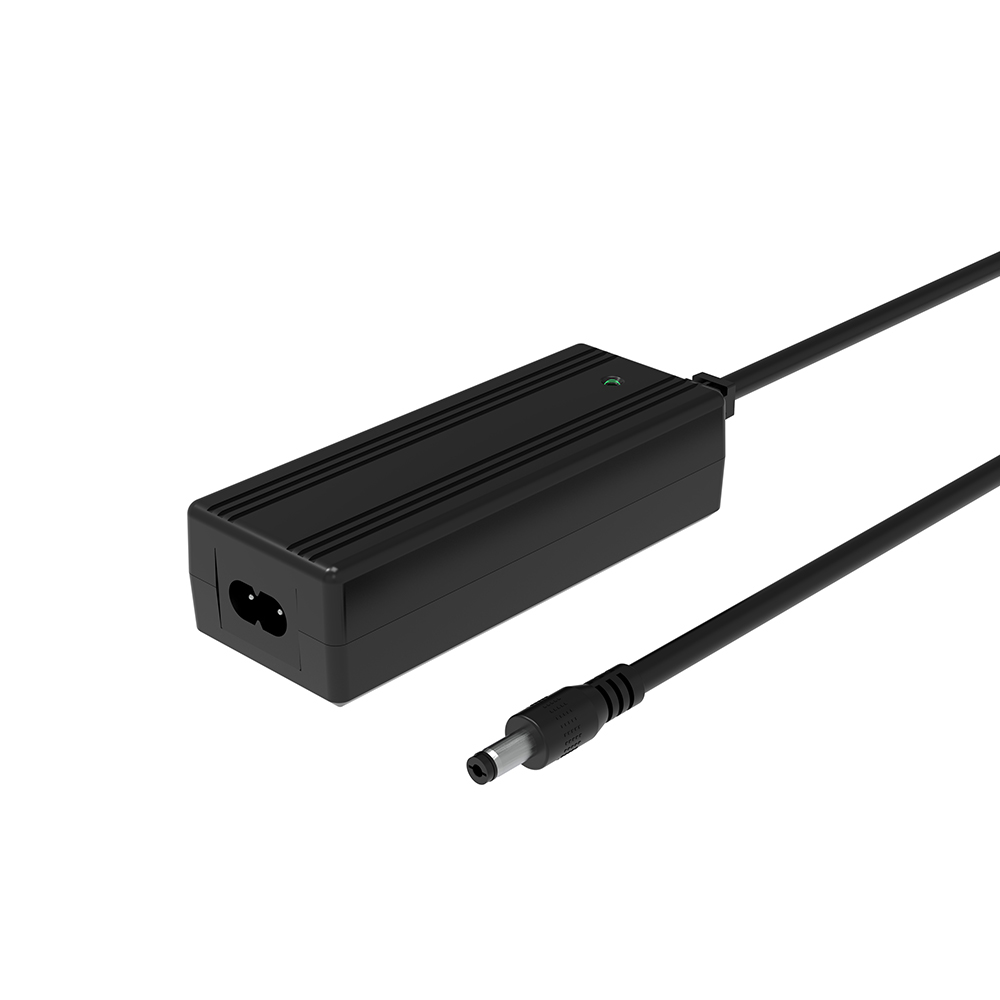

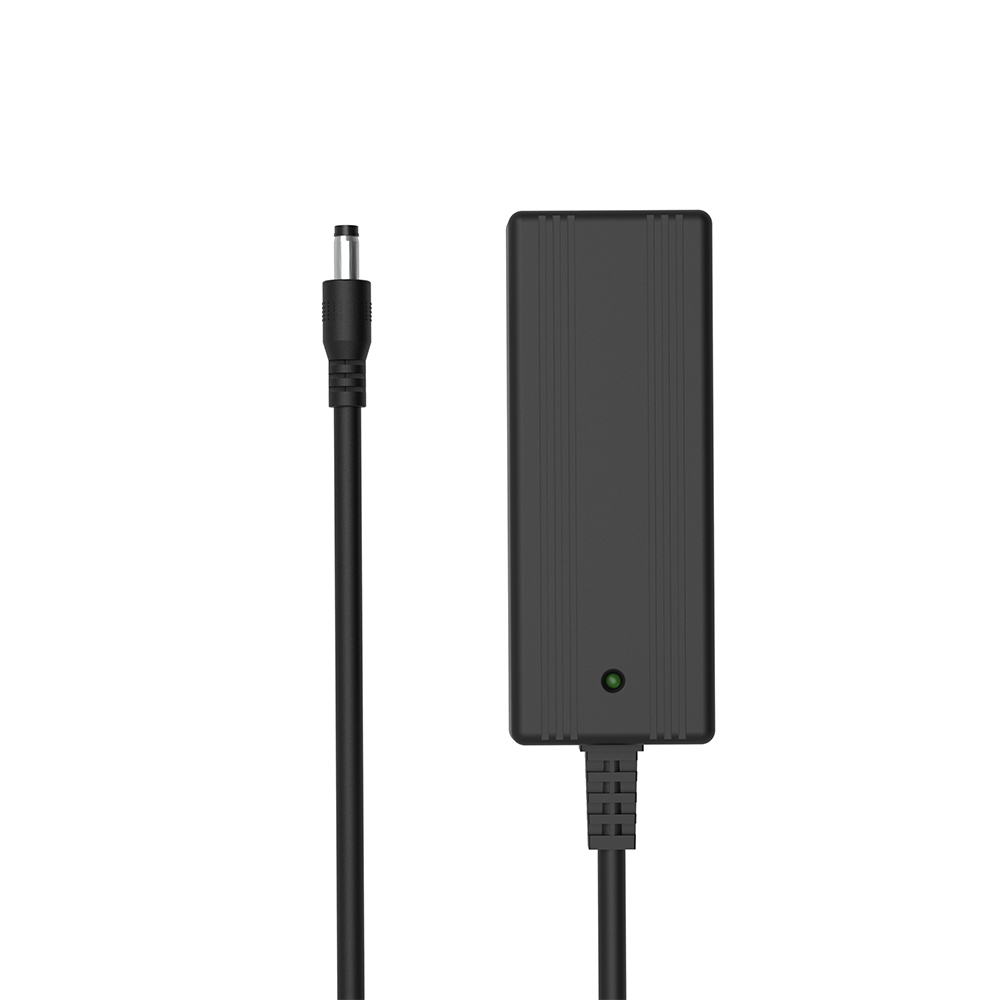

The FY1264000 is a desktop AC/DC lithium battery charger delivering 12.6V 4A (60W) for 3S 12V lithium-ion battery packs. It runs from a universal 100-240Vac 50/60Hz input, so a single model can be shipped to different markets without a voltage change. The CC/CV charging profile, LED status indication and full protection set make it a practical charging solution for e-bikes, scooters, robots, drones, sweepers, electric tools, treadmills, balance cars, massage chairs and wheelchairs.

Key Features

• 12.6V 4A output for 3S 12V lithium-ion battery packs, 60W rated power • Universal 100-240Vac 50/60Hz input for worldwide operation • CC/CV charging mode for safe, complete charging without overcharging • 92% charging efficiency to reduce energy loss and heat • Fanless design cooled by free air convection, low noise, no dust ingress • Auto-stop with over-voltage, over-current and short-circuit protection • Reverse polarity protection plus fuses on both input and output side • LED charging indicator, desktop plastic case, 100-240V/50-60Hz input

Technical Specifications

• Model: FY1264000 • Input: 100-240Vac 50/60Hz • Output: 12.6V 4A • Output power: 60W • Charging mode: CC/CV • Charging efficiency: 92% • Battery type: 3S 12V lithium-ion pack • Housing: plastic case, desktop type, black • Indicator: LED charging status light • Protection: over voltage, over current, short circuit, reverse polarity • Certification: ETL, GS, CE, SAA, PSE, RoHS, REACH • MOQ: 50 PCS

Applications

• Electric bicycles and e-bikes • Electric scooters and balance cars • Service robots, cleaning robots and sweepers • Drones and UAV battery packs • Electrical tools and power tool packs • Treadmills and massage chairs • Electric wheelchairs and golf cars • Cameras and portable equipment

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this charger platform, including custom output voltage and current, DC connector and cable selection, housing colour, indicator behaviour, private labeling, LOGO printing and packaging. Engineering support is backed by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened. Every unit is 100% factory inspected and receives full-load burn-in before packing, and the product is covered by a 3-year warranty. Standard MOQ is 50 PCS.
