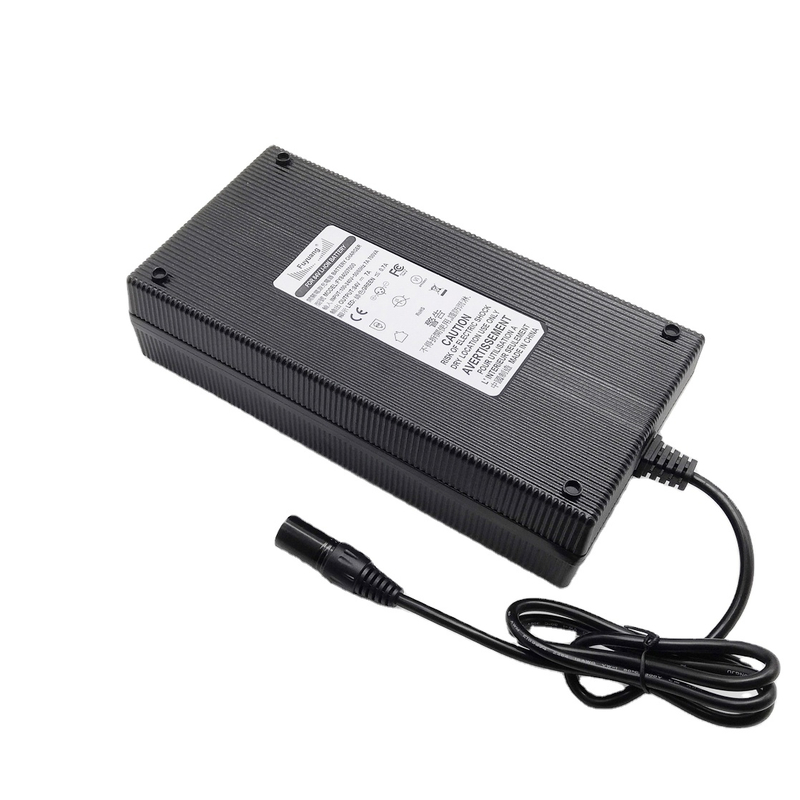

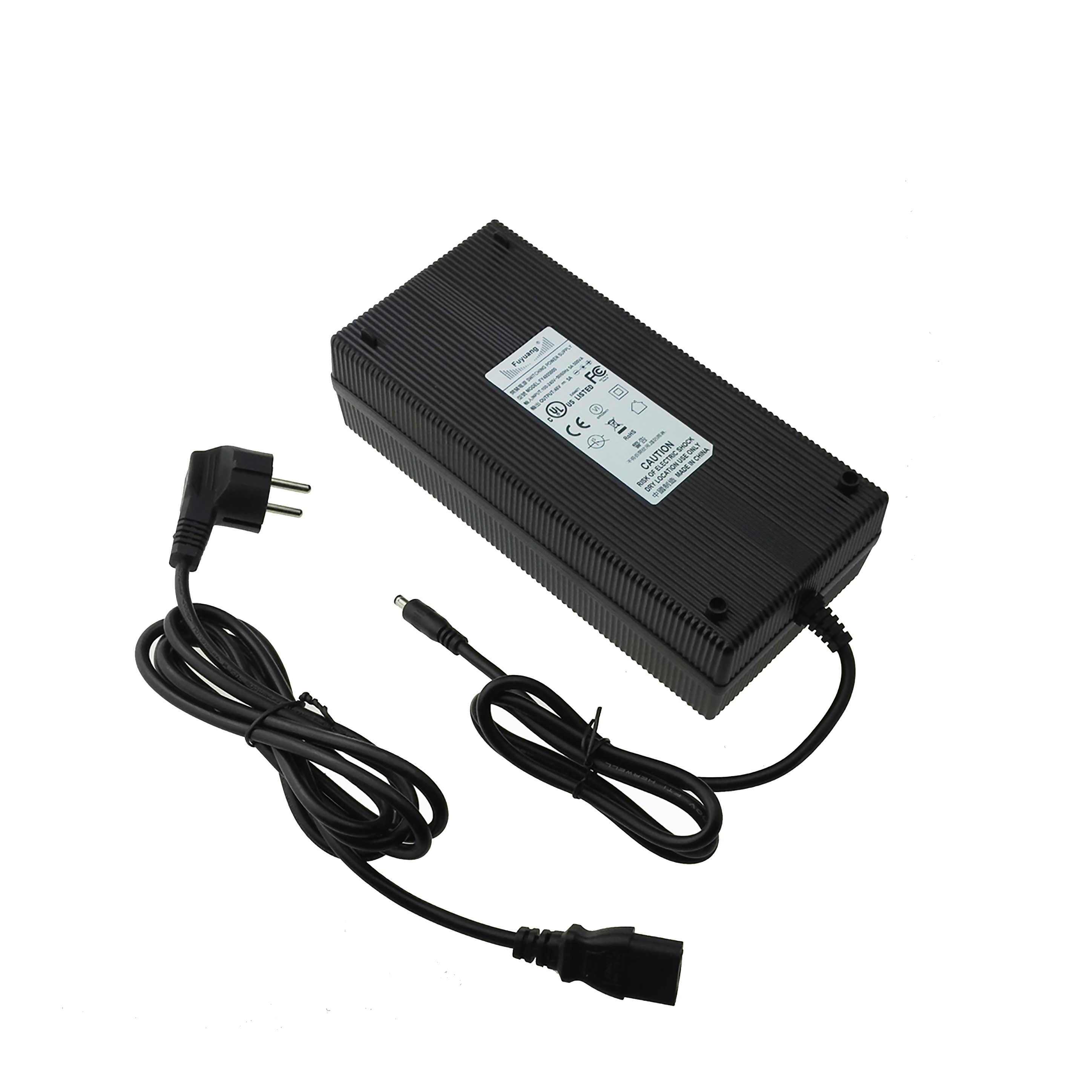

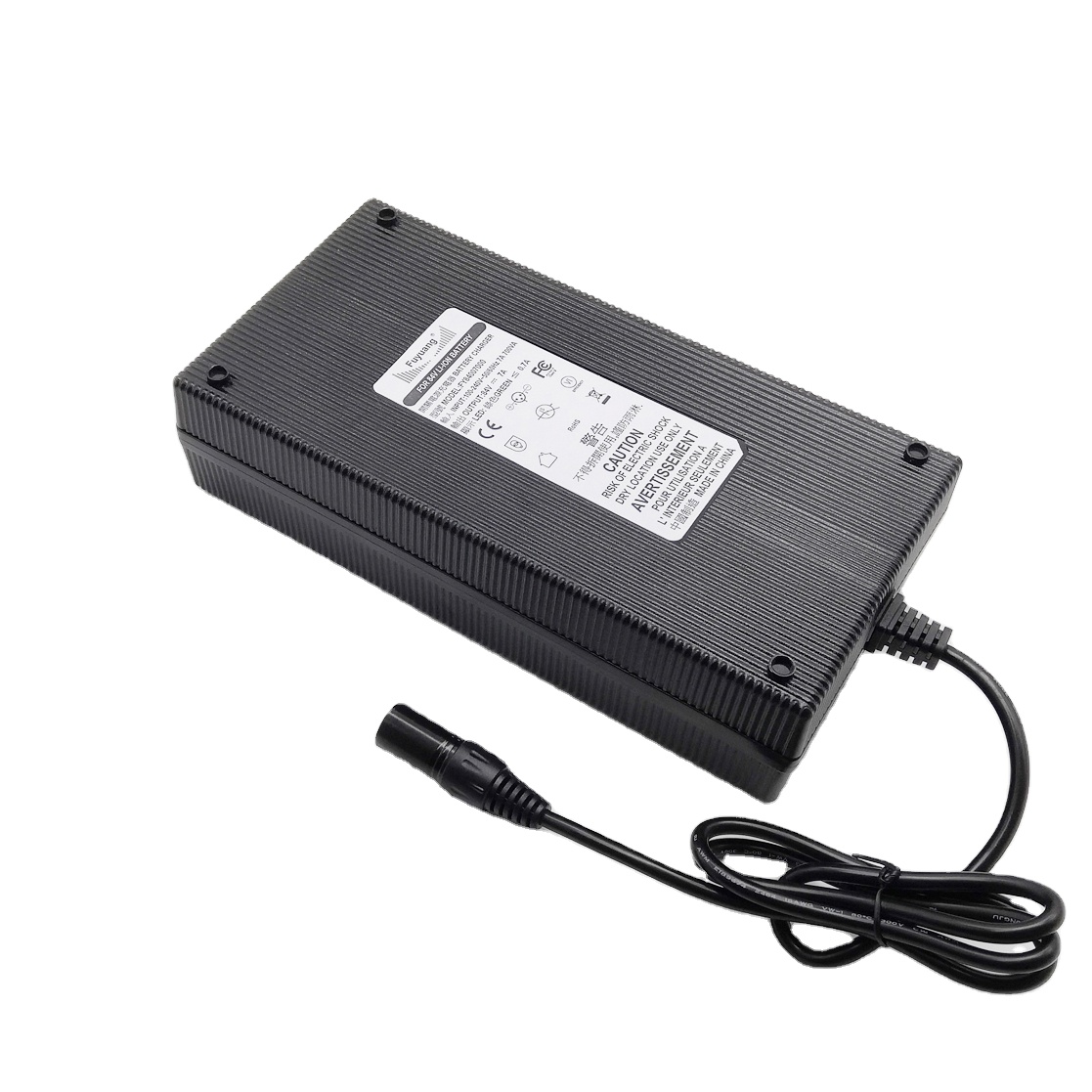

Fuyuang FY29408000 29.4V 4A-12A Robot Battery Charger 120W-360W for Food Delivery and Sweeping Robots

Fuyuang FY29408000 29.4V 4A-12A Robot Battery Charger 120W-360W for Food Delivery and Sweeping Robots

Name: Fuyuang FY29408000 29.4V 4A-12A Robot Battery Charger 120W-360W for Food Delivery and Sweeping Robots
Brand: Fuyuang
Rating: 5.0 (87 reviews)

The Fuyuang FY29408000 is a 29.4V robot battery charger with output options from 4A to 12A and power ratings from 120W to 360W. It fast-charges 24V lithium, lead-acid and LiFePO4 battery packs used in food delivery robots, sweeping robots, lawn mowers and light electric vehicles. Input is 100-240V 50/60Hz, charging efficiency is 90-95%, and MTBF is 30,000 hours. Protection covers short circuit, over-current, over-voltage, overload, reverse polarity and automatic shutdown, with cooling by free air convection and a customized DC connector. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005 with 450 employees and a CNAS-standard EMC laboratory. A 3-year warranty applies.

Model:
FY29408000
Brand:
Fuyuang
Code:
FY29408000


Availability:

Product Overview

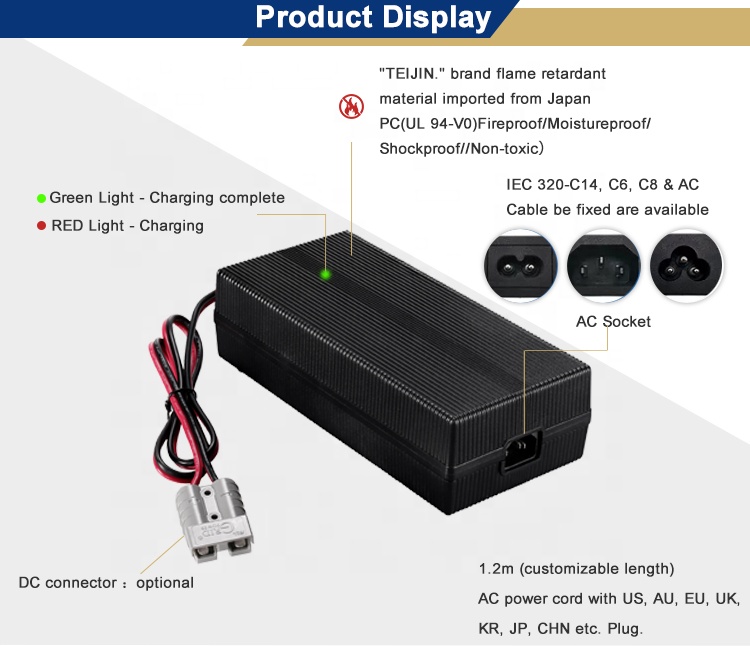

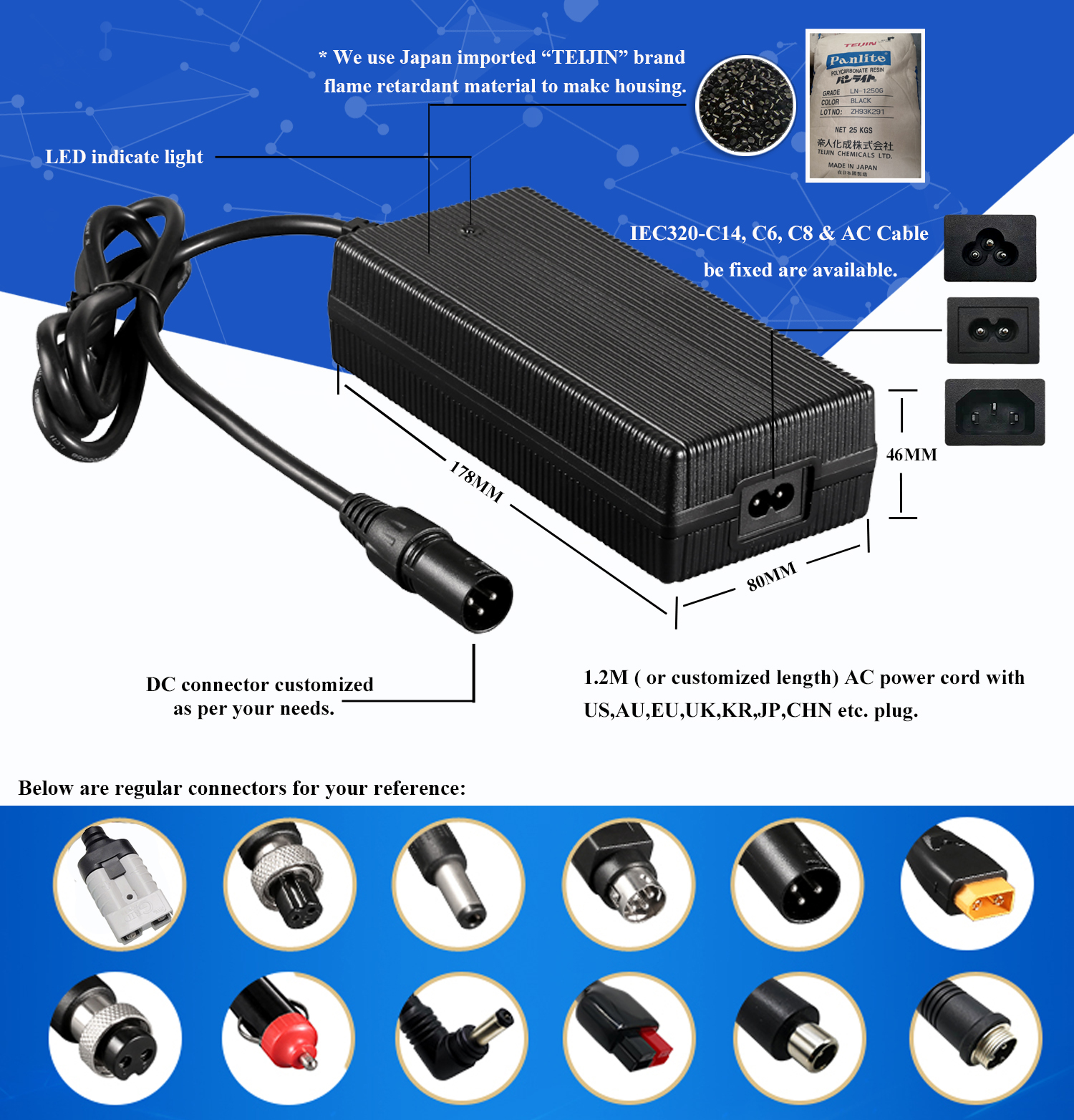

The FY29408000 is a 29.4V robot battery charger with output versions from 4A to 12A and power ratings of 120W to 360W. It is designed for the 24V packs used in food delivery robots, sweeping robots, lawn mowers and similar autonomous equipment. The charger runs on a 100-240V 50/60Hz input with 90-95% charging efficiency and an MTBF of 30,000 hours. Cooling is by free air convection, and the DC connector can be customized to the robot platform.

Key Features

• 29.4V output with 4A to 12A current options, 120W-360W • Fast charging for food delivery robots, sweeping robots and lawn mowers • Charges lithium, lead-acid and LiFePO4 battery packs • 100-240V 50/60Hz universal input • Charging efficiency 90-95%, MTBF 30,000 hours • Reverse polarity protection, automatic shutdown, over-current and over-voltage protection • Free air convection cooling with customized DC connector • OEM/ODM supported

Technical Specifications

• Model: FY29408000 • Product type: robot battery charger • Input: 100-240V, 50/60Hz • Output: 29.4V 4A-12A • Output power: 120W-360W • Battery: lithium / lead-acid / LiFePO4 pack • Charging efficiency: 90-95% • MTBF: 30,000 hours • Cooling: cooling by free air convection • Protection: short circuit, over-current, over-voltage, overload, reverse polarity, automatic shutdown • DC connector: customized • Material: PC fireproof material • Function: fast charger • Warranty: 3 years

Applications

• Food delivery robots • Sweeping and cleaning robots • Lawn mowers and garden robots • Motorcycles and scooters • 24V lithium, lead-acid and LiFePO4 battery packs

Customization & Service

Fuyuan Electronic Co., Ltd offers OEM and ODM services on this robot charger, including custom output voltage and current, customized DC connectors, private labeling and LOGO printing. The CNAS-standard EMC laboratory supports pre-compliance testing so certification can be reached faster. Every charger is 100% factory inspected, receives 4-8 hours of full-load burn-in and carries a 3-year warranty. MOQ is 100 PCS.
