Fuyuang FY546YYYY 54.6V 2A / 3A XLR Lithium Battery Charger for 48V E-bike, Scooter and Mobility Batteries, OEM Custom

Fuyuang FY546YYYY 54.6V 2A / 3A XLR Lithium Battery Charger for 48V E-bike, Scooter and Mobility Batteries, OEM Custom

Name: Fuyuang FY546YYYY 54.6V 2A / 3A XLR Lithium Battery Charger for 48V E-bike, Scooter and Mobility Batteries, OEM Custom
Brand: Fuyuang
Rating: 5.0 (14 reviews)

The Fuyuang FY546YYYY is a 54.6V lithium battery charger for 48V e-bike, scooter and mobility packs, available at 2A or 3A with an XLR output connector or a connector specified by the buyer. Input is 100-240V 50/60Hz, efficiency ranges from 88% to 95%, and a LED indicator shows charging and charge-complete states. A common use is 13S 48V lithium packs, where 54.6V is the full-charge voltage. The charger protects against short circuit, overload, over-voltage and over-temperature, and adds low-tension, over-charging, over-current and over-voltage protection logic. The PC fireproof housing is fanless and cools by air convection, which keeps the unit quiet on residential and mobility applications. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005 with two production bases, 108,000 m2 of floor space and a CNAS-standard EMC laboratory. This charger carries a 3-year warranty.

Model:
FY546YYYY
Brand:
Fuyuang
Code:
FY546YYYY


Availability:

Product Overview

The FY546YYYY charges 48V lithium battery packs at 54.6V, with 2A and 3A current options and a custom setting. It is designed for e-bikes, electric scooters, mobility vehicles and similar equipment that uses an XLR or barrel charging port. Output voltage and current can be tailored to the application, so the same charger body works across different pack capacities and connector standards.

Key Features

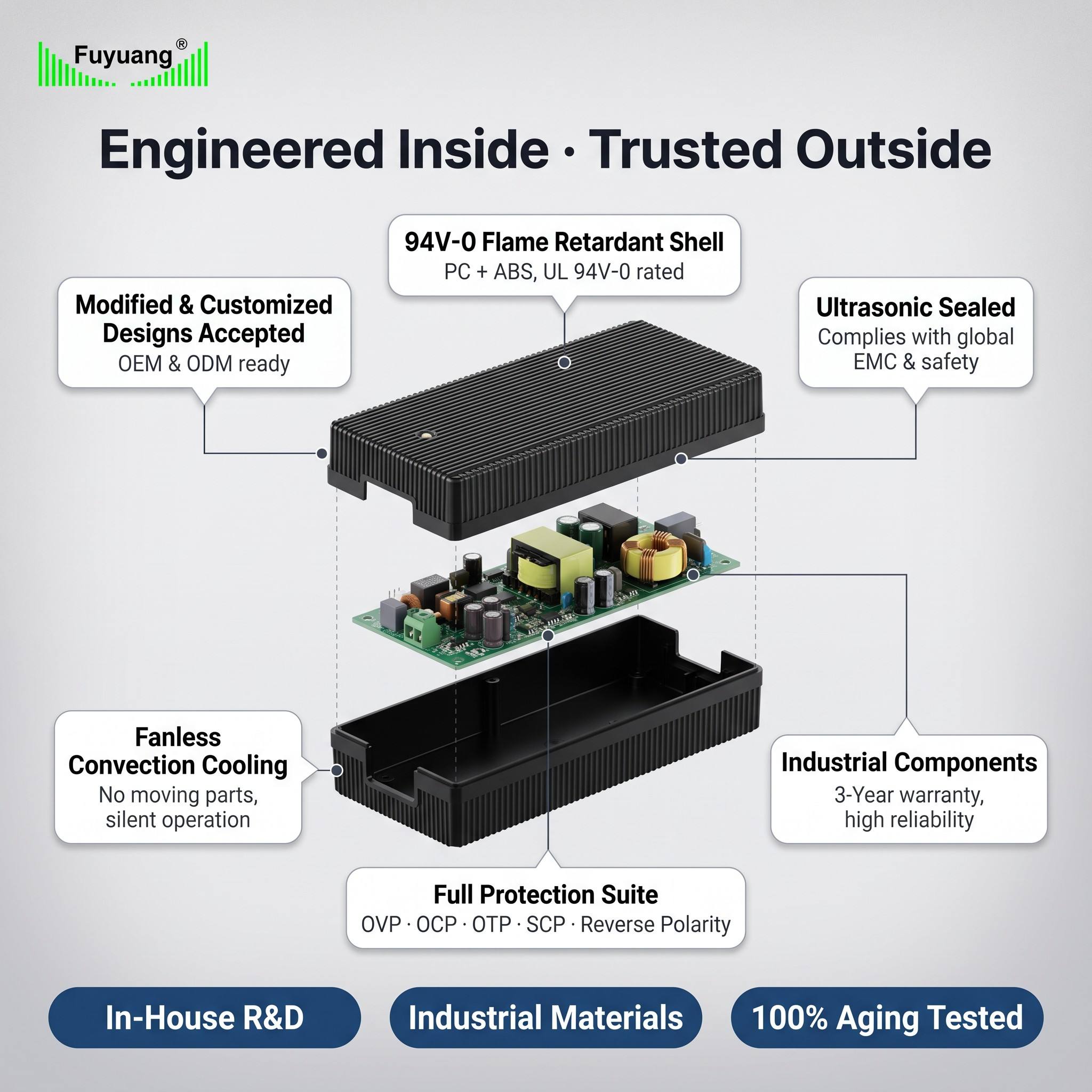

• 54.6V output for 48V (13S) lithium battery packs • Current options of 2A and 3A, plus custom settings • XLR connector by default, DC and AC ports available • 100-240V 50/60Hz universal AC input • Efficiency range of 88% to 95% • Short circuit, overload, over-voltage and over-temperature protection • LED charging indicator, QC3.0 function • Fanless PC fireproof housing, weight 0.78kgs per piece

Technical Specifications

• Model: FY546YYYY • Product name: electric scooter battery charger • Input: 100-240V / 50-60Hz • Output: 54.6V 2A / 3A, custom and 48V configurations • Output power: custom • Efficiency: 88% - 95% • Indicator: LED • Protection: short circuit, overload, over-voltage, over-temperature, low tension, over-charging, over-current • Weight: 0.78kgs per piece, size custom • Color: black, PC fireproof material • Certification: UL, ETL, CE, FCC, TUV-GS, PSE, SAA, KC, CCC, RoHS, REACH • MOQ: 100 PCS

Applications

• Electric bicycles and e-bikes • Electric scooters and mopeds • Mobility scooters and electric wheelchairs • Electric tools and household appliances • Home security and monitoring equipment • Medical devices and industrial equipment • Golf cars and light electric vehicles

Customization & Service

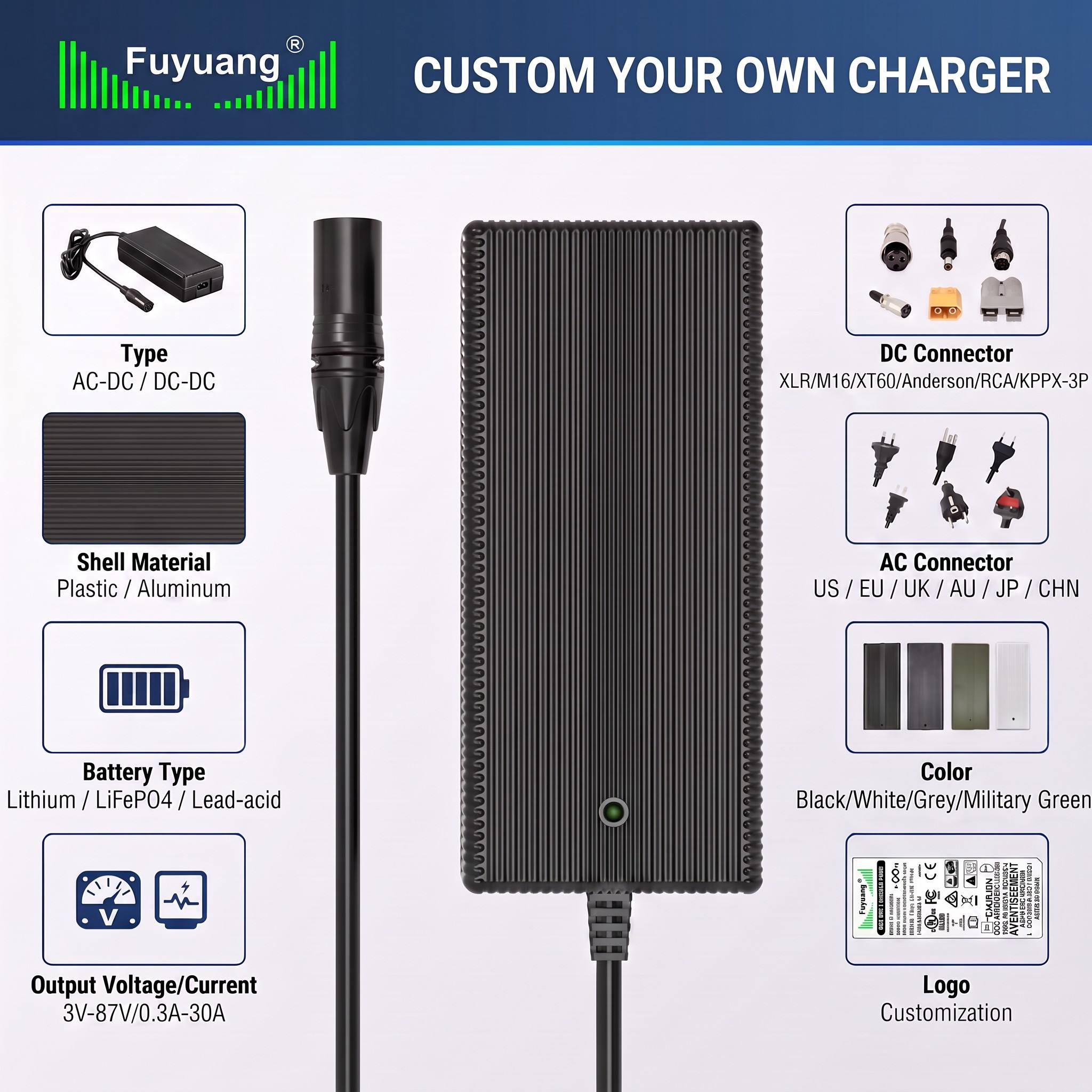

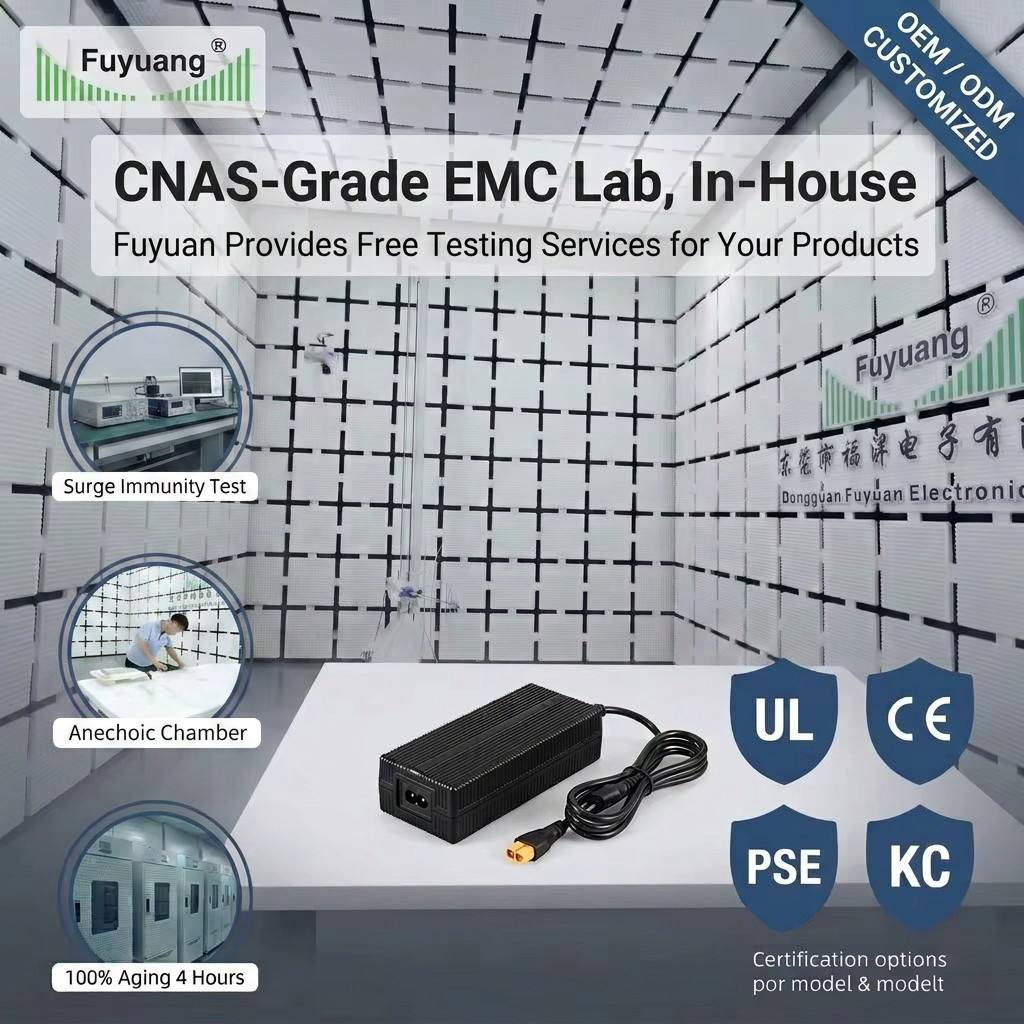

Fuyuan Electronic Co., Ltd accepts OEM and ODM orders on this charger, covering custom output voltage and current, connector type and cable length, housing and colour, private labeling, LOGO printing and packaging. Designs are validated in an in-house CNAS-standard EMC laboratory before certification, and the factory is certified to ISO9001, ISO14001 and QC080000. Every unit receives full-load burn-in and 100% factory inspection, and the charger carries a 3-year warranty. Standard MOQ is 100 PCS.
