Fuyuang FY4204000 42V 4A / 54.6V 3.5A / 67.2V 3A Li-ion Battery Charger for 36V, 48V and 60V E-bike and Scooter Packs

Fuyuang FY4204000 42V 4A / 54.6V 3.5A / 67.2V 3A Li-ion Battery Charger for 36V, 48V and 60V E-bike and Scooter Packs

Name: Fuyuang FY4204000 42V 4A / 54.6V 3.5A / 67.2V 3A Li-ion Battery Charger for 36V, 48V and 60V E-bike and Scooter Packs
Brand: Fuyuang
Rating: 5.0 (15 reviews)

The Fuyuang FY4204000 is a Li-ion battery charger that covers 36V, 48V and 60V e-bike and scooter packs with 42V 4A, 54.6V 3.5A, 58.8V 3A and 67.2V 3A output settings, and full custom options. It runs from 100-240V 50/60Hz and charges at 92% efficiency in a private mold housing measuring 178*80*46MM and weighing 0.78kg per piece. Charging is CC-CV floating charge with cut-off, so the pack is brought to full charge and then isolated rather than held at voltage. Protection includes short circuit, overload, over-voltage, over-temperature, low tension, over-charging, over-current and over-voltage protection, with a LED indicator reporting status. Fuyuan Electronic Co., Ltd has manufactured battery chargers since 2005 and operates 108,000 m2 of production space with a CNAS-standard EMC laboratory. This charger is certified to UL, FCC, cUL, CE, RoHS, CB, GS, SAA, RCM, PSE, CCC, KC and KCC and carries a 3-year warranty.

Model:
FY4204000
Brand:
Fuyuang
Code:
FY4204000


Availability:

Product Overview

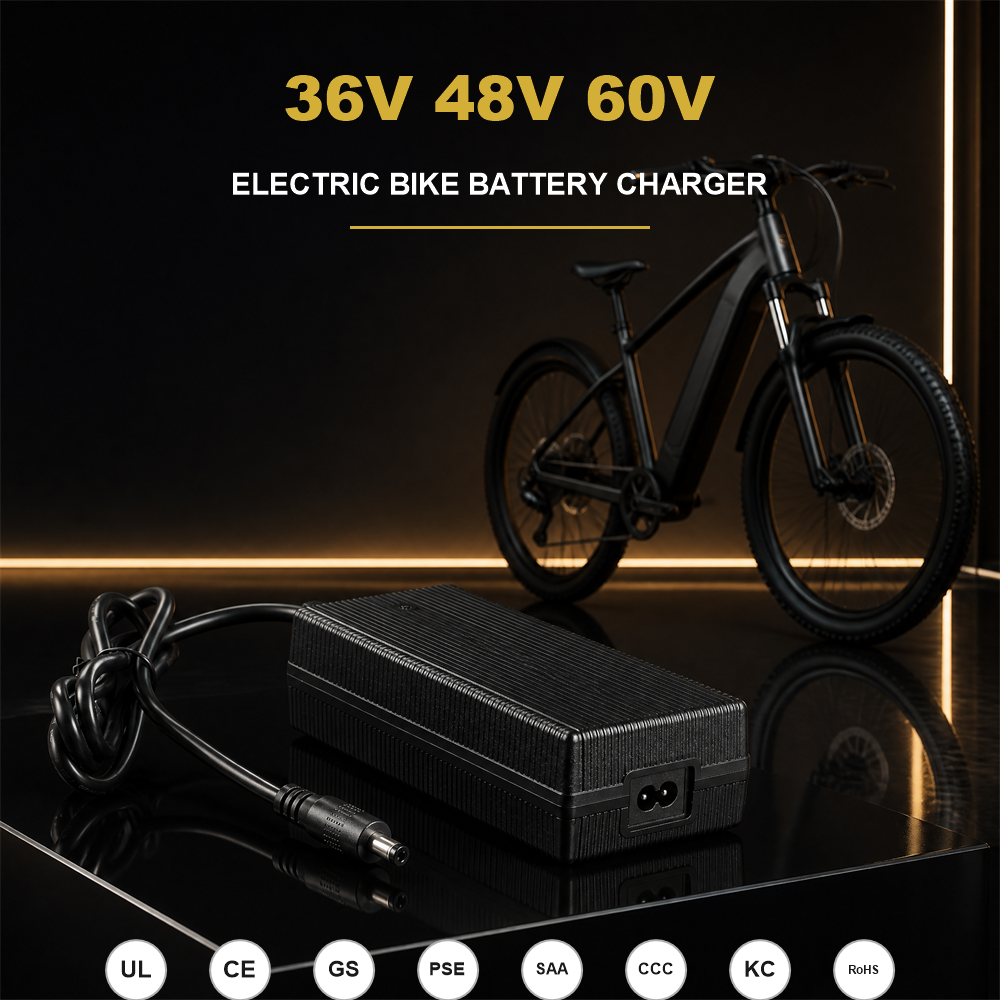

The FY4204000 is a multi-voltage e-bike and scooter charger offering 42V 4A, 54.6V 3.5A, 58.8V 3A and 67.2V 3A settings, which cover 10S 36V, 13S 48V and 16S 60V lithium packs. Custom output values can be supplied where a project uses a different configuration. The 100-240V 50/60Hz input and 92% efficiency make the unit suitable for daily charging in home, shop and fleet environments.

Key Features

• Outputs of 42V 4A, 54.6V 3.5A, 58.8V 3A and 67.2V 3A with custom options • Covers 36V, 48V and 60V lithium battery packs • 100-240V / 50-60Hz universal AC input • CC-CV floating charge mode with cut-off • Charging efficiency of 92% • Short circuit, overload, over-voltage and over-temperature protection • Low tension, over-charging, over-current and over-voltage protection logic • Private mold housing, 178*80*46MM, 0.78kg per piece

Technical Specifications

• Model: FY4204000 • Input: 100-240V / 50-60Hz • Output: 42V 4A / 54.6V 3.5A / 58.8V 3A / 67.2V 3A, customized • Output power: customized • Charge mode: CC-CV-floating charge / cut off • Efficiency: 92% • Size: 178*80*46MM, weight 0.78kg per piece • Color: black or customized, PC fireproof material • Ports: DC output, AC input • Certificates: UL, FCC, cUL, CE, RoHS, CB, GS, SAA, RCM, PSE, CCC, KC, KCC • MOQ: 100 PCS

Applications

• Electric bicycles and e-bike packs • Electric scooters and mopeds • 36V, 48V and 60V lithium battery packs • Electric tools and household appliances • Industrial equipment and mobility devices • Home security and monitoring systems

Customization & Service

The charger is made in a private mold and supports modified and customised designs: output voltage and current, DC connector, cable length, housing colour, private labeling, LOGO printing and packaging. Input and output fuses provide double-layer safety, and optional features include reverse-polarity protection, timing protection, anti-spark, pre-charging and automatic shut-off. Fuyuan Electronic Co., Ltd runs a 4-hour full load ageing test on each charger and 100% inspects every unit. The product carries a 3-year warranty with 5-year maintenance support. Standard MOQ is 100 PCS.
