Fuyuang FY4202000 42V 2A Universal Li-ion Battery Charger for 36V E-bike and Scooter Packs, UL CE GS UKCA SAA RCM Certified

Fuyuang FY4202000 42V 2A Universal Li-ion Battery Charger for 36V E-bike and Scooter Packs, UL CE GS UKCA SAA RCM Certified

Name: Fuyuang FY4202000 42V 2A Universal Li-ion Battery Charger for 36V E-bike and Scooter Packs, UL CE GS UKCA SAA RCM Certified
Brand: Fuyuang
Rating: 5.0 (20 reviews)

The Fuyuang FY4202000 universal battery charger outputs 42V 2A for 36V lithium-ion packs used on e-bikes, electric scooters, industrial equipment, medical devices and household appliances. It runs from 100-240V 50-60Hz and charges at 90% efficiency. Charging follows a CC-CV floating profile with cut-off, and protection covers short circuit, overload, over-voltage, over-temperature, low tension, over-charging, over-current and over-voltage. The unit is made in a private mold with a PC fireproof housing, measures 133*58*31MM and weighs 0.40kg per piece. Fuyuan Electronic Co., Ltd has manufactured battery chargers since 2005, with two production bases and 108,000 m2 of floor space, 450 employees, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This charger holds UL, FCC, cUL, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, CCC, KC and KCC approvals and carries a 3-year warranty.

Model:
FY4202000
Brand:
Fuyuang
Code:
FY4202000


Availability:

Product Overview

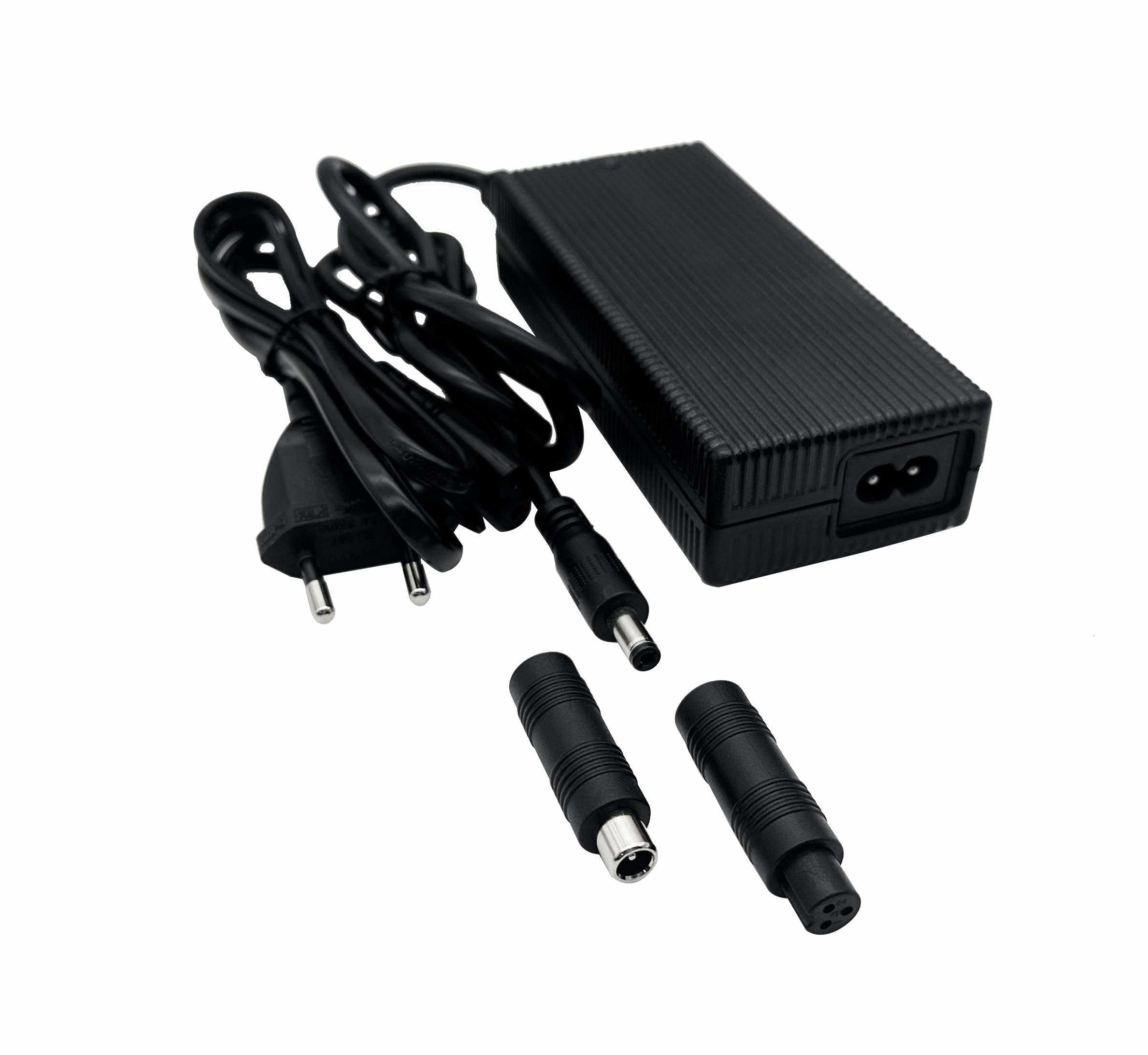

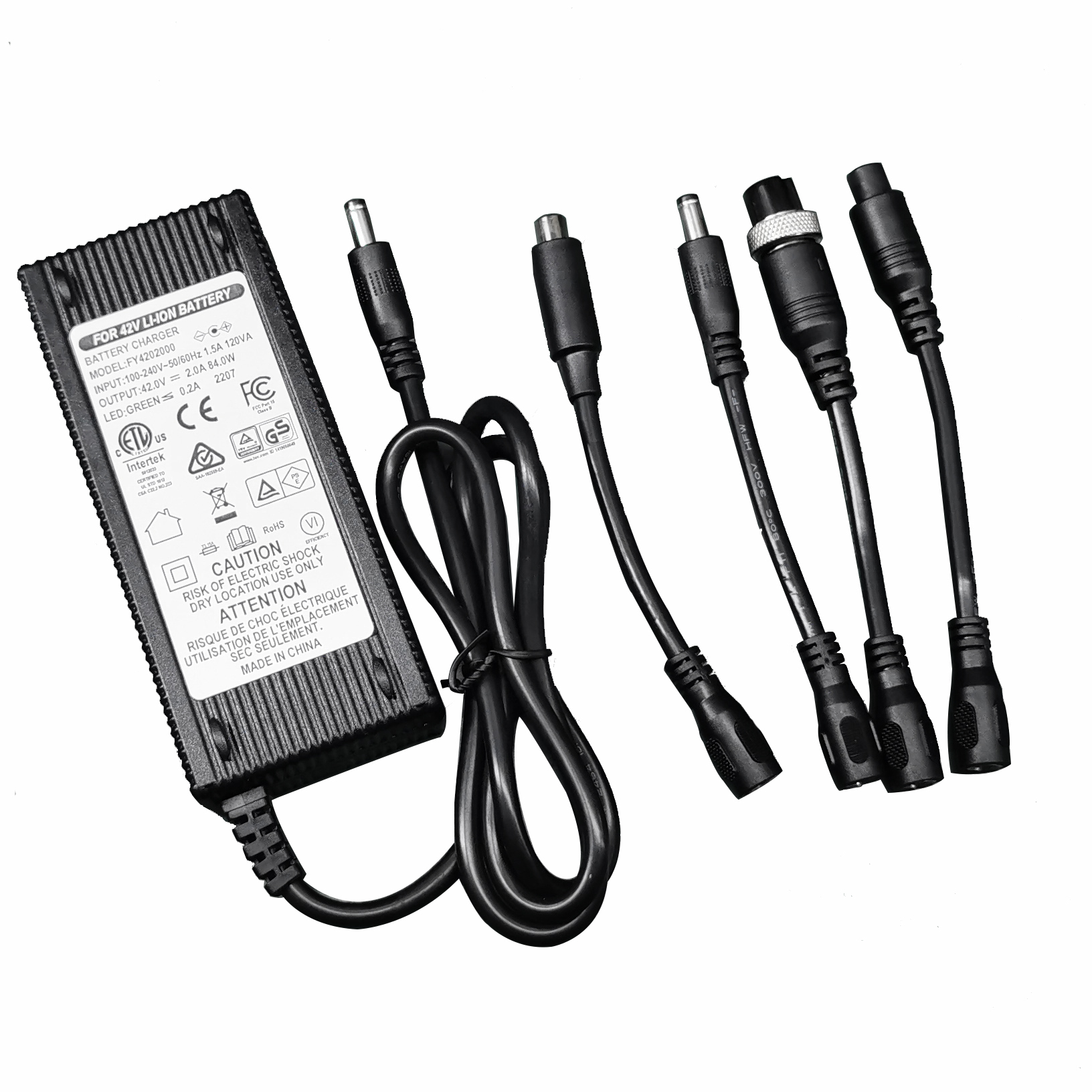

The FY4202000 is a universal 42V 2A charger for 36V lithium-ion battery packs. It is used on e-bikes, electric scooters, industrial machines, medical devices, home security equipment and household appliances that charge from a 42V DC supply. A 100-240V 50/60Hz input covers both 110V and 230V markets, and the compact 133*58*31MM body weighs only 0.40kg.

Key Features

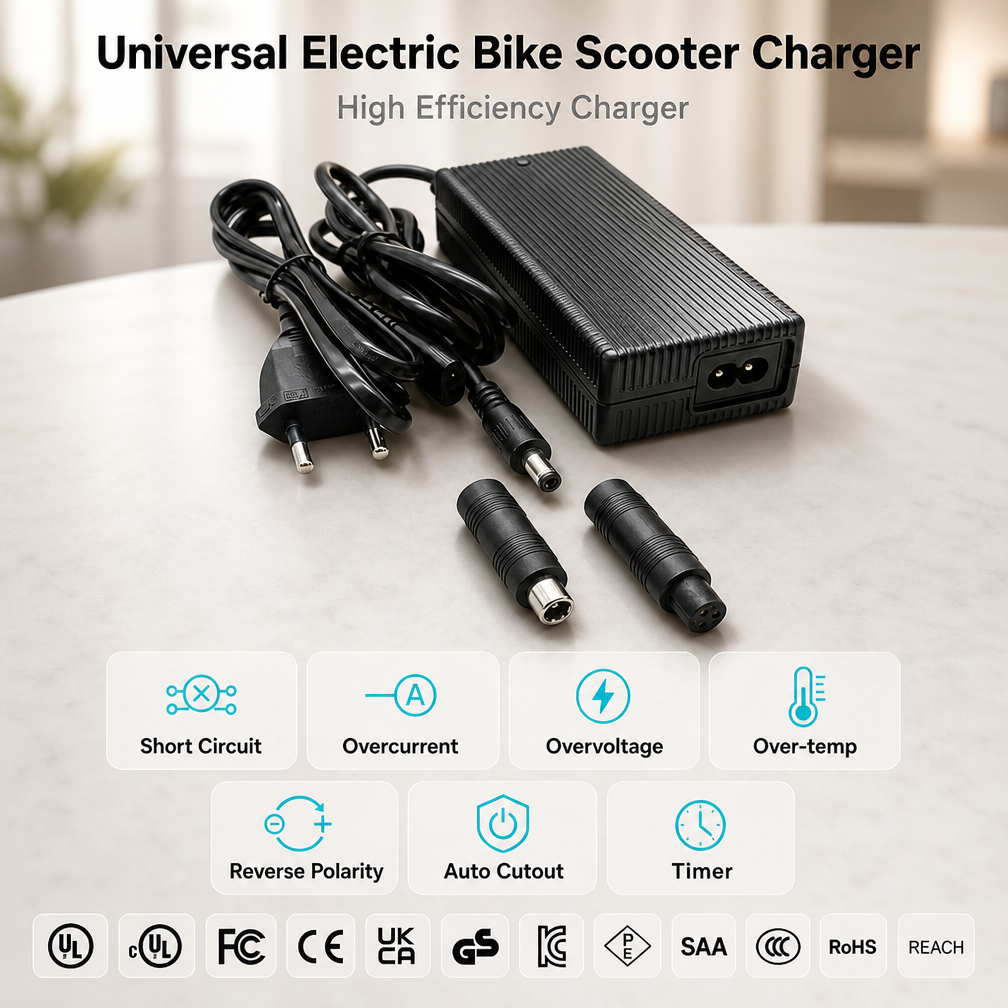

• 42V 2A output for 36V (10S) lithium-ion battery packs • Universal 100-240V / 50-60Hz AC input • Charging efficiency of 90% • CC-CV floating charge mode with cut-off • Short circuit, overload, over-voltage and over-temperature protection • Over-charging, over-current and low tension protection logic • Private mold design with PC fireproof housing, 0.40kg per piece • UL, FCC, cUL, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, CCC, KC and KCC approvals

Technical Specifications

• Model: FY4202000 • Product name: 42V 2A universal electric bike and scooter charger • Input: 100-240V / 50-60Hz • Output: 42V 2A, customized available • Output power: customized • Efficiency: 90% • Charge mode: CC-CV-floating charge / cut off • Size: 133*58*31MM, weight 0.40kg per piece • Ports: DC output, AC input, color black or customized • Certificates: UL, FCC, cUL, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, CCC, KC, KCC • MOQ: 100 PCS

Applications

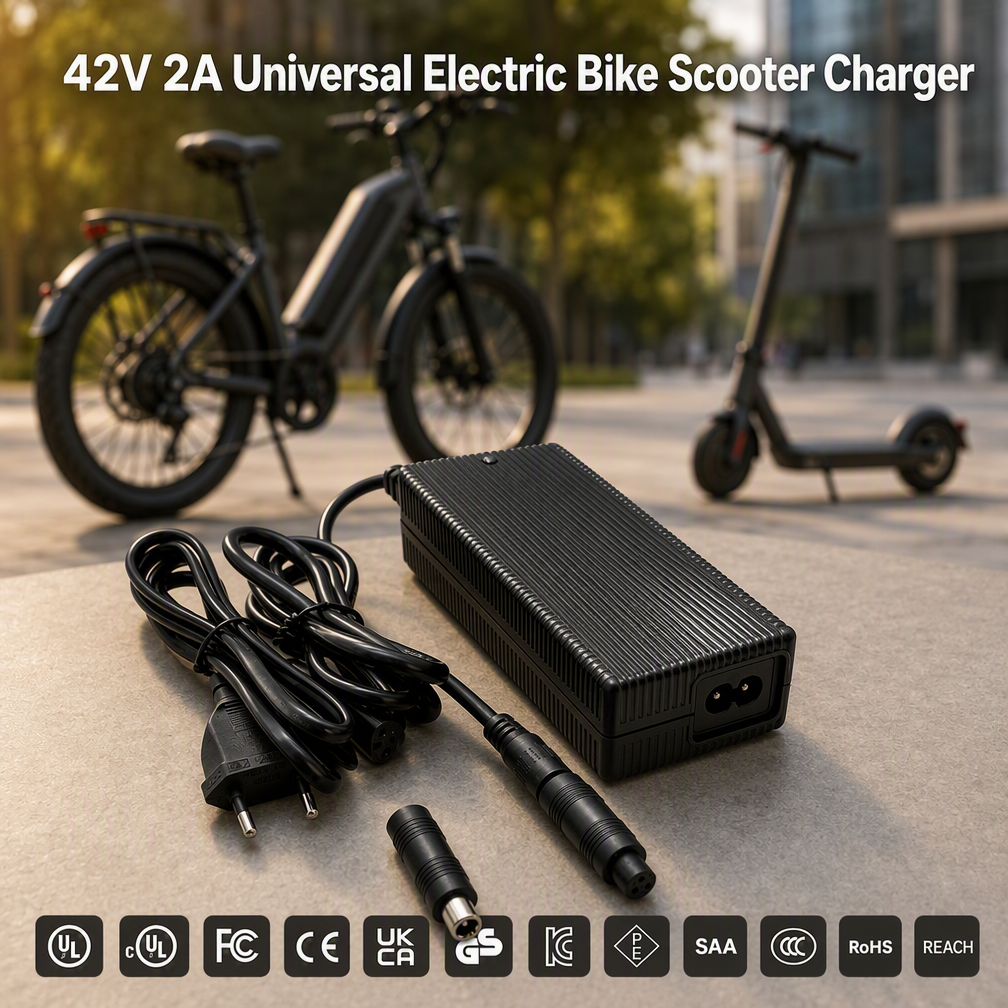

• Electric bicycles and e-bike packs • Electric scooters and mopeds • Electric tools and industrial equipment • Medical devices and mobility equipment • Home security systems and household appliances • Battery pack service and replacement

Customization & Service

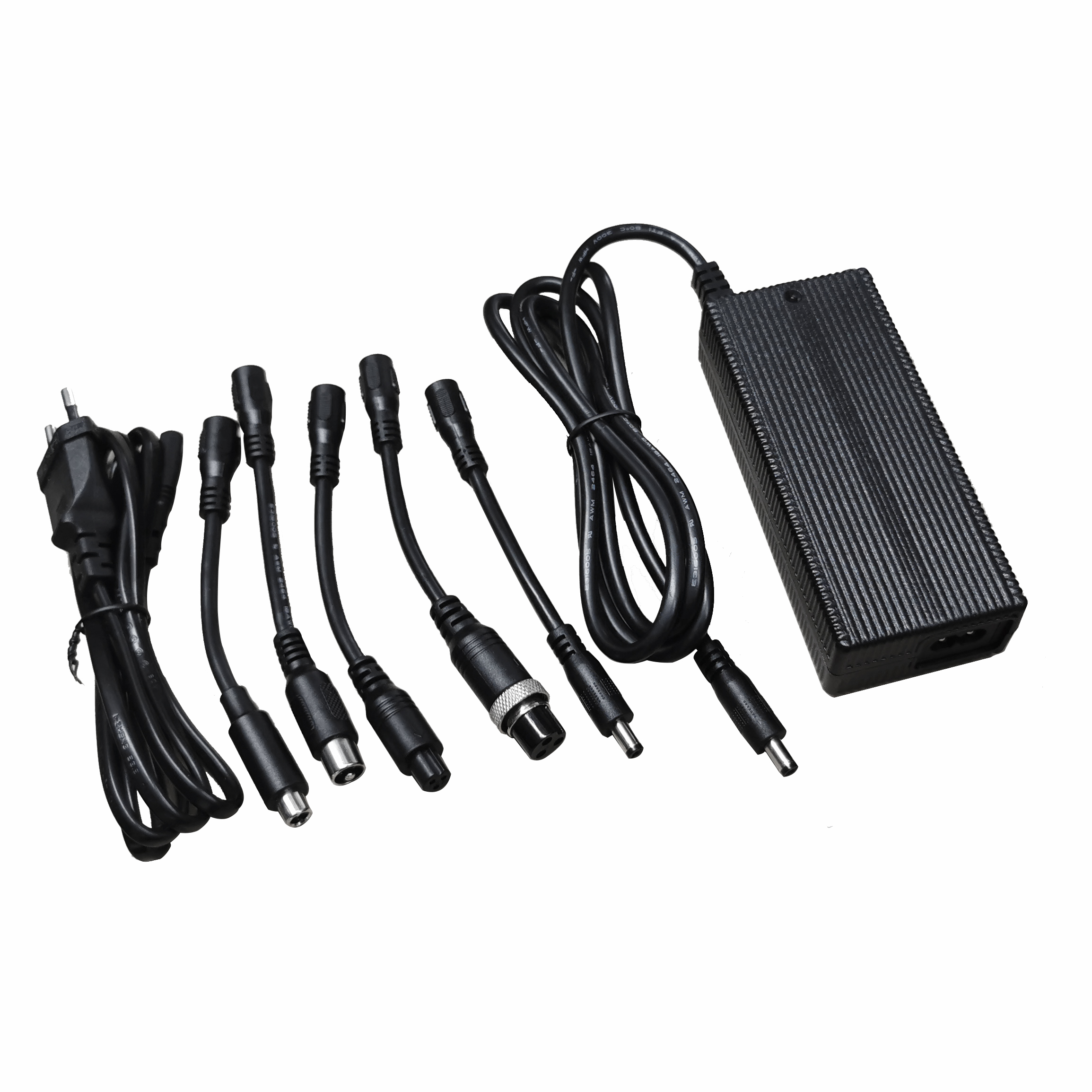

The charger is made in a private mold and accepts modified and customised designs, including output voltage and current, DC connector, cable length, housing colour, private labeling, LOGO printing and packaging. Input and output fuses protect against over-current and short-circuit faults, with optional reverse-polarity protection, timing protection, anti-spark, pre-charging and automatic shut-off. Every charger completes a 4-hour full load ageing test and 100% factory inspection, and carries a 3-year warranty with 5-year maintenance support. Standard MOQ is 100 PCS.
