Fuyuang FY4202000 42V 2A Universal E-scooter Battery Charger for 36V Li-ion Packs with Custom Connectors

Fuyuang FY4202000 42V 2A Universal E-scooter Battery Charger for 36V Li-ion Packs with Custom Connectors

Name: Fuyuang FY4202000 42V 2A Universal E-scooter Battery Charger for 36V Li-ion Packs with Custom Connectors
Brand: Fuyuang
Rating: 5.0 (84 reviews)

The Fuyuang FY4202000 is a universal 42V 2A charger for 36V Li-ion battery packs on e-scooters and e-bikes. It pairs a 100-240V 50-60Hz input with a CC-CV-floating charge profile and cut-off at end of charge, and the DC connector is specified to suit the customer harness, including RCA, XLR and GX16 options. The charger reaches 90% efficiency and carries short circuit, overload, over-voltage and over-temperature protection. Its PC fireproof housing measures 133*58*31mm and weighs 0.40KG, so it fits into a bike bag or a small on-board compartment. Black is standard and other colours can be specified. The charger is manufactured by Fuyuan Electronic Co., Ltd (Fuyuang), a power supply manufacturer founded in 2005 with two production bases in Dongguan and Yongzhou, 108,000 m2 of factory space and 450 employees. More than 3,000 models have been developed across a 60W to 10KW range, and every unit ships with a 3-year warranty.

Model:
FY4202000
Brand:
Fuyuang
Code:
FY4202000


Availability:

Product Overview

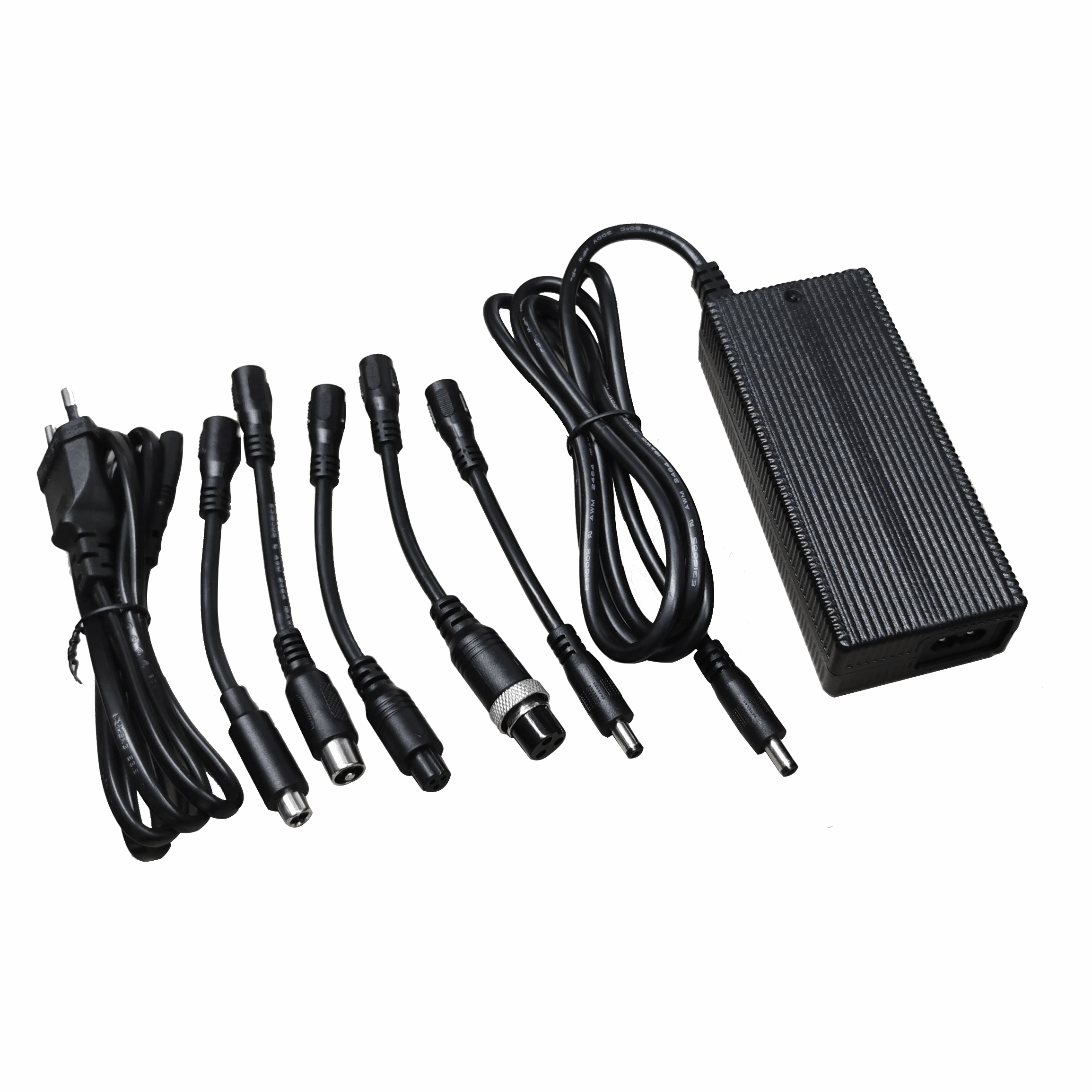

The FY4202000 is a universal 42V 2A charger for 36V Li-ion e-scooter and e-bike battery packs, supplied with a choice of DC connectors including RCA, XLR and GX16. The CC-CV-floating charge profile cuts off at end of charge, and the compact fanless-fireproof enclosure measures 133*58*31mm at 0.40KG so it can travel with the vehicle.

Key Features

• Universal 42V 2A charging for 36V Li-ion e-scooter and e-bike packs • DC connector specified to the customer harness, including RCA, XLR and GX16 options • CC-CV-floating charge mode with cut-off at end of charge • 90% efficiency • Short circuit, overload, over-voltage and over-temperature protection • Compact PC fireproof housing, 133*58*31mm, 0.40KG • Black as standard, other colours on request • 100-240V 50-60Hz input with a wide certification set for global markets

Technical Specifications

• Model: FY4202000 • Input: 100-240V, 50-60Hz • Output: 42V 2A (customizable) • Charge mode: CC-CV-floating charge / cut off • Efficiency: 90% • Protection: short circuit, overload, over-voltage, over-temperature • Connector: RCA / XLR / GX16 and custom options • Dimensions: 133*58*31mm • Weight: 0.40KG per piece • Housing material: PC fireproof material, black or customized colour • Certification: UL, FCC, cUL, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, CCC, KC, KCC • MOQ: 100 PCS

Applications

• Electric scooters • Electric bikes • 36V lithium battery packs • Portable power stations • Electric tools • Smart watch and small device charging

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on the FY4202000 platform. Output voltage and current, AC and DC connectors, cable length, housing, labelling and LOGO printing can all be customized. Engineering work is supported by a CNAS-standard EMC laboratory and an in-house RoHS testing room, so compliance can be screened before formal certification and custom development can be completed in as little as 10 days. This is a private-mould design. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Certifications available for this platform: UL, FCC, cUL, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, CCC, KC, KCC.
