Fuyuang FY4202000 42V 2A E-bike Charger for 36V Lithium Battery with RCA / XLR / GX16 Connector Options

Fuyuang FY4202000 42V 2A E-bike Charger for 36V Lithium Battery with RCA / XLR / GX16 Connector Options

Name: Fuyuang FY4202000 42V 2A E-bike Charger for 36V Lithium Battery with RCA / XLR / GX16 Connector Options
Brand: Fuyuang
Rating: 5.0 (10 reviews)

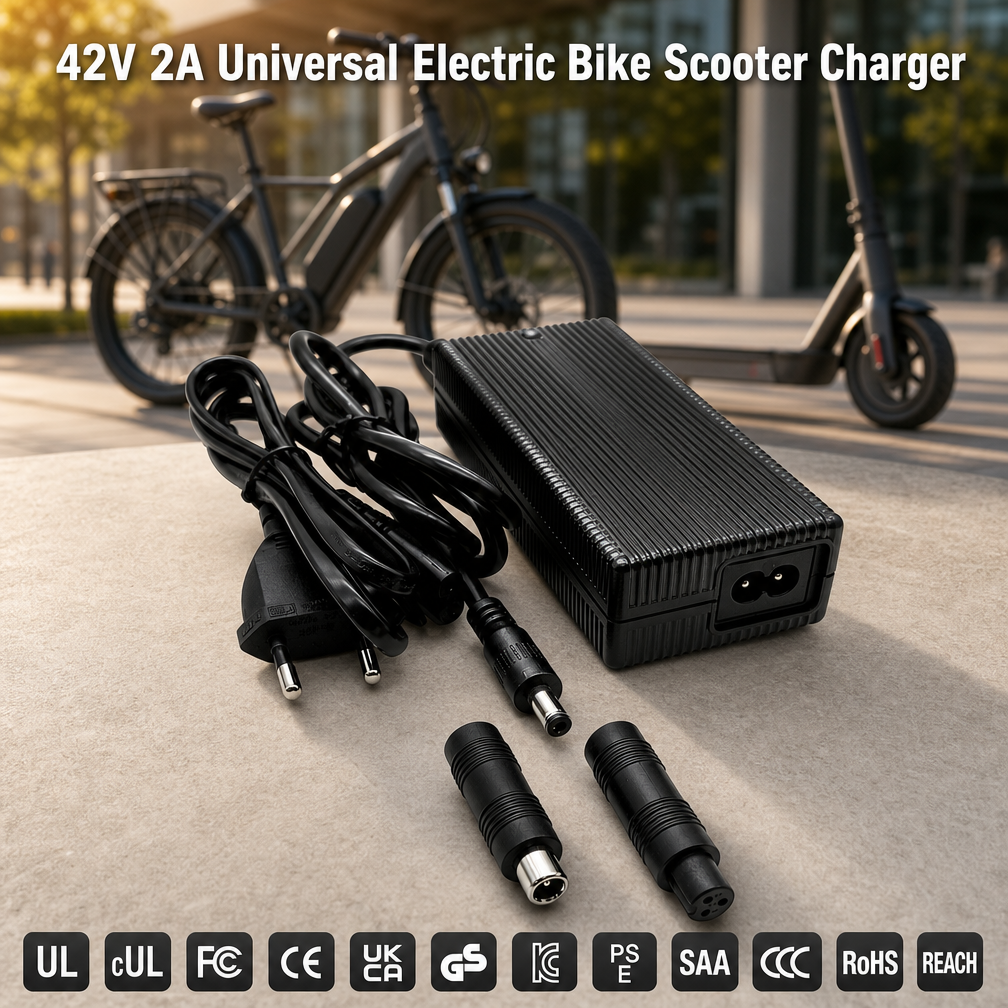

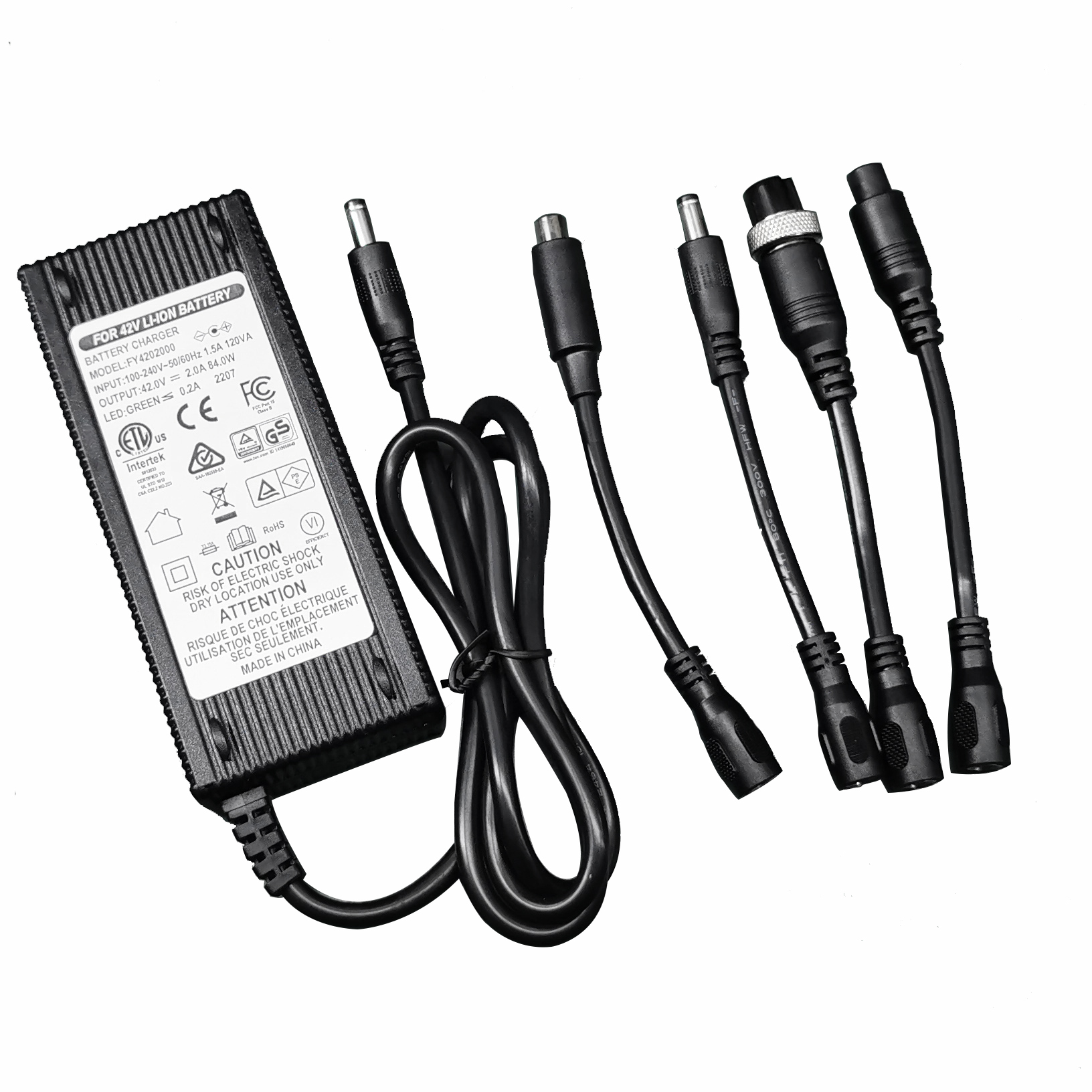

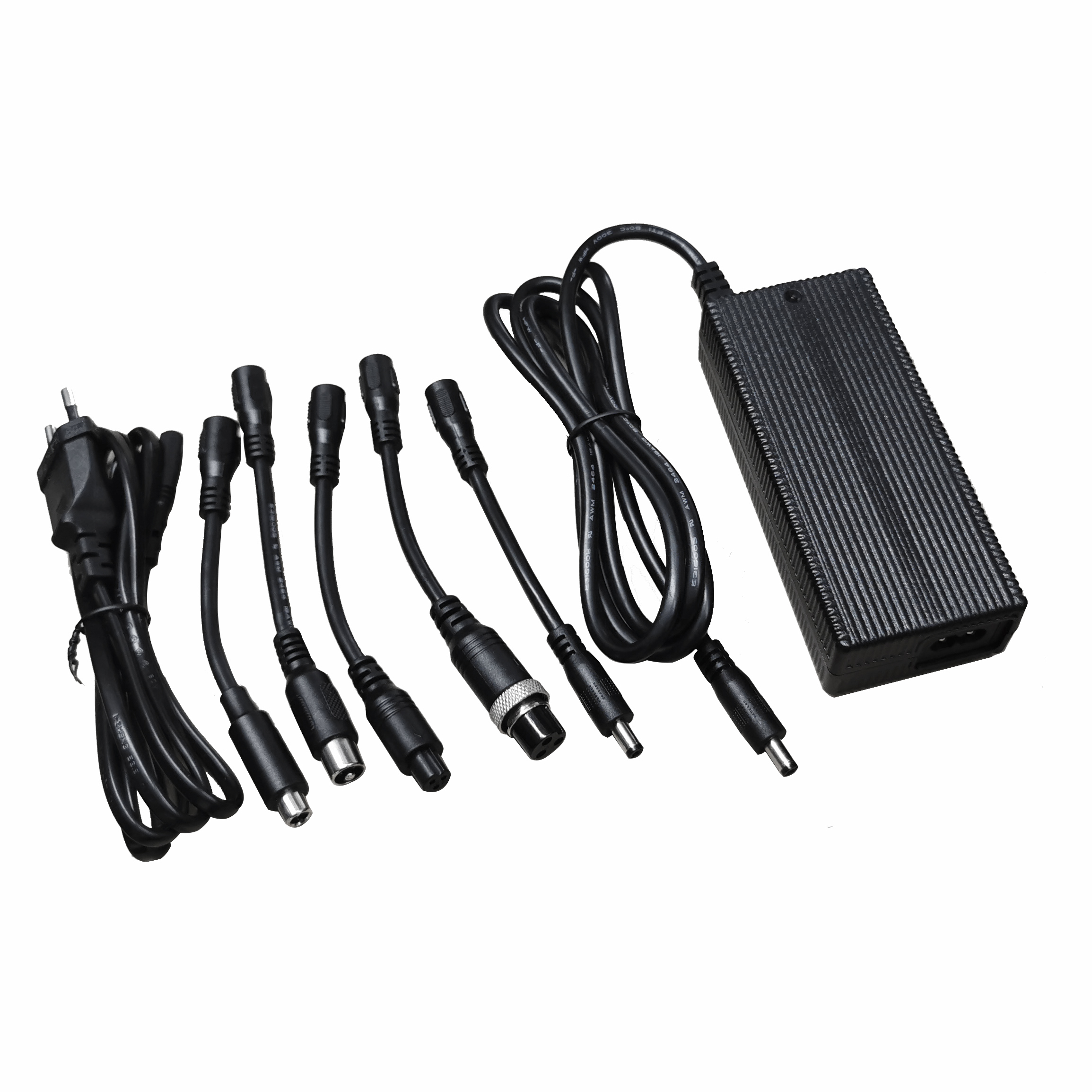

The Fuyuang FY4202000 is a 42V 2A charger for 36V lithium battery packs used on e-bikes and electric scooters. It accepts a 100-240V 50-60Hz input, charges with a CC-CV-floating profile that cuts off at end of charge, and is supplied with RCA, XLR or GX16 connector options so the same charger suits different bike harnesses. Efficiency is 90%, and short circuit, overload, over-voltage and over-temperature protection are built in. The PC fireproof housing measures 133*58*31mm and weighs 0.40KG per piece, and the enclosure is available in black or a customized colour. The charger is manufactured by Fuyuan Electronic Co., Ltd (Fuyuang), a power supply manufacturer founded in 2005 with two production bases in Dongguan and Yongzhou, 108,000 m2 of factory space and 450 employees. More than 3,000 models have been developed across a 60W to 10KW range, and every unit ships with a 3-year warranty.

Model:
FY4202000
Brand:
Fuyuang
Code:
FY4202000


Availability:

Product Overview

The FY4202000 is a 42V 2A charger for 36V lithium battery packs on e-bikes and electric scooters. Connector options include RCA, XLR and GX16, and the 100-240V 50-60Hz input makes the unit usable in any market. Charging follows a CC-CV-floating profile with cut-off at end of charge, and the compact 133*58*31mm PC fireproof housing keeps the charger small enough to carry on the bike.

Key Features

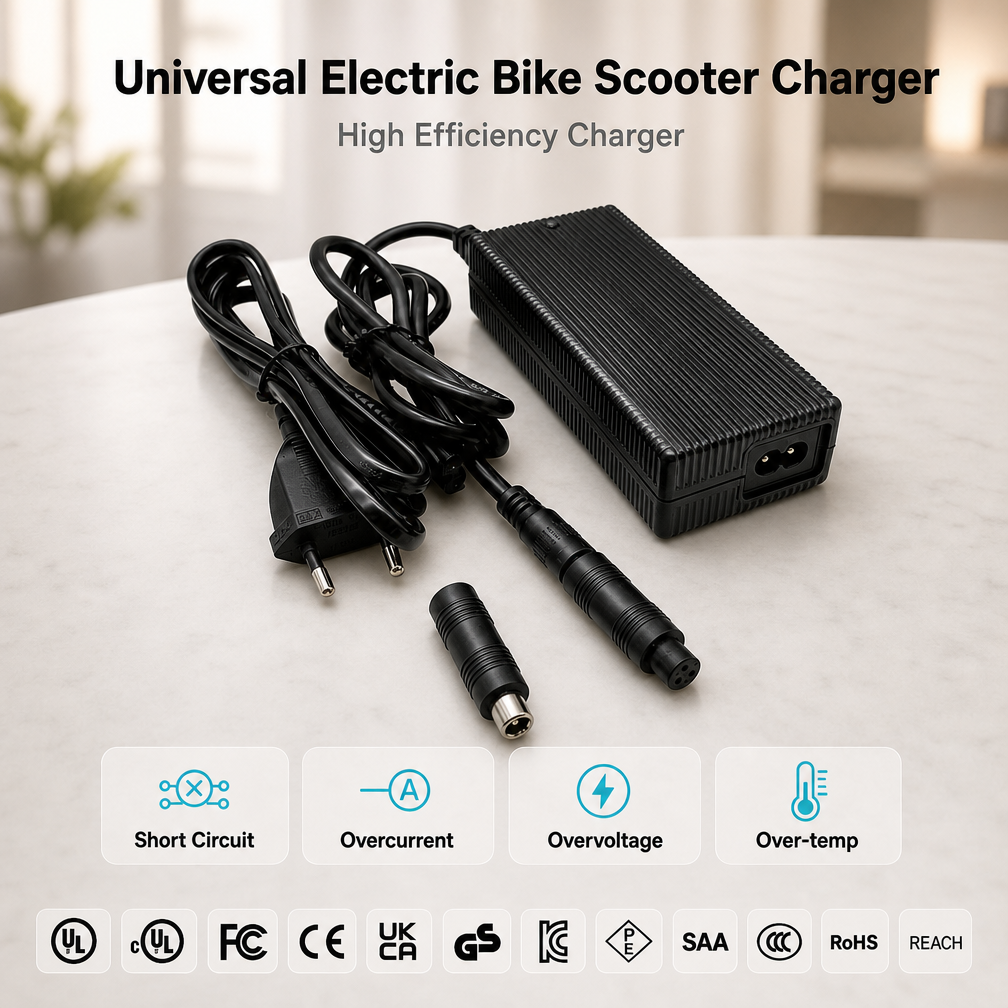

• 42V 2A output for 36V lithium e-bike and electric scooter battery packs • RCA, XLR and GX16 connector options to match different bike harnesses • CC-CV-floating charge mode with cut-off at end of charge • 90% efficiency • Short circuit, overload, over-voltage and over-temperature protection • Compact 133*58*31mm PC fireproof housing, 0.40KG • Black enclosure or customized colour, with customizable output and connectors • Universal 100-240V 50-60Hz input for worldwide use

Technical Specifications

• Model: FY4202000 • Input: 100-240V, 50-60Hz • Output: 42V 2A • Charge mode: CC-CV-floating charge / cut off • Efficiency: 90% • Connector options: RCA / XLR / GX16, customizable • Protection: short circuit, overload, over-voltage, over-temperature • Dimensions: 133*58*31mm • Weight: 0.40KG per piece • Housing material: PC fireproof material, black or customized colour • Certification: UL, FCC, cUL, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, CCC, KC, KCC • MOQ: 100 PCS

Applications

• Electric bikes • Electric scooters • 36V lithium battery packs • Electric tools • Home security systems • Motorcycles and scooters

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on the FY4202000 platform. Output voltage and current, AC and DC connectors, cable length, housing, labelling and LOGO printing can all be customized. Engineering work is supported by a CNAS-standard EMC laboratory and an in-house RoHS testing room, so compliance can be screened before formal certification and custom development can be completed in as little as 10 days. This is a private-mould design. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Certifications available for this platform: UL, FCC, cUL, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, CCC, KC, KCC.
