Fuyuang FY2946500 29.4V 6.5A 7S Li-ion Battery Charger for 24V E-scooters, Wheelchairs and AGV Robots

Fuyuang FY2946500 29.4V 6.5A 7S Li-ion Battery Charger for 24V E-scooters, Wheelchairs and AGV Robots

Name: Fuyuang FY2946500 29.4V 6.5A 7S Li-ion Battery Charger for 24V E-scooters, Wheelchairs and AGV Robots
Brand: Fuyuang
Rating: 5.0 (31 reviews)

The Fuyuang FY2946500 is a smart Li-ion 7S battery charger rated 29.4V 6.5A, designed for 24V lithium battery packs. It runs from a 100-240VAC 50/60Hz universal input and terminates charge automatically, so packs can be left connected without risk of over-charging. Efficiency above 89% and low standby power keep running costs down, while the 100-240VAC input makes the unit usable in North America, Europe and Asia without modification. Custom connectors, housing, logo and cable length are available through factory-direct OEM/ODM. The charger is manufactured by Fuyuan Electronic Co., Ltd (Fuyuang), a power supply manufacturer founded in 2005 with two production bases in Dongguan and Yongzhou, 108,000 m2 of factory space and 450 employees. More than 3,000 models have been developed across a 60W to 10KW range, and every unit ships with a 3-year warranty.

Model:
FY2946500
Brand:
Fuyuang
Code:
FY2946500


Availability:

Product Overview

The FY2946500 is a desktop Li-ion 7S battery charger for 24V lithium battery packs. It takes a universal 100-240VAC 50/60Hz input and delivers 29.4V 6.5A of stable output through a precision constant-current / constant-voltage algorithm with automatic cut-off when the pack reaches full charge. Built for 24V lithium battery packs in e-scooters, AGV robots, cleaning machines and energy storage systems, the charger combines a 200W power stage with precision CC/CV control, OVP / OCP / SCP / OTP / reverse polarity protection and a red / green LED status indicator.

Key Features

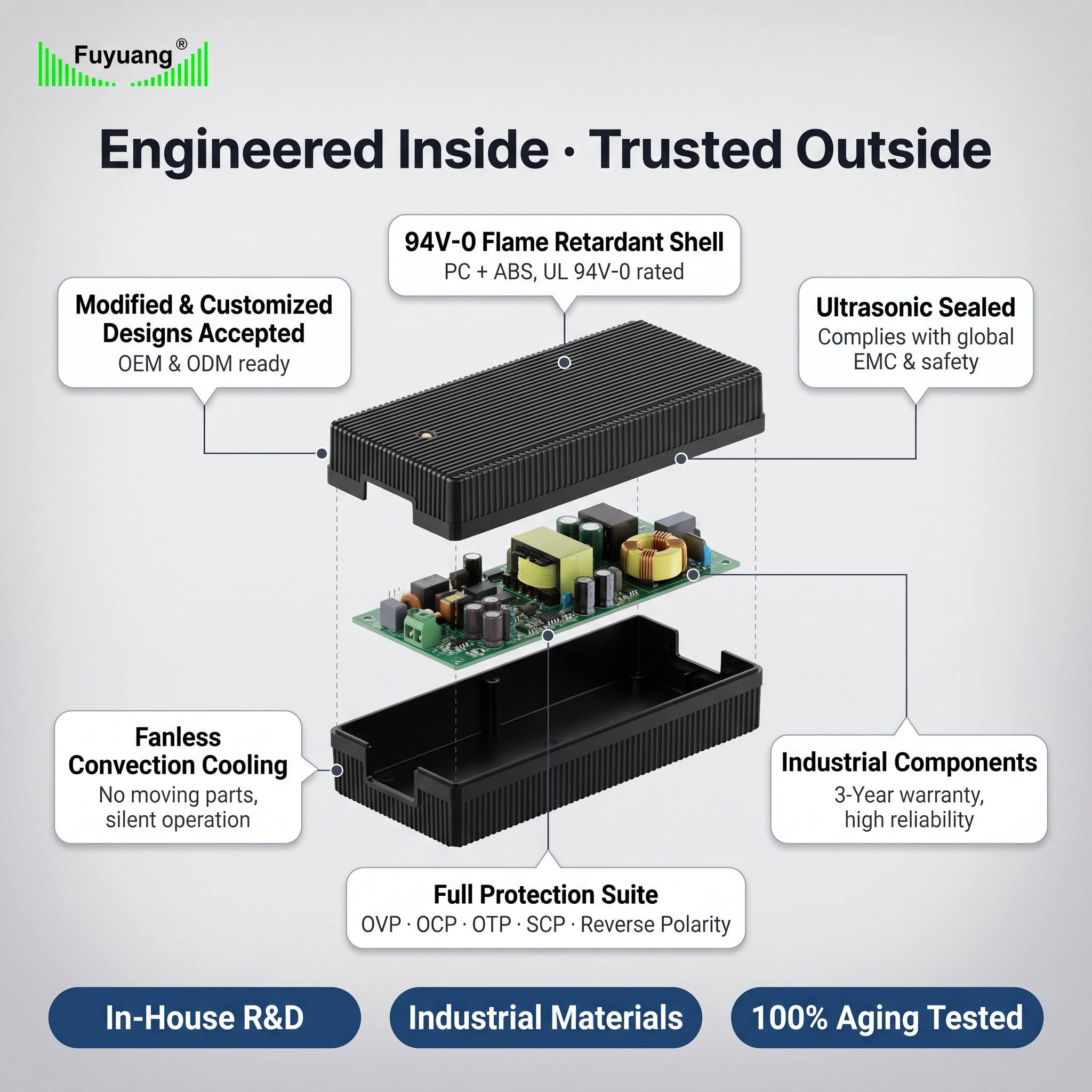

• 200W rated output with 29.4V 6.5A charging for 7S 24V lithium packs • Efficiency above 89% with low standby power consumption • Precision CC/CV charging algorithm with automatic cut-off at end of charge • Red / green LED indicator shows charging and full-charge status in real time • PC fireproof material housing, available in black or white • Protection set includes OVP, OCP, SCP, OTP, OLP, low-tension and reverse polarity protection • Desktop form factor with customizable AC and DC connectors and cable length

Technical Specifications

• Model: FY2946500 • Input: 100-240VAC, 50/60Hz • Output: 29.4V 6.5A • Output power: 200W • Battery chemistry: Li-ion • Battery configuration: 7S • Charging mode: CC / CV charging with automatic cut-off • Protection: short circuit, over-current (OCP), over-voltage (OVP), over-temperature (OTP), over-load (OLP) and low-tension protection • Efficiency: >89% (low standby power) • Housing material: PC fireproof material, colour black or white • Certification: UL, CUL, GS, CE, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • MOQ: 100 PCS

Applications

• Electric scooters • Electric wheelchairs • AGV robots • Cleaning machines • Energy storage systems • 24V lithium battery packs

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on the FY2946500 platform. Output voltage and current, AC and DC connectors, cable length, housing, labelling and LOGO printing can all be customized. Engineering work is supported by a CNAS-standard EMC laboratory and an in-house RoHS testing room, so compliance can be screened before formal certification and custom development can be completed in as little as 10 days. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Certifications available for this platform: UL, CUL, GS, CE, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH.
