Fuyuang FY2942500 29.4V 2A / 2.5A 7S Li-ion Battery Charger with D-Tap Connector for 24V Camera and Video Battery Packs

Fuyuang FY2942500 29.4V 2A / 2.5A 7S Li-ion Battery Charger with D-Tap Connector for 24V Camera and Video Battery Packs

Name: Fuyuang FY2942500 29.4V 2A / 2.5A 7S Li-ion Battery Charger with D-Tap Connector for 24V Camera and Video Battery Packs
Brand: Fuyuang
Rating: 5.0 (64 reviews)

The Fuyuang FY2942500 is a 29.4V lithium battery charger for 7S 24V packs, offered at 2A and 2.5A with a D-tap DC connector for camera and video battery systems. It accepts 100-240V 50-60Hz, charges at roughly 90% efficiency and uses a CC-CV floating charge profile that ends with a cut-off so the pack is not held at full voltage. A LED indicator shows charge status, and the charger protects against short circuit, overload, over-voltage and over-temperature, adding low-tension, over-charging, over-current and over-voltage protection. The 133*58*31MM private mold housing weighs 0.40kg and is made from PC fireproof material. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005 and operates 108,000 m2 of production space with a CNAS-standard EMC laboratory. This charger is certified to CE, GS, SAA, PSE and carries a 3-year warranty.

Model:
FY2942500
Brand:
Fuyuang
Code:
FY2942500


Availability:

Product Overview

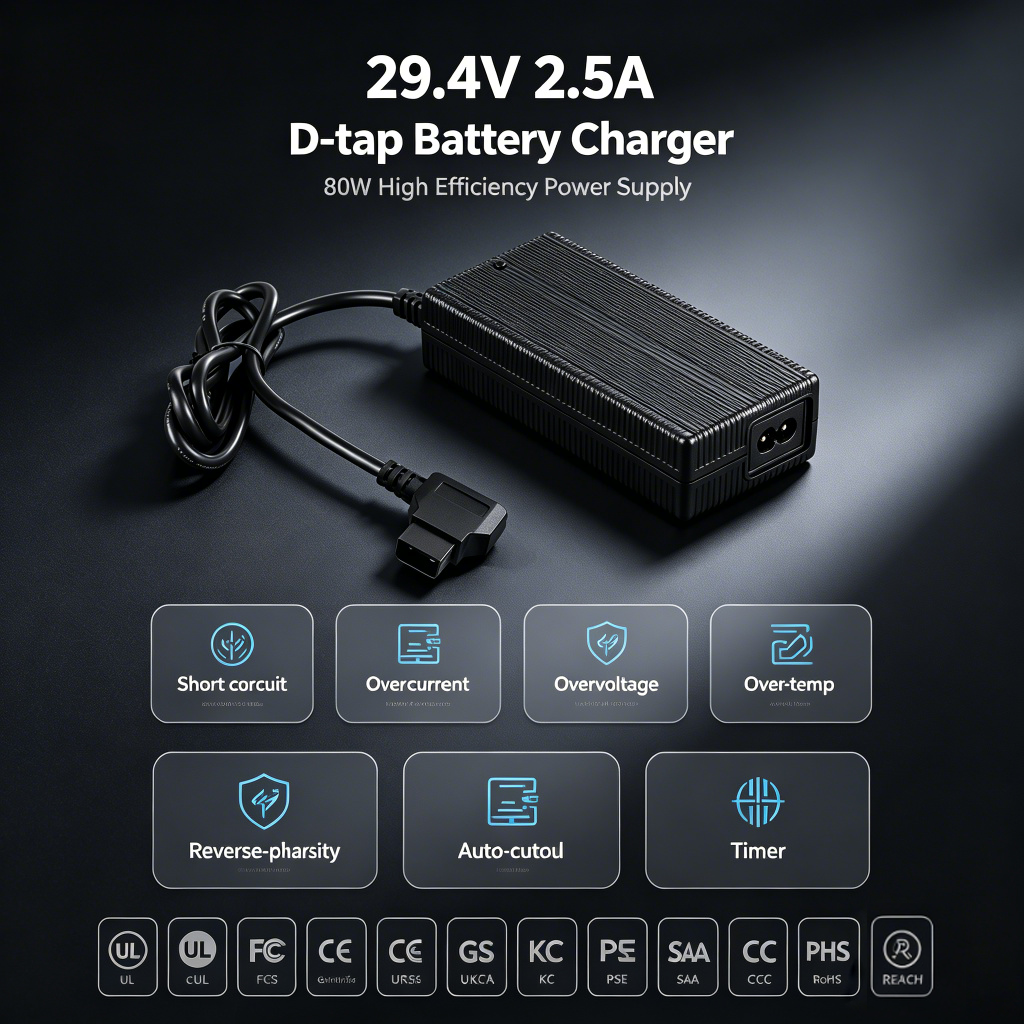

The FY2942500 charges 7S 24V lithium-ion packs at 29.4V, with 2A and 2.5A output options and a D-tap connector that is standard on professional camera and video battery systems. Output voltage and current can be adjusted for other packs in the same family, and the charger runs from any 100-240V 50/60Hz supply.

Key Features

• 29.4V output for 7S 24V lithium-ion battery packs • Output options of 29.4V 2A and 29.4V 2.5A, custom available • D-tap DC connector for camera and video battery systems • 100-240V 50/60Hz universal AC input • CC-CV floating charge with cut-off • Charging efficiency of approximately 90% • LED charging indicator, 0.40kg private mold body • Short circuit, overload, over-voltage and over-temperature protection

Technical Specifications

• Model: FY2942500 • Input: 100-240V / 50-60Hz • Output: 29.4V 2A / 29.4V 2.5A, customized • Output power: customized • Charge mode: CC-CV-floating charge / cut off • Efficiency: 90% • Battery: 7S 24V lithium-ion pack • Connector: DC with D-tap option • Size: 133*58*31MM, weight 0.40kg per piece • Indicator: LED, color black or customized • Certification: UL, FCC, CB, CE, GS, UKCA, PSE, SAA, RCM, KC, KCC, CCC, RoHS, REACH • MOQ: 100 PCS

Applications

• Professional cameras and video battery packs • Broadcast and film production equipment • Electric tools and household appliances • Home security and monitoring systems • Medical devices and industrial equipment • Scooters and mobility equipment

Customization & Service

Fuyuan Electronic Co., Ltd accepts modified and customised designs on this model, including output voltage and current, connector type, cable length, housing colour, private labeling and packaging. Input and output fuses are fitted for double-layer safety against over-current and short-circuit events, and optional protection features include reverse polarity, timing, anti-spark, pre-charging and automatic shut-off. Each charger runs a 4-hour full load ageing test, is 100% factory inspected and carries a 3-year warranty with 5-year maintenance support. Standard MOQ is 100 PCS.
