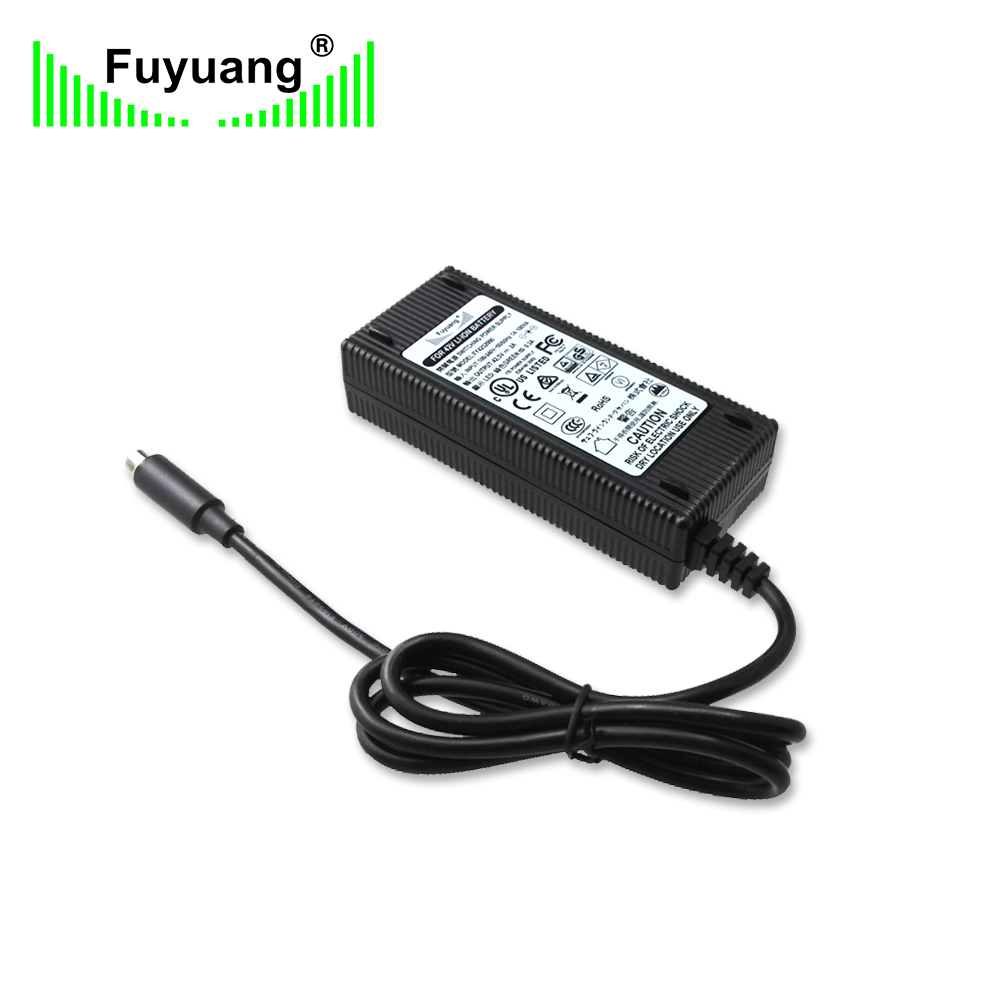

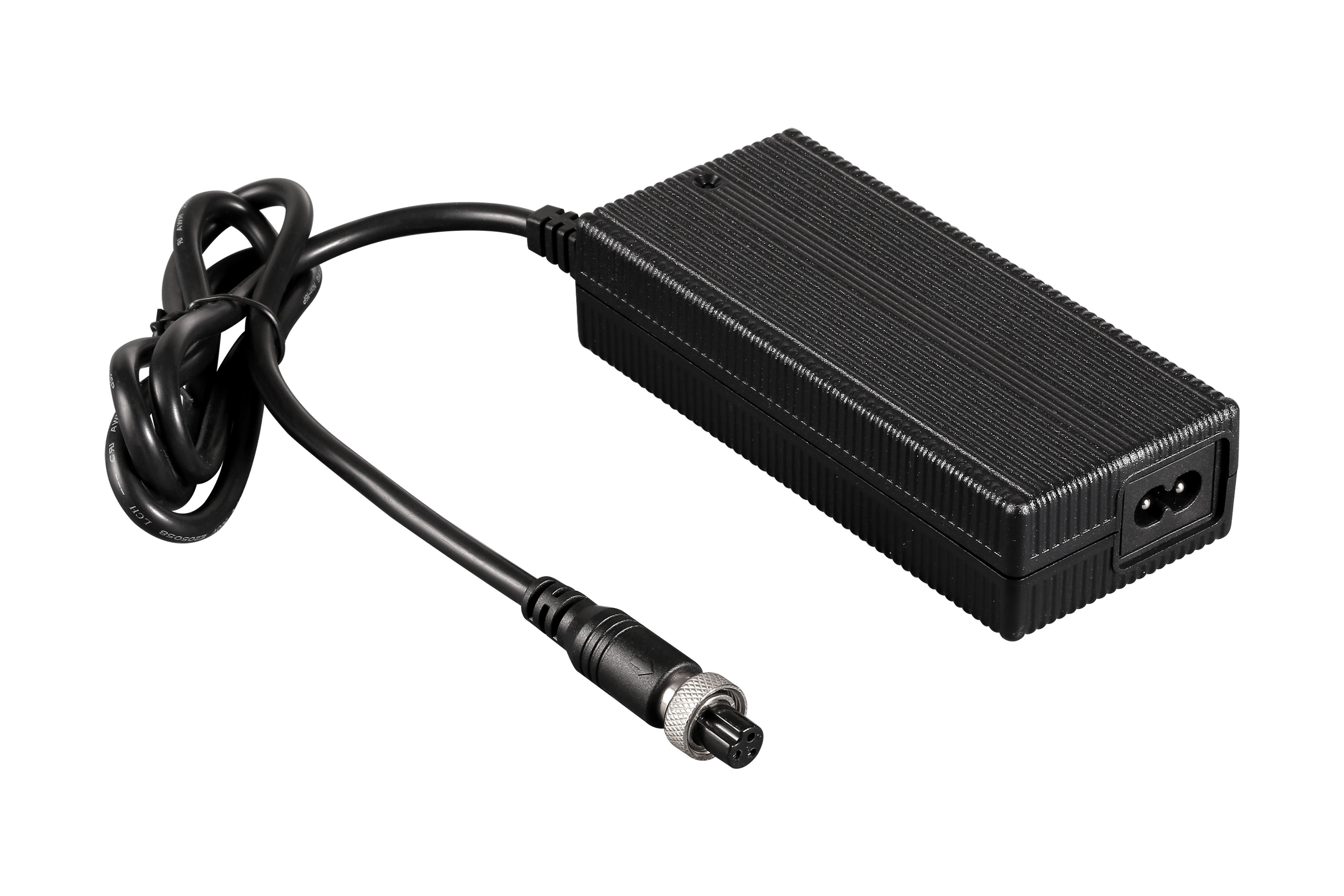

Fuyuang FY1265000 12.6V 5A 80W CC-CV Li-ion Battery Charger with LED Indicator for 3S 12V Packs, Cameras and Industrial Use

Fuyuang FY1265000 12.6V 5A 80W CC-CV Li-ion Battery Charger with LED Indicator for 3S 12V Packs, Cameras and Industrial Use

Name: Fuyuang FY1265000 12.6V 5A 80W CC-CV Li-ion Battery Charger with LED Indicator for 3S 12V Packs, Cameras and Industrial Use
Brand: Fuyuang
Rating: 5.0 (2 reviews)

The Fuyuang FY1265000 is a constant current constant voltage charger for 3-cell 12V lithium-ion battery packs, delivering 12.6V 5A (80W) from a 100-240V 1.2A input. It is produced in a private mold desktop housing with a built-in LED light, and the current range is offered from 2A up to 6A depending on pack capacity. CC-CV charging keeps the pack within safe limits: constant current while the battery is empty, then constant voltage as it approaches full charge. Typical applications include camera and video battery packs, standard battery packs and industrial equipment that uses 12.6V lithium batteries. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005, with two production bases covering 108,000 m2 and a CNAS-standard EMC laboratory. The product is certified to CE, GS, SAA, PSE, FCC and RoHS and carries a 3-year warranty.

Model:
FY1265000
Brand:
Fuyuang
Code:
FY1265000


Availability:

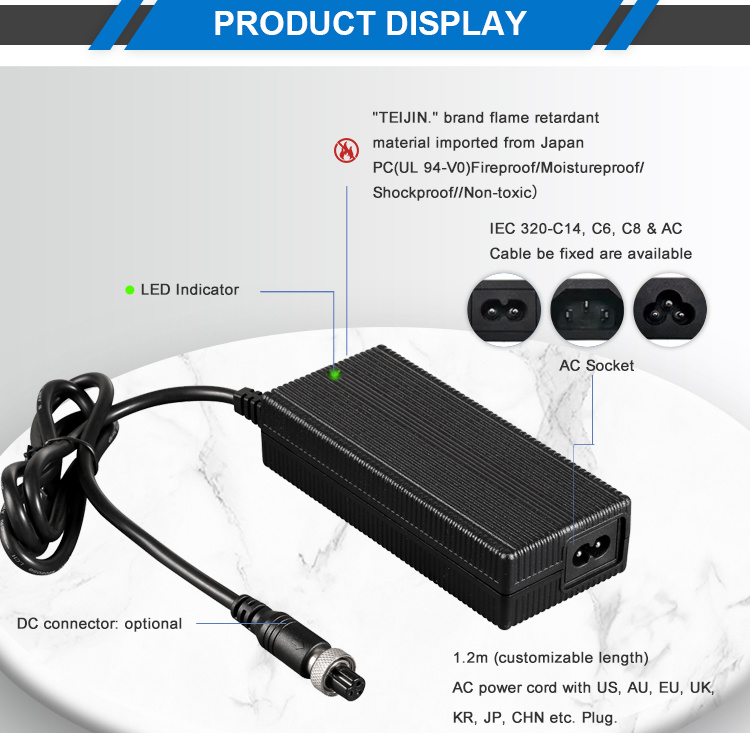

Product Overview

The FY1265000 charges 3-cell lithium-ion battery packs at 12.6V with 5A output, giving 80W of charging power. It runs from 100-240V 1.2A and is supplied in a desktop private mold housing with an integrated LED light. The same model format is offered at 2A, 3A, 4A, 5A and 6A so it can match smaller camera batteries as well as larger 12V packs.

Key Features

• Constant current and constant voltage charging for 3-cell 12V packs • 12.6V 5A output at 80W • Current options from 2A to 6A for different pack capacities • 100-240V 1.2A wide range AC input • Built-in LED light and LED charging indicator • Desktop private mold housing • Certified to CE, GS, SAA, PSE, FCC and RoHS • 100% factory inspection with 3-year warranty

Technical Specifications

• Model: FY1265000 • Product: constant current constant voltage lithium battery charger • Input: 100-240V / 1.2A • Output: 12.6V / 5A • Output power: 80W • Current options: 2A / 3A / 4A / 5A / 6A • Battery: 3-cell 12V lithium-ion pack • Type: desktop charger with LED light • Color: black, white or customised • Certification: CE, GS, SAA, PSE, FCC, RoHS • MOQ: 100 PCS

Applications

• Camera and photography battery packs • Standard 12V lithium battery packs • Industrial equipment and instruments • E-bikes, scooters and light electric vehicles • Robotic and medical equipment • Battery pack assembly and service

Customization & Service

OEM and ODM customisation covers output voltage and current, DC connector and cable, private mold housing colour, private labeling, LOGO printing and packaging. The model is produced in a private mold, so branding and connector changes can be applied without a new tooling programme. Fuyuan Electronic Co., Ltd validates designs in a CNAS-standard EMC laboratory before certification, inspects every unit before packing and provides a 3-year warranty. Standard MOQ is 100 PCS.
