Fuyuang 54.6V 5.5A 300W 13S Li-ion Smart Battery Charger for 48V E-bike and Golf Cart

Fuyuang 54.6V 5.5A 300W 13S Li-ion Smart Battery Charger for 48V E-bike and Golf Cart

Name: Fuyuang 54.6V 5.5A 300W 13S Li-ion Smart Battery Charger for 48V E-bike and Golf Cart
Brand: Fuyuang
Rating: 5.0 (54 reviews)

The Fuyuang FY54655000 is a smart 54.6V 5.5A Li-ion battery charger delivering 300W of stable output for 48V 13S lithium packs. It is used on electric bikes, e-scooters, tricycles, golf carts and electric mopeds. Precision CC/CV charging with automatic cut-off protects the pack during long or overnight charging, supported by over-voltage, over-current, short-circuit, over-temperature and low-tension protection. Efficiency is above 88%, and a red/green LED indicator shows charging status. Input is 100-240VAC 50/60Hz, and labels plus the DC connector can be customized. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty.

Model:
FY54655000
Brand:
Fuyuang
Code:
FY54655000


Availability:

Product Overview

The FY54655000 is a smart 54.6V 5.5A Li-ion battery charger rated 300W, designed for 48V 13S lithium packs found on e-bikes, e-scooters, tricycles, golf carts and electric mopeds. Precision CC/CV charging with automatic cut-off makes it suitable for overnight charging. The universal 100-240VAC input with high conversion efficiency and low standby power keeps it usable across markets, and the housing is PC fireproof material in black or white.

Key Features

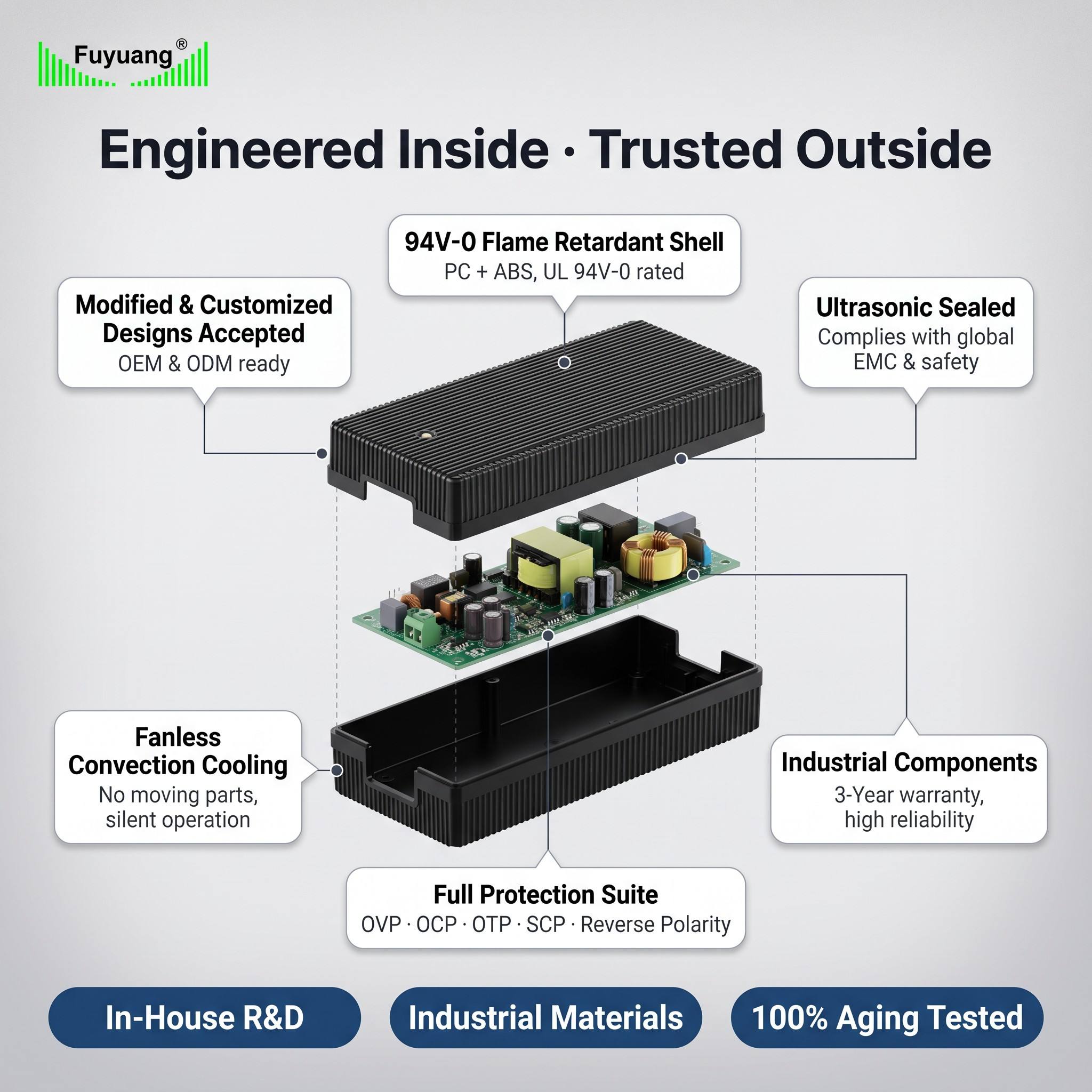

• 54.6V 5.5A output, 300W stable power • Precision CC/CV charging with automatic cut-off • Built for 48V 13S lithium battery packs • Efficiency above 88% with low standby power • Over-voltage, over-current, short-circuit, over-temperature and low-tension protection • Red/green LED indicator for real-time charging status • PC fireproof material housing, black or white • OEM/ODM: labels and DC connector can be customized

Technical Specifications

• Model: FY54655000 • Product name: 54.6V 5.5A 13S Li-ion battery charger for 48V packs • AC input: 100-240VAC, 50/60Hz • Output: 54.6V 5.5A • Output power: 300W • Battery pack: 13S 48V lithium • LED/LCD indicator: red / green • Color: black, white • Efficiency: above 88% • AC/DC connector: according to your need • Protection: short circuit, OTP, OLP, low tension, OVP, OCP • Certification: UL, CUL, GS, CE, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • Warranty: 3 years • MOQ: 100 PCS

Applications

• Electric bikes and e-bikes • Electric scooters • Electric tricycles • Golf carts and electric mopeds • 48V lithium battery packs

Customization & Service

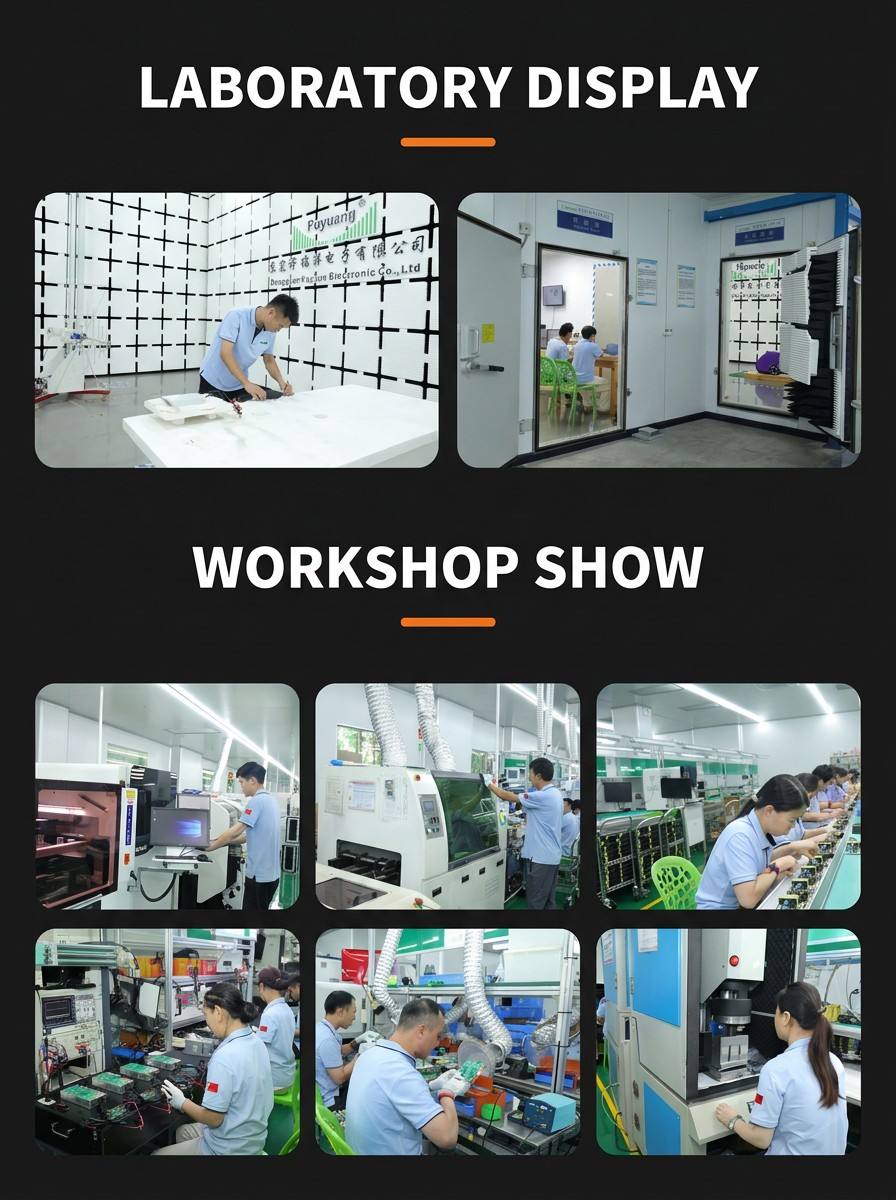

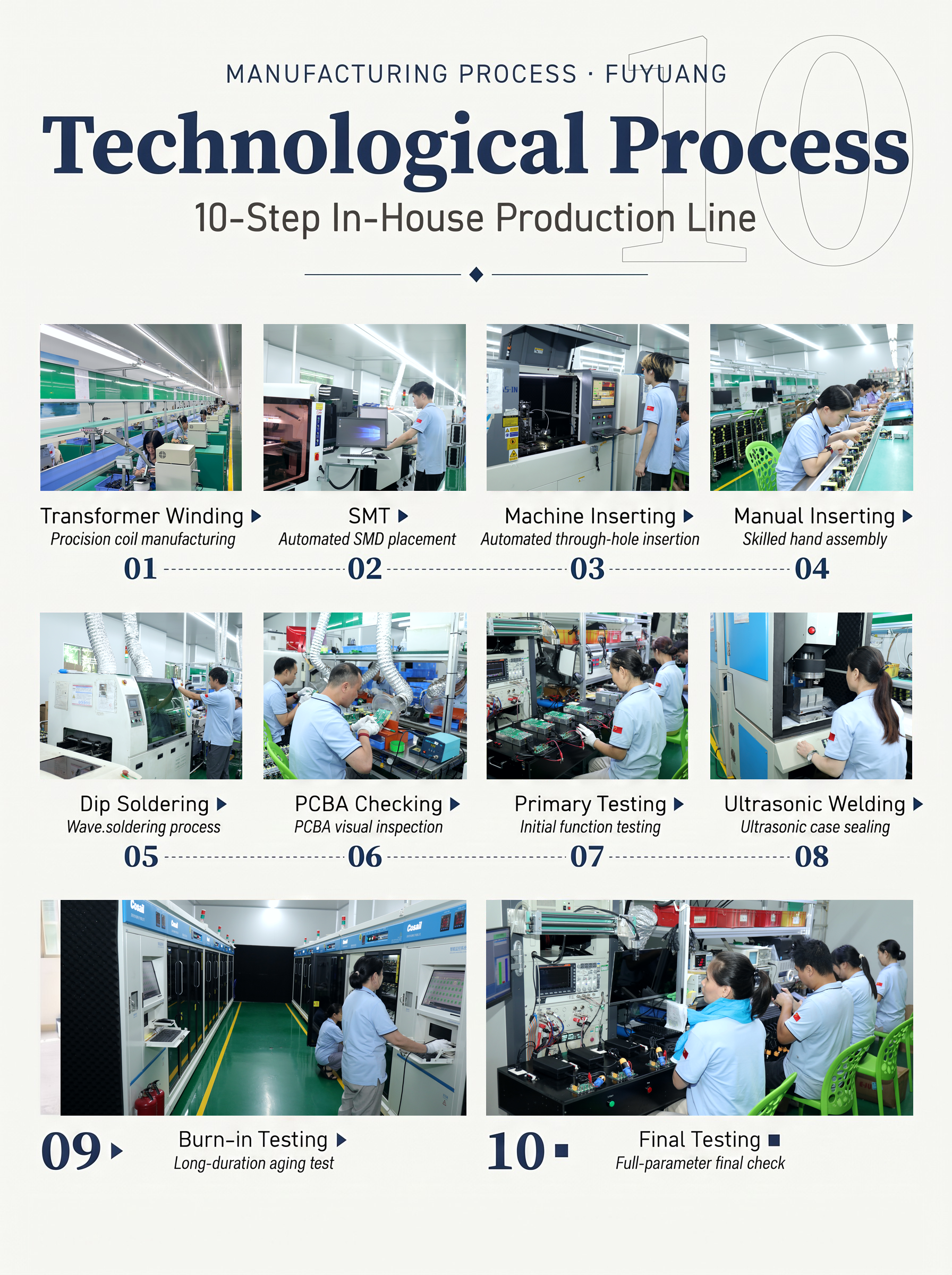

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing, custom housing and cable length. Engineering support is backed by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be shortened. Every unit is 100% factory inspected and receives 4-8 hours of full-load burn-in, and this product carries a 3-year warranty backed by ISO9001 and BSCI audits. Standard MOQ is 100 PCS.
