Fuyuang 54.6V 3.5A Li-ion Battery Charger 200W for 48V E-bike and Electric Scooter

Fuyuang 54.6V 3.5A Li-ion Battery Charger 200W for 48V E-bike and Electric Scooter

Name: Fuyuang 54.6V 3.5A Li-ion Battery Charger 200W for 48V E-bike and Electric Scooter
Brand: Fuyuang
Rating: 5.0 (40 reviews)

The Fuyuang FY5463500 is a 54.6V 3.5A desktop Li-ion battery charger with a 200W platform, made for 48V 13-cell lithium packs on electric bikes and electric scooters. The 100-240V 50/60Hz input suits global use, and the output platform spans 60W to 900W for different pack sizes. Charging uses a CC-CV-TC / cut-off profile with protection against short circuit, over-voltage, over-temperature and overload. Efficiency is 92% minimum, and the unit is packed in a small box plus carton for export. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty.

Model:
FY5463500
Brand:
Fuyuang
Code:
FY5463500


Availability:

Product Overview

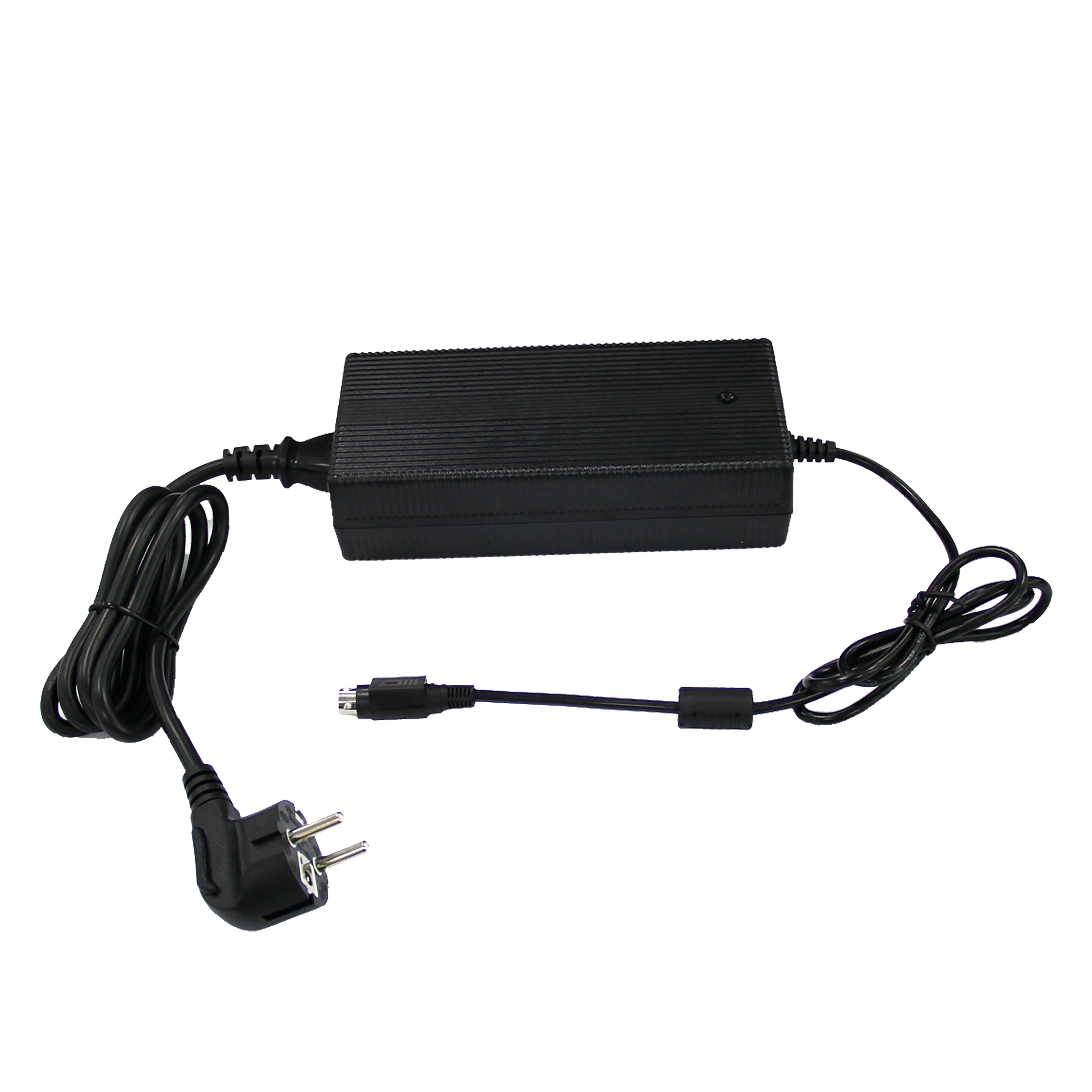

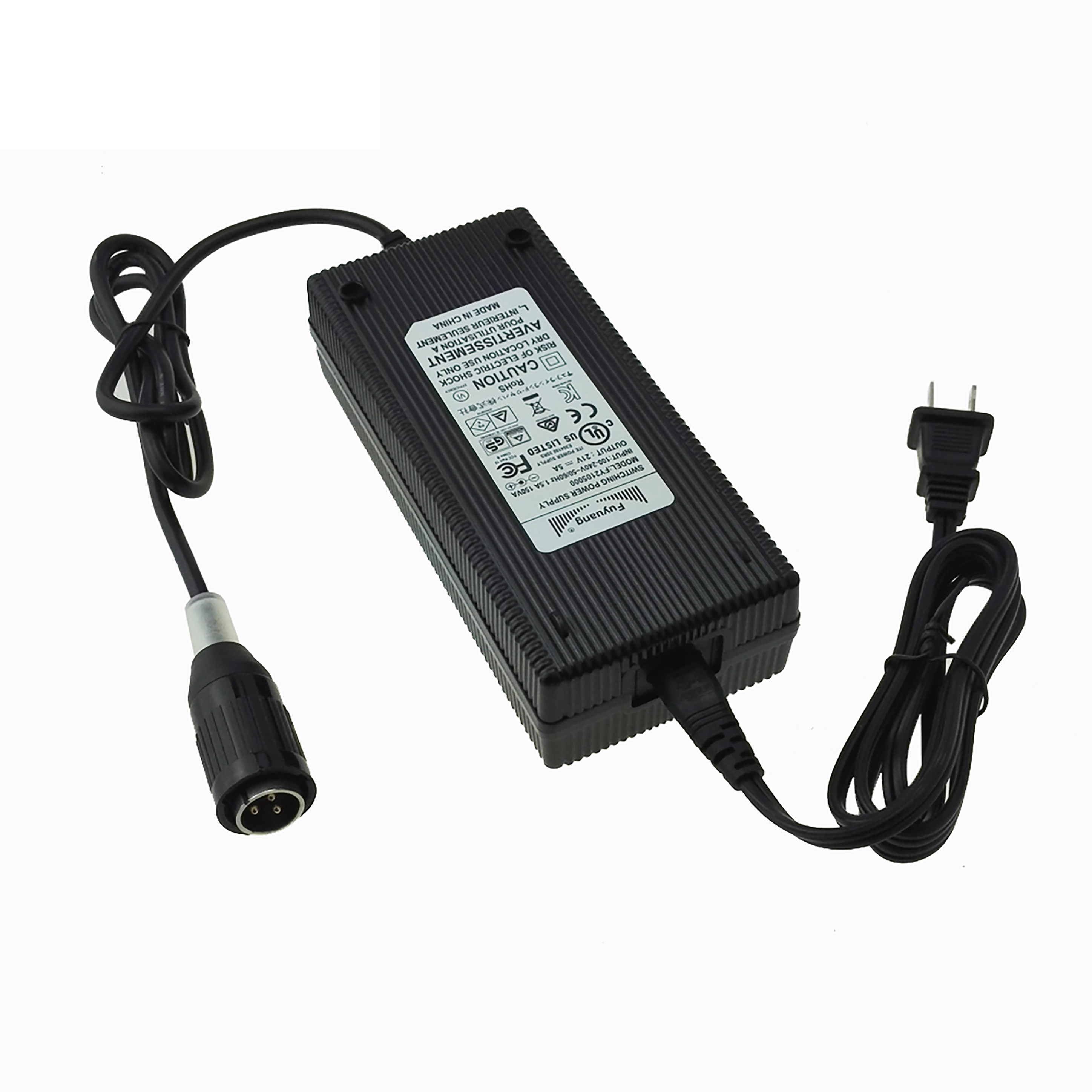

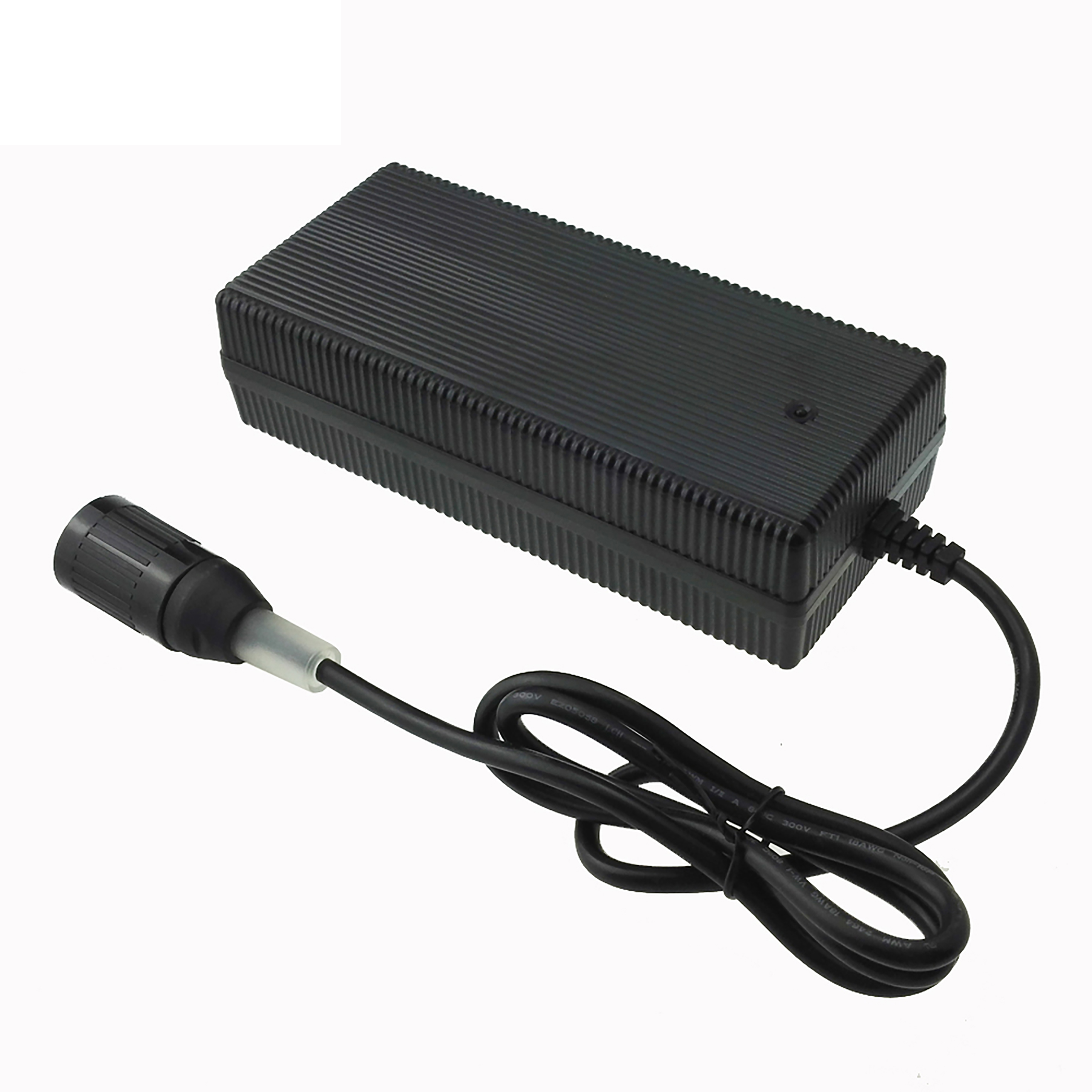

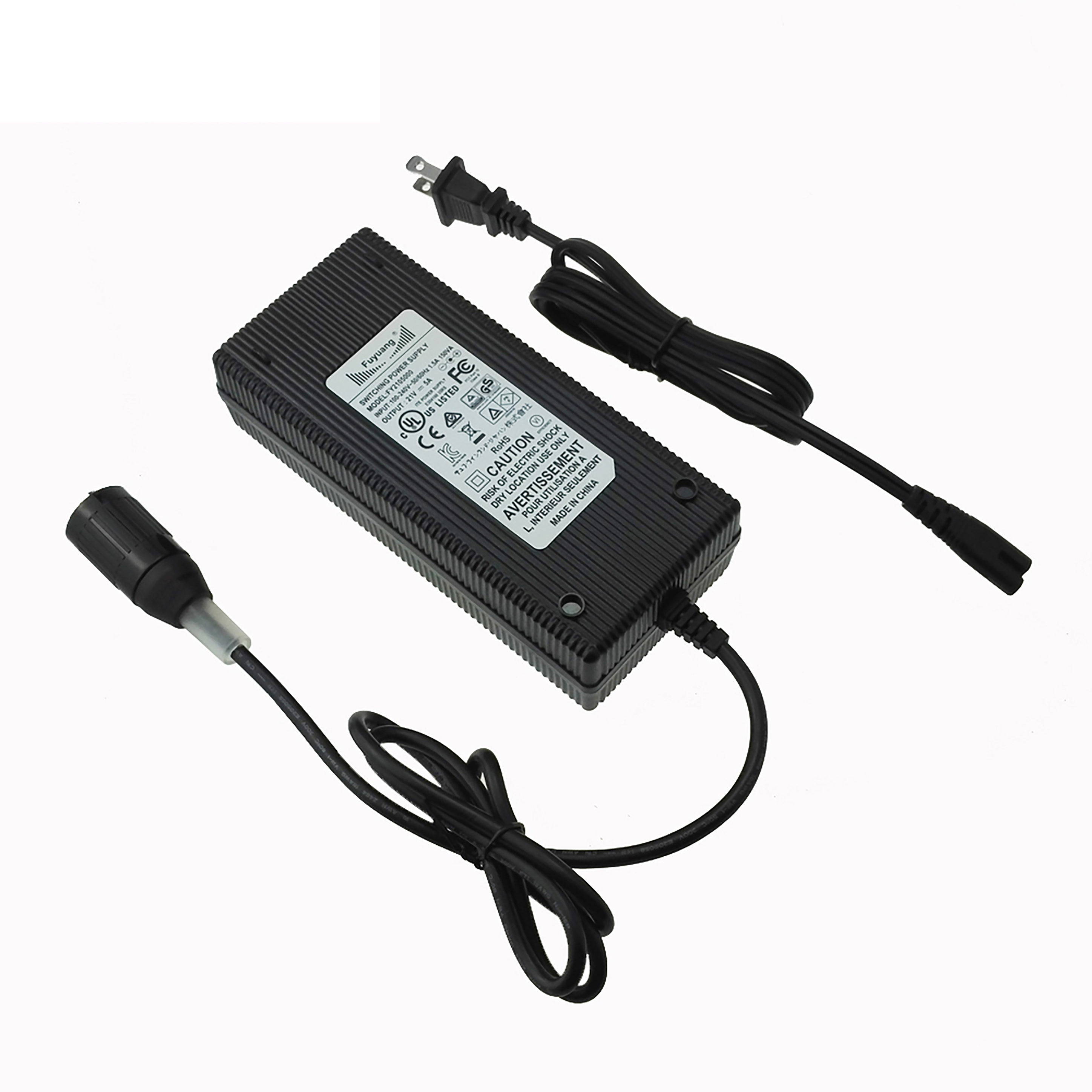

The FY5463500 is a 54.6V 3.5A desktop Li-ion battery charger rated 200W, designed for 48V 13-cell lithium battery packs on e-bikes and electric scooters. The same platform is available from 60W up to 900W. Charging uses a CC-CV-TC / cut-off profile so the pack reaches full charge safely, with short-circuit, over-voltage, over-temperature and overload protection built in.

Key Features

• 54.6V 3.5A output for 48V 13-cell lithium packs • 200W rated power, platform available from 60W to 900W • CC-CV-TC charging with cut-off for safe full charge • 92% minimum charging efficiency • Input and output connector chosen to match the application • LED indicator for charging status • Short circuit, over-voltage, over-temperature and overload protection • 3-year warranty; OEM/ODM accepted

Technical Specifications

• Model: FY5463500 • Input: 100-240V, 50-60Hz • Output: 54.6V / 3.5A • Output power range: 60W - 900W • Charging mode: CC-CV-TC / cut off • Charging efficiency: 92% minimum • AC/DC connector: according to your need • Package: small box + carton • Type: desktop • Protection: short circuit, over-voltage, over-temperature, overload • Certification: UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • Warranty: 3 years • MOQ: 100 PCS

Applications

• Electric bikes and e-bikes • Electric scooters • 48V lithium battery packs • Universal charging applications

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and AC/DC connector selection. Engineering support is backed by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be shortened. Every unit is 100% factory inspected and receives 4-8 hours of full-load burn-in, and this product carries a 3-year warranty. Standard MOQ is 100 PCS.
