Fuyuang 42V 3A Lithium Battery Charger for 10S 36V Li-ion Battery Pack, Ebike Scooter Charger 80W-300W OEM ODM

Fuyuang 42V 3A Lithium Battery Charger for 10S 36V Li-ion Battery Pack, Ebike Scooter Charger 80W-300W OEM ODM

Name: Fuyuang 42V 3A Lithium Battery Charger for 10S 36V Li-ion Battery Pack, Ebike Scooter Charger 80W-300W OEM ODM
Brand: Fuyuang
Rating: 5.0 (71 reviews)

The Fuyuang FY4203000 is a 42V 3A desktop lithium battery charger designed around 10S 36V Li-ion battery packs. It runs from a 100-240Vac 50/60Hz input, reaches 95% charging efficiency, and is offered across an 80W to 300W platform that also covers 120W, 150W and 200W versions. Charging is protected by auto-stop plus over-voltage, over-current, short-circuit and reverse protection, and the input and output are both fused for a second layer of safety. The fanless design cools by free air convection for zero noise. Output voltage and current can be tailored to different battery systems, and the unit works with Li-ion, LiFePO4 and lead-acid batteries. Fuyuan Electronic Co., Ltd has manufactured chargers and power supplies since 2005, with 108,000 m2 of production space, 450 employees and 3,000+ developed models from 60W to 10KW. Every unit is 100% factory inspected and carries a 3-year warranty with a 50 PCS minimum order quantity.

Model:
FY4203000
Brand:
Fuyuang
Code:
FY4203000


Availability:

Product Overview

The FY4203000 is a desktop lithium-ion battery charger with a 100-240Vac 50/60Hz input and a 42V 3A output, matching 10S 36V Li-ion battery packs used on electric bicycles and e-scooters. Charging efficiency reaches 95% and the platform spans 80W to 300W output levels. The fanless housing cools by free air convection, keeping operation silent and dust-free.

Key Features

• 42V 3A output tailored to 10S 36V Li-ion battery packs • Universal 100-240Vac 50/60Hz input • 95% charging efficiency • Fanless design, cooling by free air convection with zero noise • Auto-stop plus over-voltage, over-current, short-circuit and reverse protection • Fuse protection on both input and output for double-layer safety • Output voltage and current can be tailored to different battery systems • Works with Li-ion, LiFePO4 and lead-acid batteries

Technical Specifications

• Model Number: FY4203000 • Brand: Fuyuang • Product name: 42V 3A lithium ion battery charger • Type: desktop charger • Input: 100-240V 50/60Hz • Output: 42V 3A • Output power: 80W, 120W, 150W, 200W, 300W • Suitable battery: 10S 36V Li-ion battery pack • Efficiency: 95% • Operating temperature: -29C to +45.5C • Protection: OCP, OVP, OTP, SCP plus reverse protection and auto-stop • DC connectors: 5.5x2.1mm, 5.5x2.5mm, GX16, XLR, Anderson, XT-30 • Material: PC fireproof material; color: black • Certification: CE, FCC, RoHS, UKCA, UL, SAA • Warranty: 3 years; MOQ: 50 PCS

Applications

• Electric bicycles and e-bikes • Electric scooters • Industrial equipment • Medical devices • Personal mobility vehicles

Customization & Service

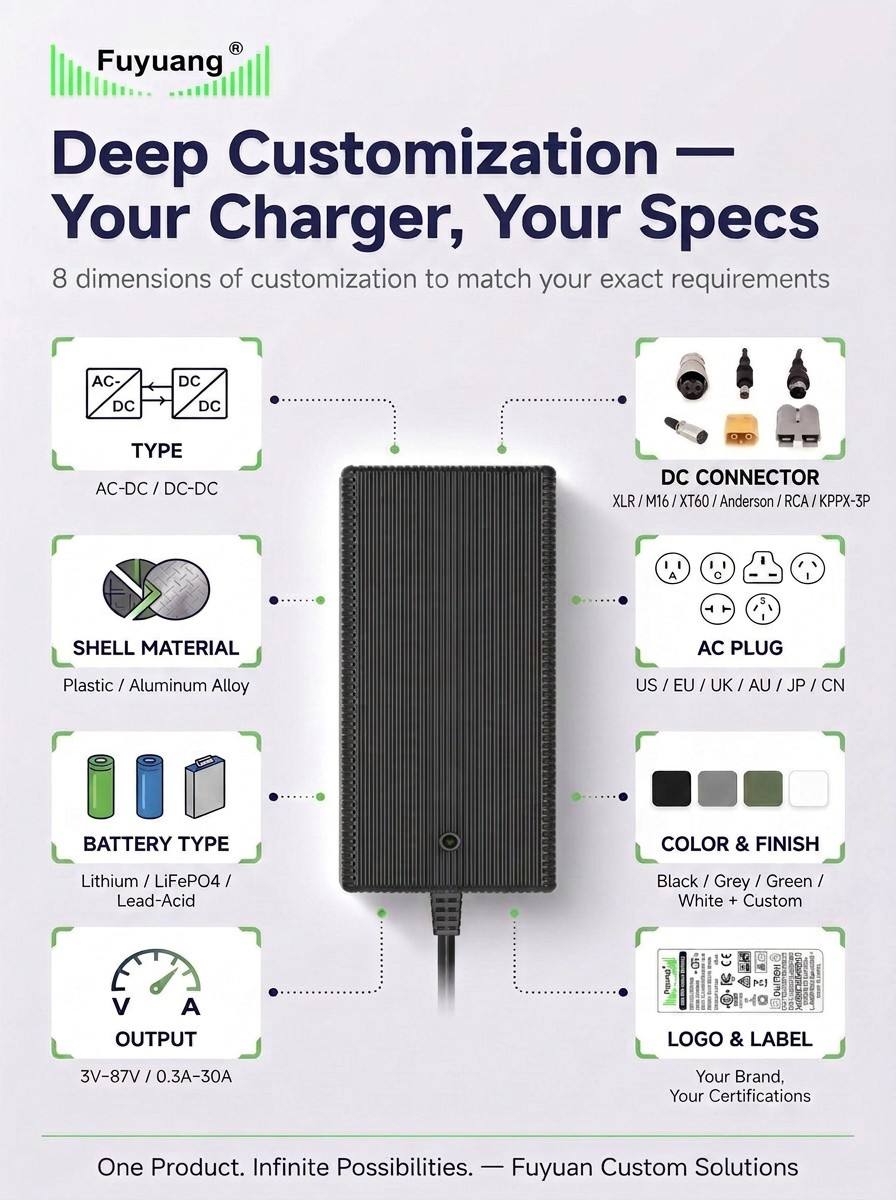

The FY4203000 supports full OEM and ODM customisation, including output voltage and current, charging profile, DC connectors, AC plug types and packaging. Private mould tooling is available, and engineering work is supported by a CNAS-standard EMC laboratory to shorten certification preparation. Units are 100% factory inspected and covered by a 3-year warranty. Minimum order quantity is 50 PCS.
