Fuyuang 42V 3A Li-ion Battery Charger 75W-1500W for 10S 36V E-Scooter and E-Bike Battery Packs

Fuyuang 42V 3A Li-ion Battery Charger 75W-1500W for 10S 36V E-Scooter and E-Bike Battery Packs

Name: Fuyuang 42V 3A Li-ion Battery Charger 75W-1500W for 10S 36V E-Scooter and E-Bike Battery Packs
Brand: Fuyuang
Rating: 5.0 (23 reviews)

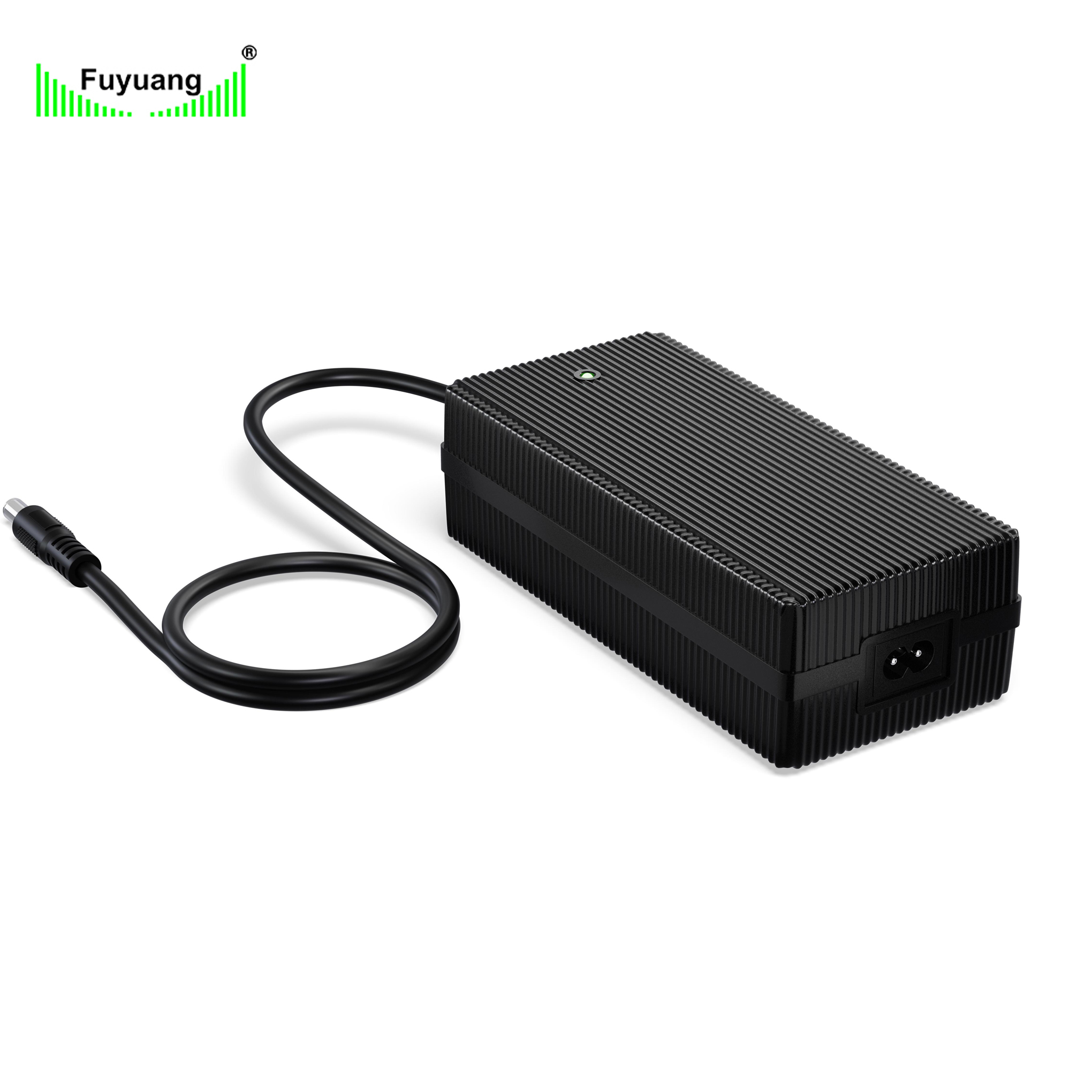

The Fuyuang FY4203000 is a compact desktop fast charger for 10S 36V lithium battery packs. It delivers 42V 3A (126W) from a 100-240Vac 50/60Hz input at 95% efficiency, and the same housing family covers 42V 2A, 4A, 5A, 6A, 7A, 8A and 10A with power levels from 75W to 1500W. The unit measures only 154 x 60 x 36 mm, making it easy to carry with the scooter or bike, and it protects against over-charging, over-current, over-voltage and short circuit. Standard connectors include 5525, 5521 and XLR, and a private mould flame-retardant housing is supplied in black with AU, EU, UK, US, JP plugs. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY4203000
Brand:
Fuyuang
Code:
FY4203000


Availability:

Product Overview

The FY4203000 is a fast charger for 10S 36V lithium packs, providing 42V 3A (126W). It fits electric scooters, e-bikes, wheelchairs, robotics and drones, and can be specified from 42V 2A up to 42V 10A. The compact 154 x 60 x 36 mm desktop housing is easy to store or carry, while 95% efficiency and full protection keep charging safe. Choose from 5525, 5521 or XLR connectors, or request a custom DC plug.

Key Features

• 42V 3A (126W) output for 10S 36V lithium battery packs • Platform power range 75W / 120W / 200W / 300W / 400W / 600W / 800W / 1200W / 1500W • Output variants: 42V 2A / 3A / 4A / 5A / 6A / 7A / 8A / 10A • 95% charging efficiency • Protection: fireproof housing, over-charging, over-current, over-voltage and short circuit • Compact size of 154 x 60 x 36 mm • DC connectors: 5525 / 5521 / XLR, customizable • Plug types AU, EU, UK, US, JP; colour black

Technical Specifications

• Model: FY4203000 • Input: 100-240Vac 50/60Hz • Output: 42V 3A (126.0W) • Output variants: 42V 2A / 3A / 4A / 5A / 6A / 7A / 8A / 10A • Power range: 75W / 120W / 200W / 300W / 400W / 600W / 800W / 1200W / 1500W • Efficiency: 95%; size 154*60*36 mm • Housing material: ABS, fireproof PC; colour black • Certification: CE, FCC, RoHS, UKCA, UL, GS, KC, PSE • MOQ: 100 PCS

Applications

• Electric scooters • E-bikes and 36V battery packs • Electric wheelchairs and mobility scooters • Robotics and drones • Electric tools • Medical devices and household appliances

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 100 PCS. Certifications held on this platform include CE, FCC, RoHS, UKCA, UL, GS, KC and PSE.
