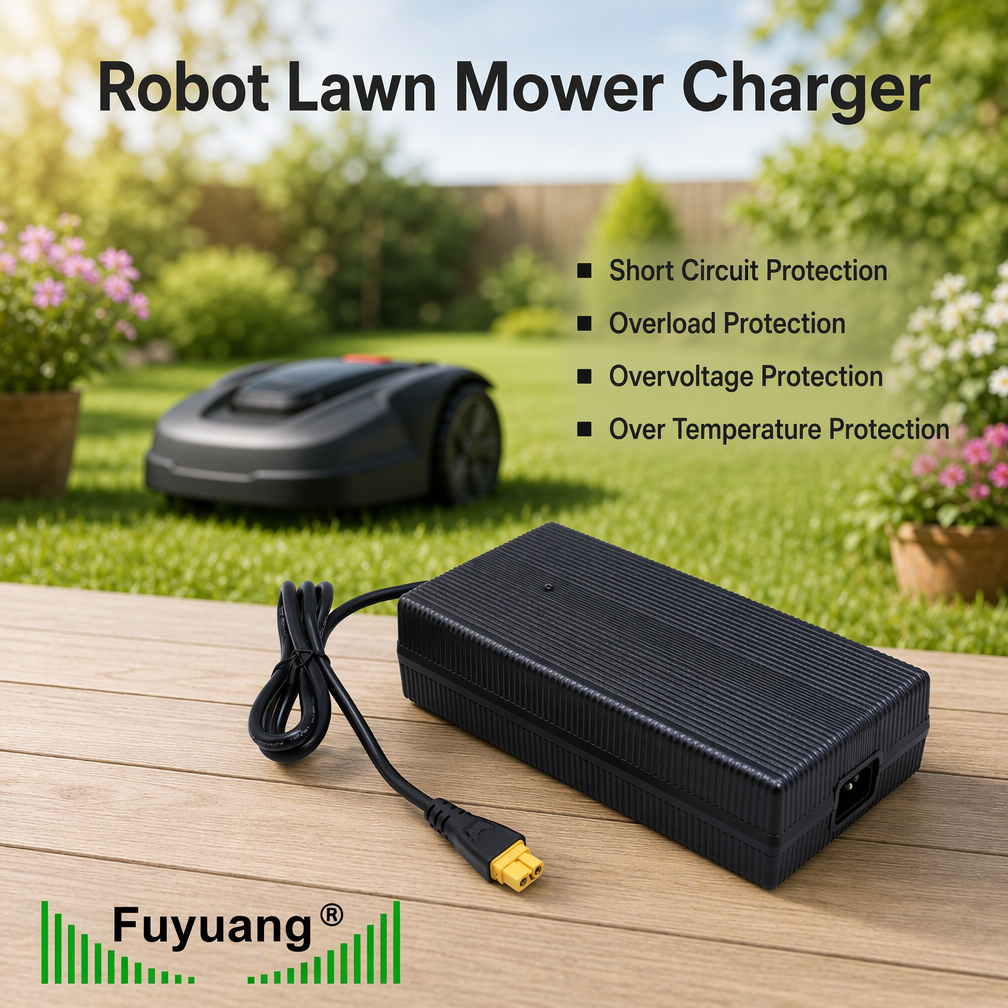

Fuyuang 40V 42V 7A Fanless Lawn Mower Battery Charger for 36V 10S Li-ion Packs

Fuyuang 40V 42V 7A Fanless Lawn Mower Battery Charger for 36V 10S Li-ion Packs

Name: Fuyuang 40V 42V 7A Fanless Lawn Mower Battery Charger for 36V 10S Li-ion Packs
Brand: Fuyuang
Rating: 5.0 (63 reviews)

The Fuyuang FY42007000 is a high efficiency fanless charger for lawn mower and outdoor power equipment batteries. It delivers 42V 7A or 40V 7A, 294W, from a 100-240V 50-60Hz input, and charges 36V 10S Li-ion packs. The unit measures 210 x 108 x 55mm and weighs 1.30kg. Charging follows a CC-CV-float profile with cut off, protection covers over load, over voltage, over temperature, short circuit and reverse polarity, and the timing and automatic shut-off functions plus pre-charge and CC-CN modes make unattended charging straightforward. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY42007000
Brand:
Fuyuang
Code:
FY42007000


Availability:

Product Overview

The FY42007000 is a fanless battery charger for lawn mower battery packs. It provides 42V 7A or 40V 7A - 294W - from a universal 100-240V 50-60Hz input and is designed for 36V 10S lithium-ion batteries. The compact 210 x 108 x 55mm plastic case suits both OEM installation and standalone use, and the charger is also suitable for e-bikes, scooters, robotics and battery packs. Charging is CC-CV-float with cut off, with an automatic identification circuit for pack safety.

Key Features

• Designed for 36V 10S Li-ion lawn mower packs • 42V 7A and 40V 7A output, 294W • Charge mode: CC-CV-float charge with cut off • 92% efficiency with fanless, no-noise operation • Automatic identification circuit and pre-charge mode • Protection: over load, over voltage, over temperature, short circuit, reverse polarity • Compact plastic case, 210 x 108 x 55mm, 1.30kg per piece • Colour black or customised

Technical Specifications

• Model: FY42007000 • Product name: 40V 42V 7A lawn mower charger for 36V 10S lithium Li-ion battery • Input: 100-240V, 50-60Hz • Output options: 42V 7A / 40V 7A • Power: 294W • Efficiency: 92% • Charge mode: CC-CV-float charge / cut off • Size: 210 x 108 x 55mm • Weight: 1.30kg per piece • Housing material: PC fireproof material, plastic case • Protection: short circuit, overload, over voltage, over temperature, reverse polarity • Certification: UL, FCC, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, KC, CCC • MOQ: 100 PCS

Applications

• Robotic and manual lawn mowers • Outdoor power equipment • E-bikes • Electric scooters • Robotics and AGV • Lithium battery packs

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
