Fuyuang 33.6V 3.5A Lithium Battery Charger 117.6W for Robot Dog 8S 29.6V Li-ion Pack, Ebike Scooter Drone OEM ODM

Fuyuang 33.6V 3.5A Lithium Battery Charger 117.6W for Robot Dog 8S 29.6V Li-ion Pack, Ebike Scooter Drone OEM ODM

Name: Fuyuang 33.6V 3.5A Lithium Battery Charger 117.6W for Robot Dog 8S 29.6V Li-ion Pack, Ebike Scooter Drone OEM ODM
Brand: Fuyuang
Rating: 5.0 (27 reviews)

The Fuyuang FY3363500 is a desktop lithium battery charger with a 33.6V 3.5A output rated 117.6W and a universal 100-240Vac 50/60Hz input. It is configured for 8S 29.6V lithium-ion packs and serves as a replacement or OEM charger for quadruped robot platforms. Charging efficiency reaches 92%, and the protection set covers over-current, over-voltage, over-temperature and short circuit. DC connector options include 5.5x2.1mm, 5.5x2.5mm, XLR, M12 and M16, all customisable. The charger is aimed at e-bikes, e-scooters, robots, drones and industrial equipment. Fuyuan Electronic Co., Ltd has built power supplies since 2005 and operates 108,000 m2 of production space across two bases in Dongguan and Yongzhou with 450 employees. The company has developed 3,000+ models from 60W to 10KW, and this charger is covered by a 3-year warranty.

Model:
FY3363500
Brand:
Fuyuang
Code:
FY3363500


Availability:

Product Overview

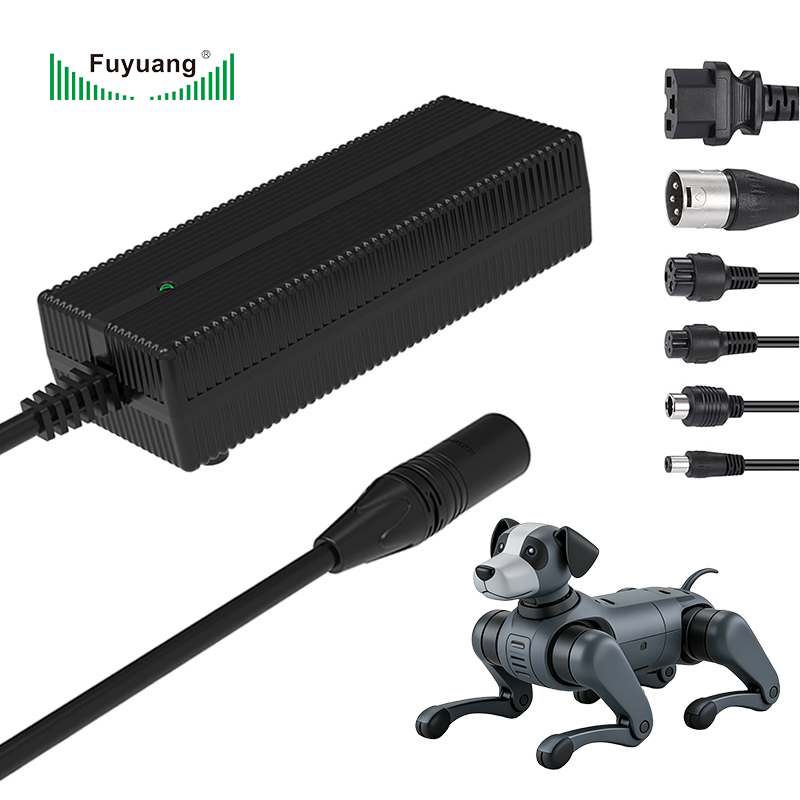

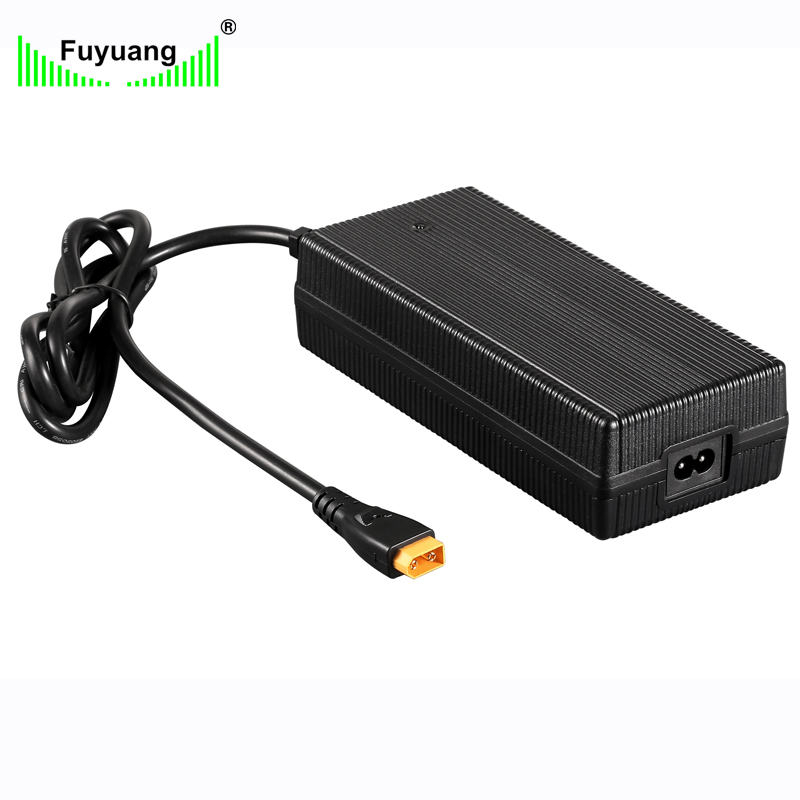

The FY3363500 is a desktop-class lithium battery charger with a 33.6V 3.5A output (117.6W) and a 100-240Vac 50/60Hz universal input. It is matched to 8S 29.6V lithium-ion battery packs used in quadruped robots and similar mobile platforms. Charging efficiency is 92%, the design is fanless for quiet operation, and the black housing carries an LED charging indicator for at-a-glance status.

Key Features

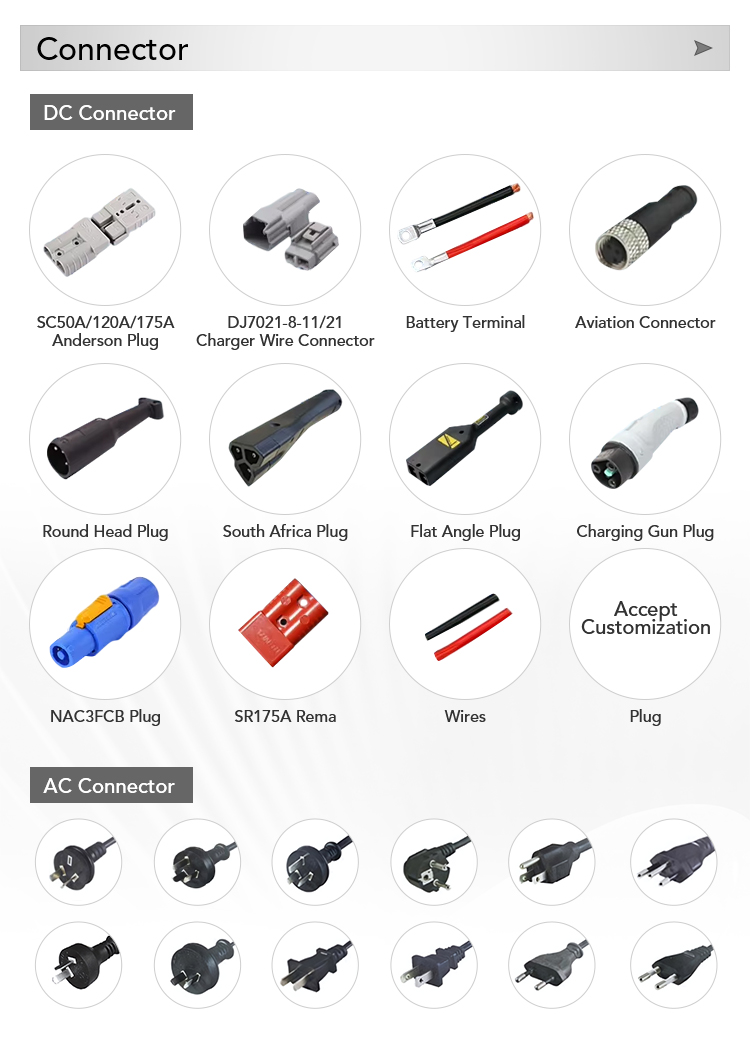

• 33.6V 3.5A (117.6W) output for 8S 29.6V Li-ion battery packs • Universal 100-240Vac 50/60Hz input • 92% charging efficiency • Protection set of OCP, OVP, OTP and SCP • LED charging indicator • DC connectors: 5.5x2.1mm, 5.5x2.5mm, XLR, M12, M16, customisable • Suitable for robot, e-bike, e-scooter, drone and industrial applications • Compact black desktop housing with OEM/ODM support

Technical Specifications

• Model Number: FY3363500 • Brand: Fuyuang • Product name: 33.6V 3.5A lithium battery charger • Type: desktop • Input: 100-240Vac 50/60Hz • Output: 33.6V 3.5A (117.6W) • Output power: 117.6W • Efficiency: 92% • Protection: OCP, OVP, OTP, SCP • DC connectors: 5.5x2.1mm, 5.5x2.5mm, XLR, M12, M16, customisable • Color: black; AC plug types: AU, EU, UK, US, JP • Certification: UL, cUL, GS, CE, RoHS, REACH, SAA, PSE, CCC • Warranty: 3 years; MOQ: 100 PCS

Applications

• Quadruped robot dogs and mobile robots • Electric bikes • Electric scooters • Drones and UAV platforms • Industrial equipment

Customization & Service

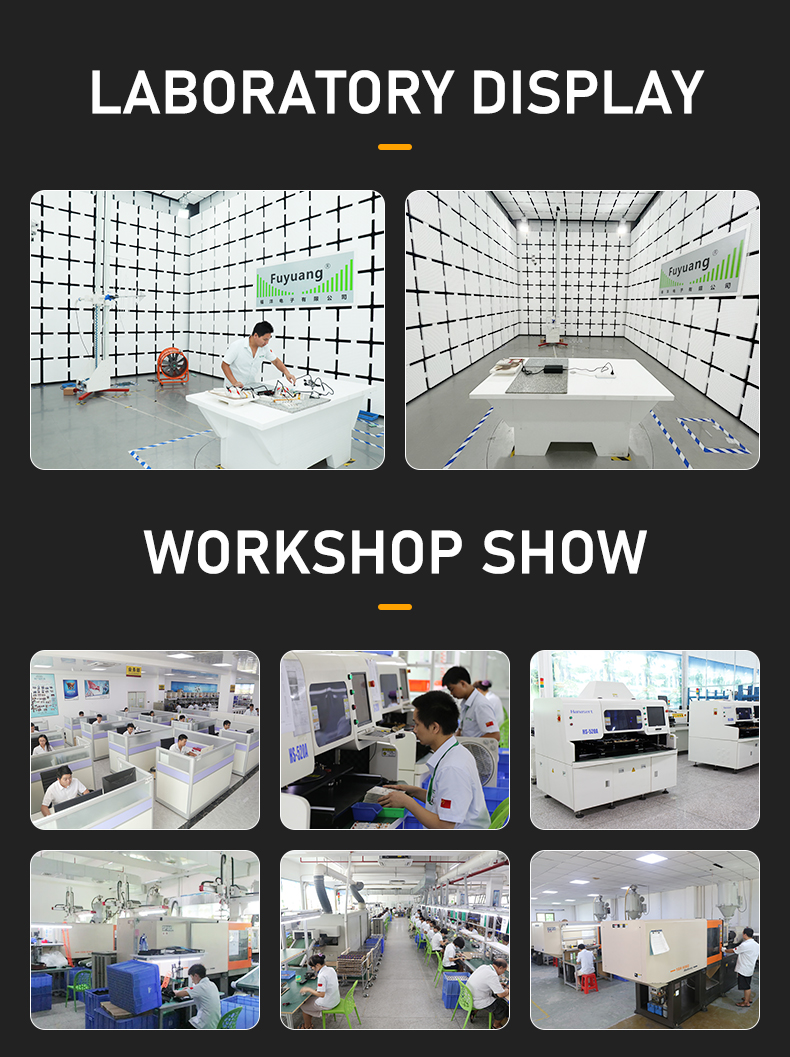

OEM and ODM services are available on the FY3363500, including custom output voltage and current, charging profile, DC connector and cable, housing colour, private labeling, LOGO printing and packaging. Compliance testing can be prepared in the company CNAS-standard EMC laboratory before formal certification. Every unit is 100% factory inspected and carries a 3-year warranty. Minimum order quantity is 100 PCS.
