Fuyuang 240W GaN Fast Battery Charger 29.2V-58.4V for E-Bike, E-Scooter, AGV and Drone Battery Packs

Fuyuang 240W GaN Fast Battery Charger 29.2V-58.4V for E-Bike, E-Scooter, AGV and Drone Battery Packs

Name: Fuyuang 240W GaN Fast Battery Charger 29.2V-58.4V for E-Bike, E-Scooter, AGV and Drone Battery Packs
Brand: Fuyuang
Rating: 5.0 (96 reviews)

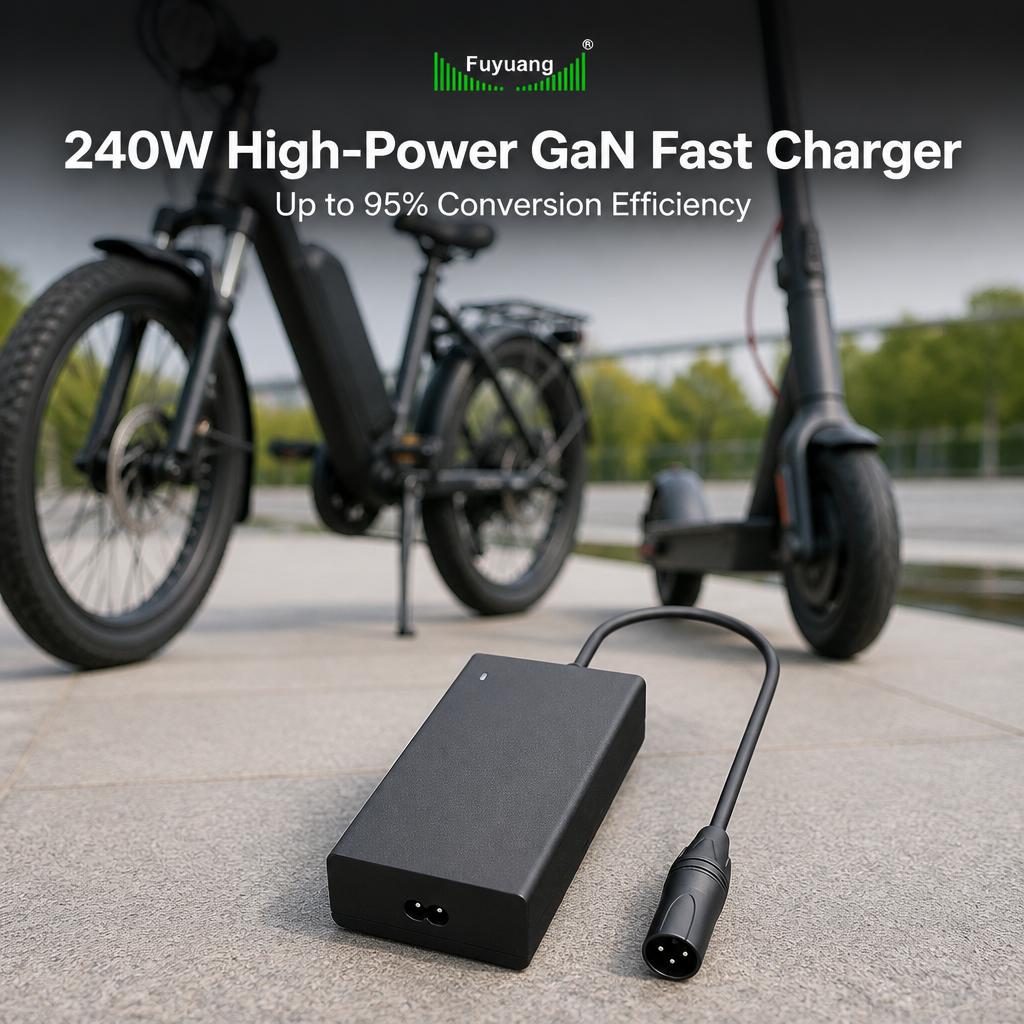

The Fuyuang FY5460000 is a 240W GaN fast battery charger that combines high power density with a super slim desktop housing. Using gallium nitride semiconductors, it reaches 95% conversion efficiency and generates less heat than conventional silicon designs, while remaining compact and lightweight for portable use. The charger accepts 100-240Vac 50/60Hz input and provides outputs such as 58.4V 4A, 54.6V 4A, 42V 5A and 29.2V 8A,with an adjustable 1-15A range across 14.6V, 29.2V, 29.4V, 42V, 54.6V, 58.4V and 67.2V variants. Built-in safeguards cover over-temperature, over-voltage, over-current, short circuit, reverse polarity, spark-free connection, auto cutoff, pre-charge and timed protection (the last five are optional customizable features). Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY5460000
Brand:
Fuyuang
Code:
FY5460000


Availability:

Product Overview

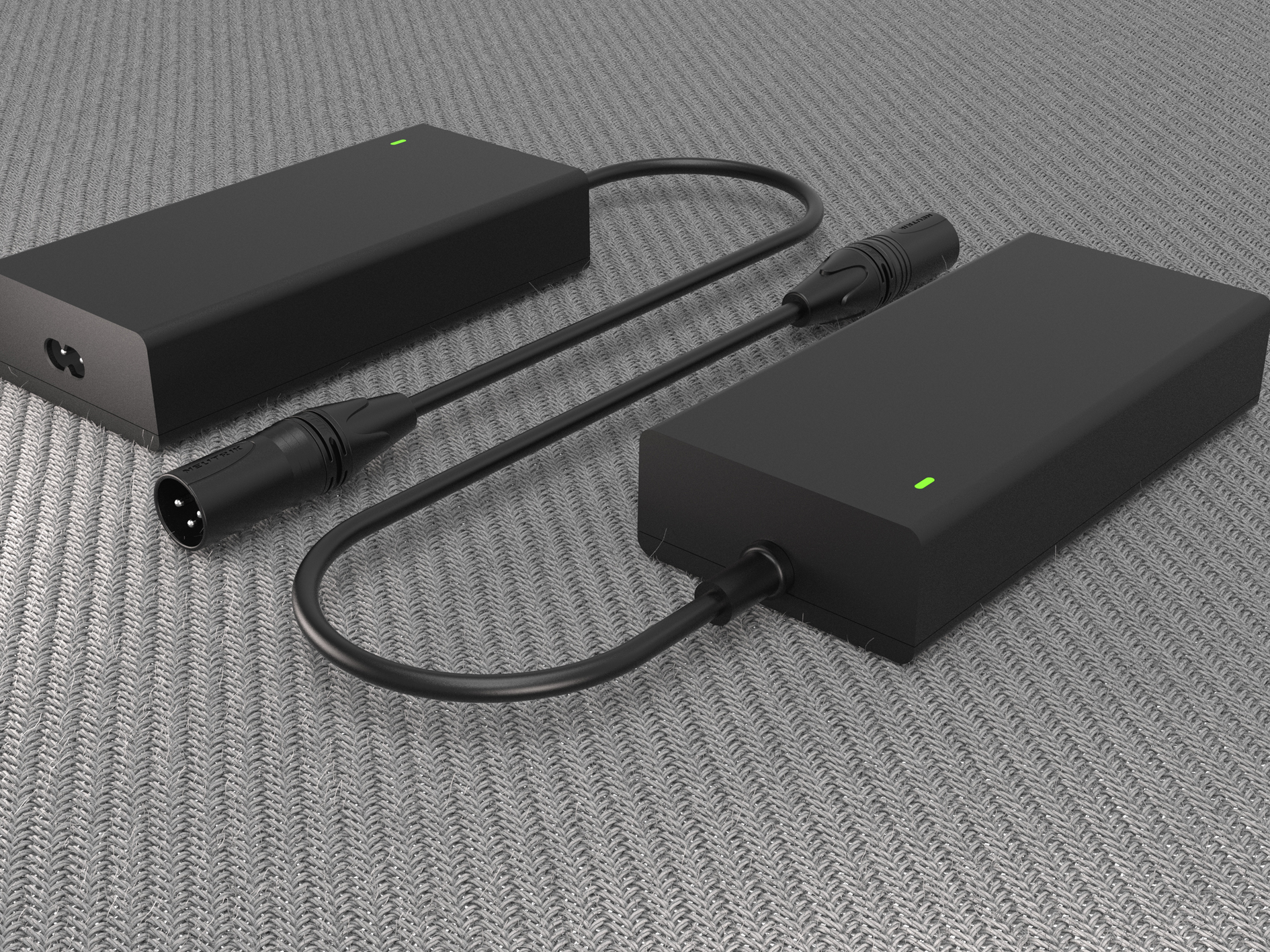

The FY5460000 is a 240W GaN (gallium nitride) fast charger for e-bikes, e-scooters, hoverboards, AGVs, delivery robots, drones and portable power stations. It is also suited to industrial portable tools, test instruments, medical monitors and solar storage systems. The super slim, lightweight housing delivers a high power density for a 240W unit, while silent operation and low thermal rise allow indoor and outdoor use. An intelligent charging algorithm adapts current and voltage to the battery chemistry to extend pack life.

Key Features

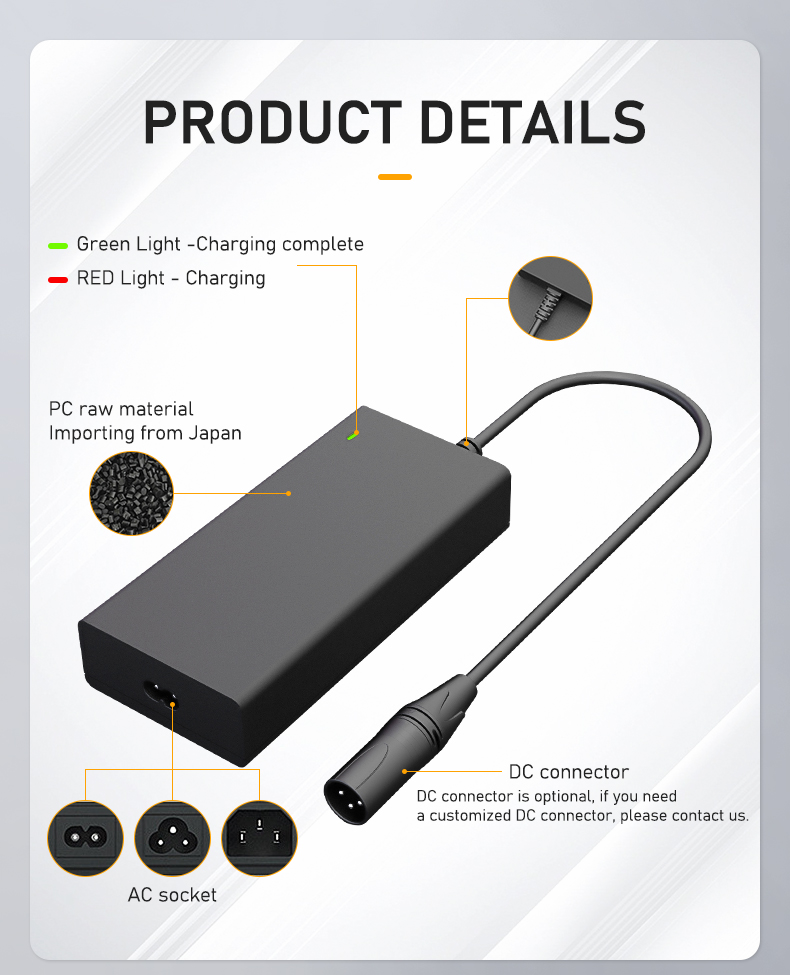

• 240W output with next-generation GaN semiconductor technology • Up to 95% conversion efficiency with lower energy loss and heat • Super slim, lightweight housing for easy portability • Intelligent charging algorithm adapts current and voltage to the battery chemistry • Nine safeguards: OTP, OVP, OCP, SCP, reverse polarity, spark-free connection, auto cutoff, pre-charge and timed protection • Timed, pre-charge, spark-free, auto-cutoff and reverse-polarity protections are optional customizable features • DC connectors: 5521 / 5525 / XLR / RCA / XT60, customizable • 3-year warranty; AU, EU, UK, US and JP plug options

Technical Specifications

• Model: FY5460000 • Input: 100-240Vac 50/60Hz • Output power: 240W • Output variants: 58.4V 4A / 54.6V 4A / 42V 5A / 29.2V 8A • Adjustable output range: 14.6V, 29.2V, 29.4V, 42V, 54.6V, 58.4V, 67.2V (1-15A) • Conversion efficiency: 95% • Function: super slim design, fast charging • Housing material: ABS, fireproof PC; colour black • Certification: CE, FCC, SAA, RoHS, UKCA, UL • MOQ: 100 PCS

Applications

• E-bikes and e-scooters • Hoverboards and personal mobility devices • AGVs, delivery robots and drones • Portable power tools and test instruments • Medical devices and portable monitors • Solar storage systems and portable power stations

Customization & Service

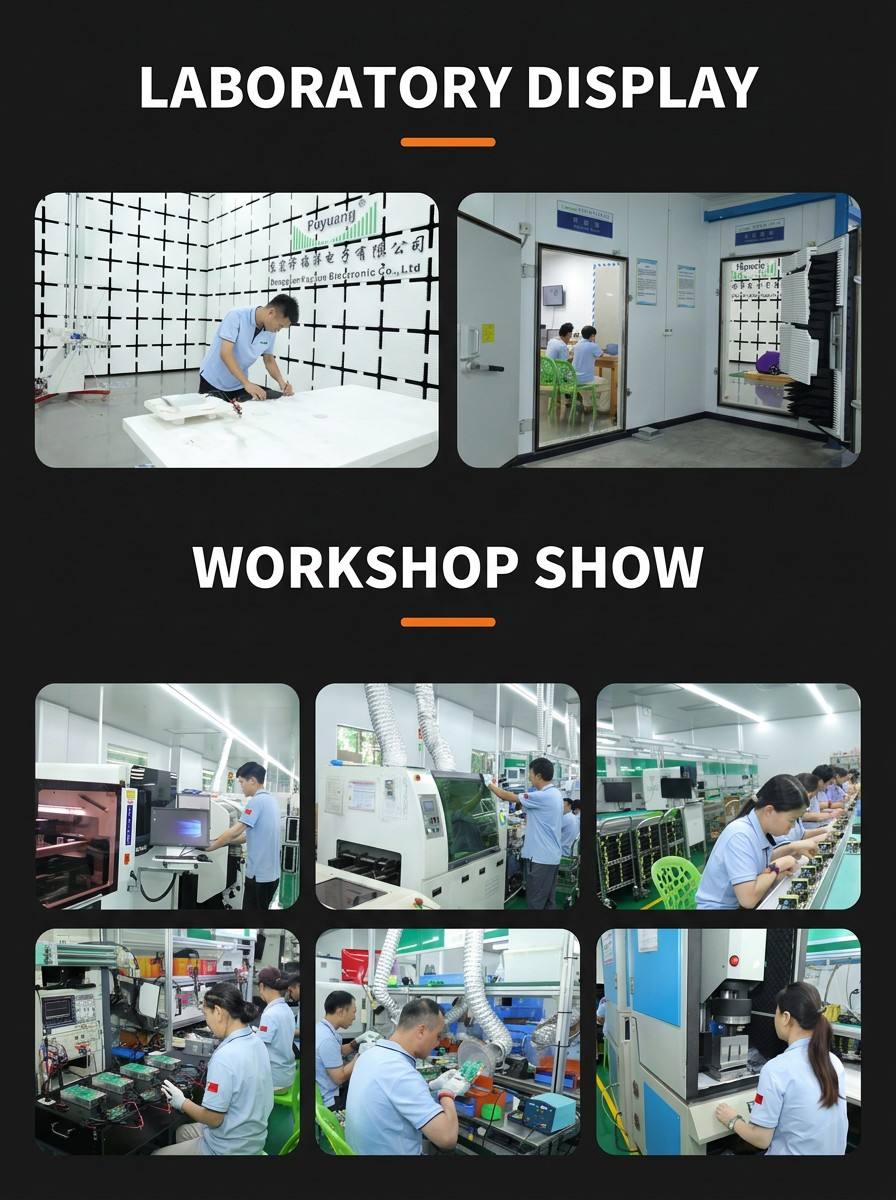

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 100 PCS. Certifications held on this platform include CE, FCC, SAA, RoHS, UKCA and UL.
