Fuyuang Level VI Switching Power Supply 12V 24V 200W Desktop AC DC Power Adapter

Fuyuang Level VI Switching Power Supply 12V 24V 200W Desktop AC DC Power Adapter

Name: Fuyuang Level VI Switching Power Supply 12V 24V 200W Desktop AC DC Power Adapter
Brand: Fuyuang
Rating: 5.0 (85 reviews)

This Fuyuang FY2408000 switching power supply is a desktop AC DC adapter delivering 12V and 24V DC at 2A, 3A, 4A, 5A, 6A, 8A or 10A, with a 200W class rating. Typical duty includes electric equipment, electric tools and LED lighting. Efficiency is above 89% and the design complies with Efficiency Level VI, so standby losses stay low. Short-circuit, over-current and over-voltage protection are built in, and the enclosure measures 178*80*46mm at 0.78kgs and is available in black or white. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty.

Model:
FY2408000
Brand:
Fuyuang
Code:
FY2408000


Availability:

Product Overview

The FY2408000 is a Level VI switching power supply presented as a desktop AC DC power adapter. It provides 12V and 24V DC output across 2A, 3A, 4A, 5A, 6A, 8A and 10A variants within a 200W class rating. It is designed for electric equipment, electric tools and LED lighting, combining low standby power with a compact desktop format.

Key Features

• Efficiency Level VI compliant design with efficiency above 89% • 12V and 24V DC output options in a 200W class • Output currents from 2A to 10A • Universal desktop form factor, 178*80*46mm at 0.78kgs • Short circuit, over-current and over-voltage protection • Suitable for electric equipment, electric tools and LED lighting • Colour options: black or white • 3-year warranty; OEM/ODM accepted

Technical Specifications

• Model: FY2408000 • Product name: 12V 24V switching power supply • Output type: DC • Output voltage: 12V / 24V • Output current options: 2A / 3A / 4A / 5A / 6A / 8A / 10A • Power class: 200W • Efficiency: above 89% • Efficiency level: Level VI • Connection: desktop • Dimension: 178*80*46mm • Weight: 0.78kgs • Color: black / white • Protection: short circuit, over-current, over-voltage • Certification: UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • Warranty: 3 years • MOQ: 100 PCS

Applications

• Electric equipment • Electric tools • LED lighting • Industrial and household electronics

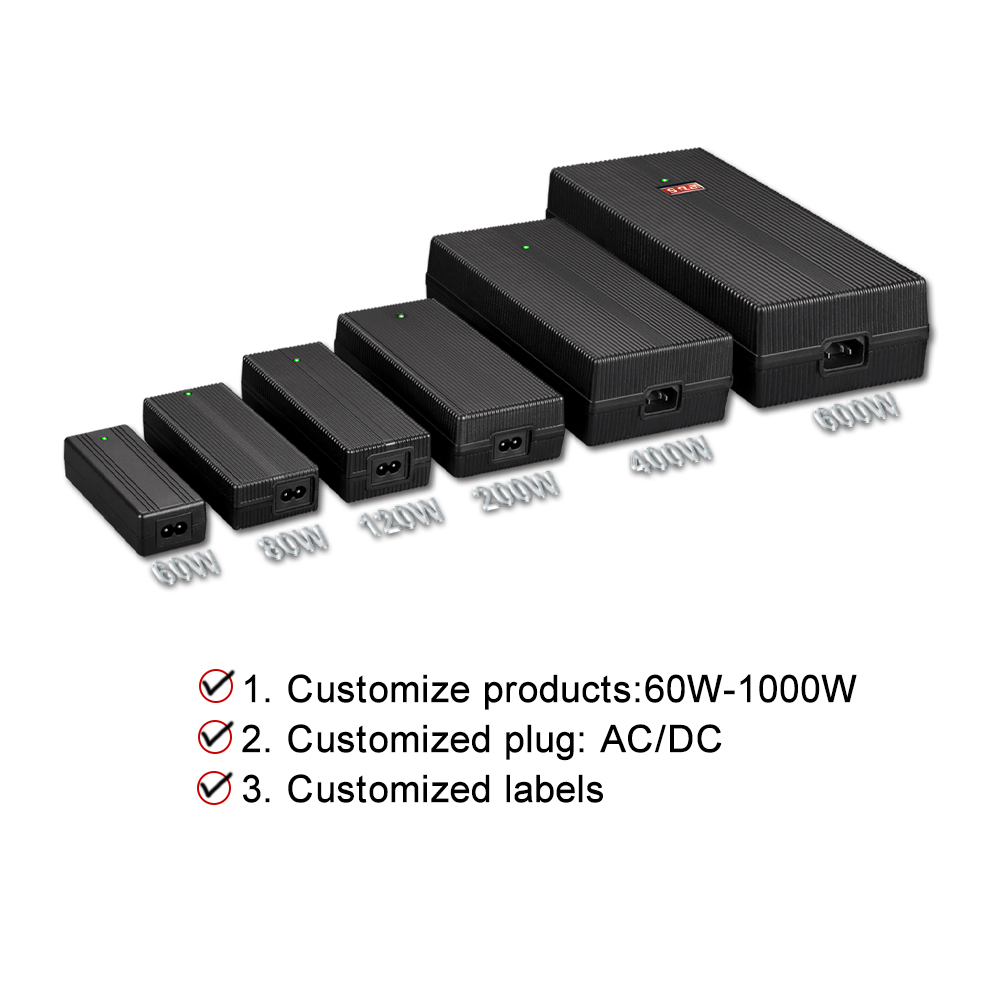

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and connector selection. Engineering support is backed by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be shortened. Every unit is 100% factory inspected and receives 4-8 hours of full-load burn-in, and this product carries a 3-year warranty. Standard MOQ is 100 PCS.
