Fuyuang 29.4V 3A 88.2W Smart Battery Charger and Industrial Power Supply for Robotics, E-bike and Marine

Fuyuang 29.4V 3A 88.2W Smart Battery Charger and Industrial Power Supply for Robotics, E-bike and Marine

Name: Fuyuang 29.4V 3A 88.2W Smart Battery Charger and Industrial Power Supply for Robotics, E-bike and Marine
Brand: Fuyuang
Rating: 5.0 (56 reviews)

The Fuyuang FY2940000 is a desktop smart battery charger that also serves as an industrial power supply. It delivers 29.4V 3A (88.2W) from a 100-240Vac input, and the family covers 12.6V, 29.4V, 42V, 54.6V, 67.2V and 84V at 3A with power levels from 24W to 3000W. It is used on electric vehicles, e-bikes, scooters, motorcycles, robotics, marine equipment and industrial systems, and works with LiFePO4, lithium, lithium-ion and lead-acid chemistries from 12V to 108V. Protection covers over-charging, over-current, over-voltage, short circuit and fire risk, with fanless natural convection cooling. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2940000
Brand:
Fuyuang
Code:
FY2940000


Availability:

Product Overview

The FY2940000 is a multi-purpose desktop charger and power supply with a 29.4V 3A / 88.2W rating and a universal 100-240Vac 50/60Hz input. On the same platform the output family runs 12.6V, 29.4V, 42V, 54.6V, 67.2V and 84V at 3A, with power options from 24W up to 3000W. It charges high-speed and is intended for battery charging plus DC power duties on electric vehicles, e-bikes, scooters, motorcycles, robotics, marine and industrial equipment, with connector options including XLR, Anderson and ring terminals as well as standard barrel plugs.

Key Features

• Dual purpose: battery charger and industrial power supply • 29.4V 3A, 88.2W output with universal 100-240Vac input • Output family: 12.6V / 29.4V / 42V / 54.6V / 67.2V / 84V at 3A • Power range from 24W to 3000W across the platform • High speed charging with 95% efficiency • Fanless design, cooling by natural air convection • Fireproof, over-charging, over-current, over-voltage and short circuit protection • Connector options: 5.5x2.5, 5.5x2.1, XLR, Anderson, ring terminal, customisable

Technical Specifications

• Model: FY2940000 • Type: desktop charger, fast charger, power supply adapter • Input: AC 100-240Vac, 50/60Hz • Output: 29.4V 3A (88.2W) • Output family: 12.6V 3A / 29.4V 3A / 42V 3A / 54.6V 3A / 67.2V 3A / 84V 3A • Power range: 24W / 60W / 75W / 120W / 150W / 200W / 300W / 400W / 600W / 800W / 1000W / 1200W / 1500W / 3000W • Efficiency: 95% • Battery compatibility: 12V / 24V / 36V / 48V / 60V / 72V / 84V / 96V / 108V LiFePO4, lithium and lead-acid • Housing material: ABS, aluminium, aluminium alloy, PC fireproof material • Protection: fireproof, over-charging, over-current, over-voltage, short circuit • Certification: CE, FCC, RoHS, UKCA, UL, SAA, KC • MOQ: 100 PCS

Applications

• Electric vehicles, e-bikes and scooters • Electric motorcycles • Robotics, AGV and AMR • Marine and outdoor equipment • Golf carts • Industrial machinery • Electric tools • Medical devices

Customization & Service

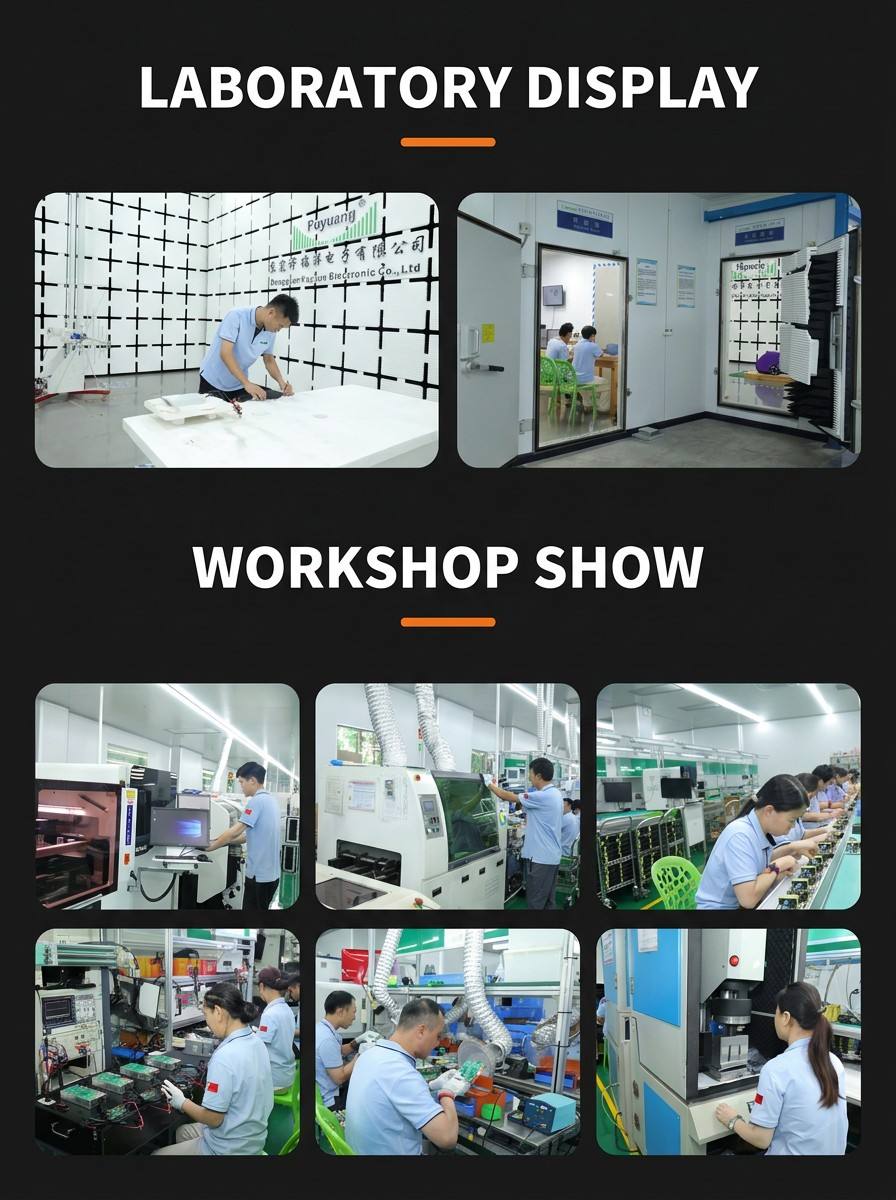

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
