Fuyuang 240W GaN AC/DC Power Supply Charger 12V-67.2V for Audio, Medical, Industrial and E-Bike

Fuyuang 240W GaN AC/DC Power Supply Charger 12V-67.2V for Audio, Medical, Industrial and E-Bike

Name: Fuyuang 240W GaN AC/DC Power Supply Charger 12V-67.2V for Audio, Medical, Industrial and E-Bike
Brand: Fuyuang
Rating: 5.0 (38 reviews)

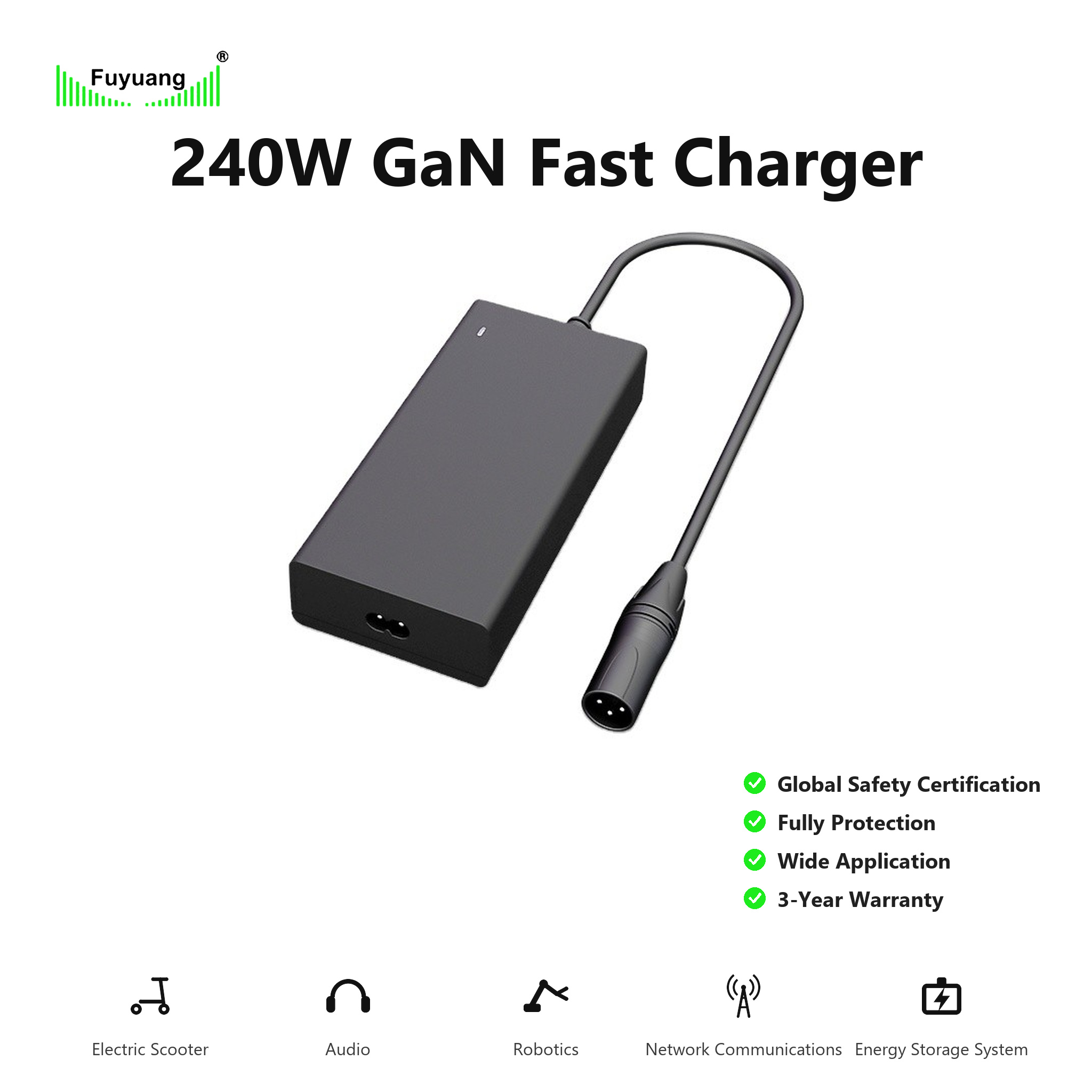

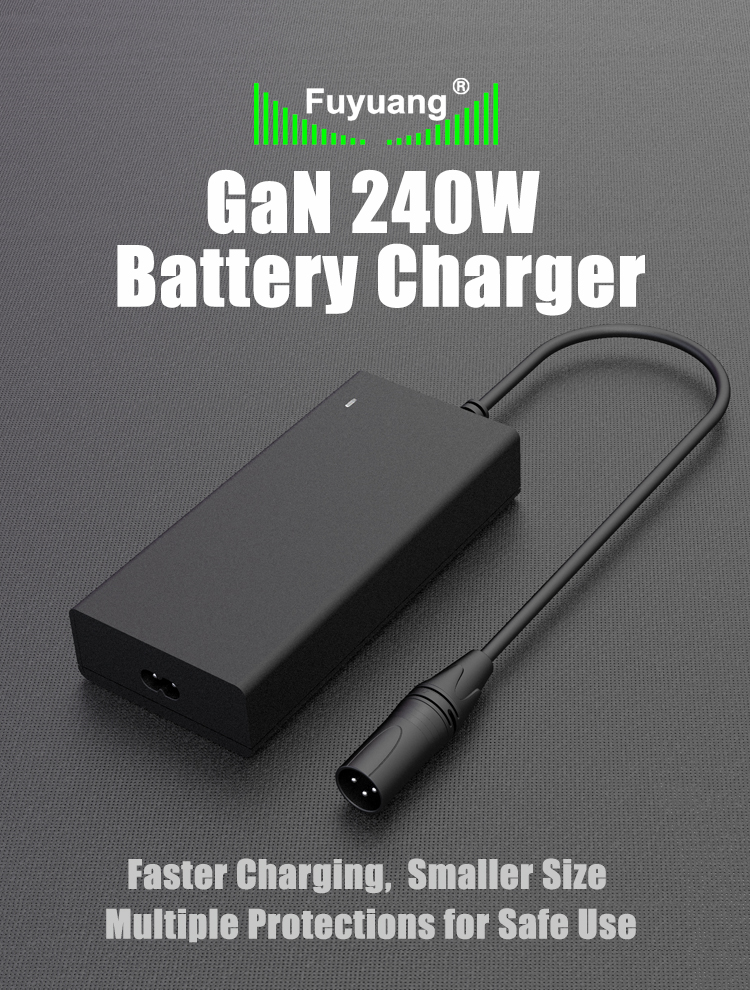

The Fuyuang FY4200000 is a 240W GaN AC/DC power supply charger that serves both as a battery charger and as a constant-voltage supply. It provides outputs such as 12V 20A, 24V 10A, 48V 5A, 29.4V 7A, 42V 5A, 54.6V 4A, 67.2V 3.5A and 14.6V 15A from a 100-240Vac 50/60Hz input, with a compact footprint of 161 x 74.6 x 33 mm. Gallium nitride technology delivers high output in a small housing with less heat, and the unit protects against over-charging, over-current, over-voltage and short circuit. Typical applications include audio and video equipment, medical devices, industrial automation, e-bikes and scooters. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY4200000
Brand:
Fuyuang
Code:
FY4200000


Availability:

Product Overview

The FY4200000 is a 240W GaN AC/DC power supply charger for equipment that needs a stable DC rail or a battery recharge. Outputs cover 12V 20A, 24V 10A, 48V 5A and voltage-specific charging profiles up to 67.2V 3.5A. The compact 161 x 74.6 x 33 mm housing fits where a conventional 240W supply would not, and the multi-protection design suits continuous operation in audio, medical, industrial and mobility applications.

Key Features

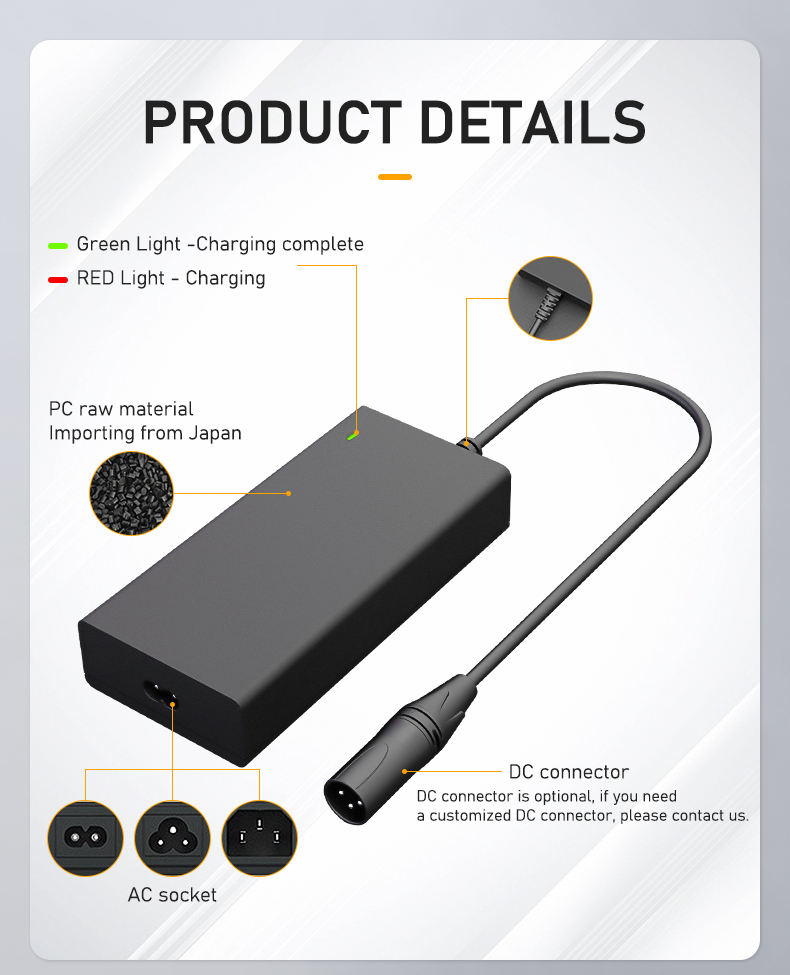

• 240W GaN AC/DC power supply and charger in one unit • Outputs: 12V 20A / 24V 10A / 48V 5A / 29.4V 7A / 42V 5A / 54.6V 4A / 67.2V 3.5A / 14.6V 15A • Universal 100-240Vac 50/60Hz input • Compact size of 161 x 74.6 x 33 mm • Protection: fireproof, over-charging, over-current, over-voltage and short circuit • DC connectors: 5525 / 5521 / RCA / XLR / XT60 / Anderson / GX16 / GX12, customizable • Private mould housing in ABS and fireproof PC; colour black • Plug types AU, EU, UK, US, JP

Technical Specifications

• Model: FY4200000 • Input: 100-240Vac 50/60Hz • Output power: 240W • Output variants: 12V 20A / 24V 10A / 48V 5A / 29.4V 7A / 42V 5A / 54.6V 4A / 67.2V 3.5A / 14.6V 15A • Size: 161*74.6*33 mm • Housing material: ABS, fireproof PC; colour black • Certification: UL, CE, PSE, FCC, KC, SAA, GS, UKCA, RoHS • MOQ: 100 PCS

Applications

• Audio and video equipment • Medical devices • Industrial automation and equipment • E-bikes and electric scooters • Electric tools • Home security systems and household appliances

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 100 PCS. Certifications held on this platform include UL, CE, PSE, FCC, KC, SAA, GS, UKCA and RoHS.
