Fuyuang IP67 24V 5A 120W AC/DC Power Supply Adapter 120W-400W for LED, CCTV and Industrial Use

Fuyuang IP67 24V 5A 120W AC/DC Power Supply Adapter 120W-400W for LED, CCTV and Industrial Use

Name: Fuyuang IP67 24V 5A 120W AC/DC Power Supply Adapter 120W-400W for LED, CCTV and Industrial Use
Brand: Fuyuang
Rating: 5.0 (30 reviews)

The Fuyuang FY2405000 is a sealed IP67 AC/DC power supply adapter delivering 24V 5A (120W) from a 100-240Vac 50/60Hz input. The platform covers 120W to 400W and output options include 19V 7A, 19V 8A, 24V 7A, 48V 3A, 51V 3A, 55V 3A and 58V 3.5A, making it suitable for a wide range of industrial and commercial equipment. Air cooling with multi-protection circuitry keeps the adapter stable in continuous duty, and 95% efficiency reduces heat inside the enclosure. Typical users include LED displays and lighting, CCTV systems, monitors, POS terminals, automation equipment, medical devices and audio/video products. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2405000
Brand:
Fuyuang
Code:
FY2405000


Availability:

Product Overview

The FY2405000 is a constant-voltage power supply adapter for equipment that needs a reliable DC rail rather than a battery. It delivers 24V 5A (120W) with 100-240Vac input and IP67 sealing for outdoor or wet locations. The 120W-400W platform supports outputs such as 19V, 24V, 48V, 51V, 55V and 58V, covering LED displays, CCTV, monitors, POS terminals, industrial robotics, medical devices and audio equipment. Air cooling and multi-protection circuitry keep long-run operation stable.

Key Features

• IP67 waterproof adapter housing with air cooling • 24V 5A (120W) output from a universal 100-240Vac 50/60Hz input • Platform power range 120W / 150W / 200W / 250W / 300W / 350W / 400W • Output variants: 19V 7A / 19V 8A / 55V 3A / 48V 3A / 51V 3A / 24V 7A / 58V 3.5A • 95% conversion efficiency • Multi-protection: fireproof, over-charging, over-current, over-voltage and short circuit • Connectors: 5.5*2.5 / 5.5*2.1 / XLR / RCA / Anderson, customizable • Private mould housing; colour black; plug types AU, EU, UK, US, JP

Technical Specifications

• Model: FY2405000 • Input: AC 100-240Vac 50/60Hz • Output: 24V 5A (120W) • Output variants: 19V 7A / 19V 8A / 55V 3A / 48V 3A / 51V 3A / 24V 7A / 58V 3.5A • Power range: 120W / 150W / 200W / 250W / 300W / 350W / 400W • Efficiency: 95% • Key features: IP67 waterproof, air cooling, multi-protections • Housing material: ABS, fireproof PC; colour black • Certification: CE, FCC, RoHS, UKCA, UL, GS, PSE, SAA, KC, ETL • MOQ: 100 PCS

Applications

• LED displays and LED lighting • CCTV and security cameras • Monitors and POS terminals • Industrial robotics and automation • Medical devices • Audio and video equipment • Camera and game player accessories

Customization & Service

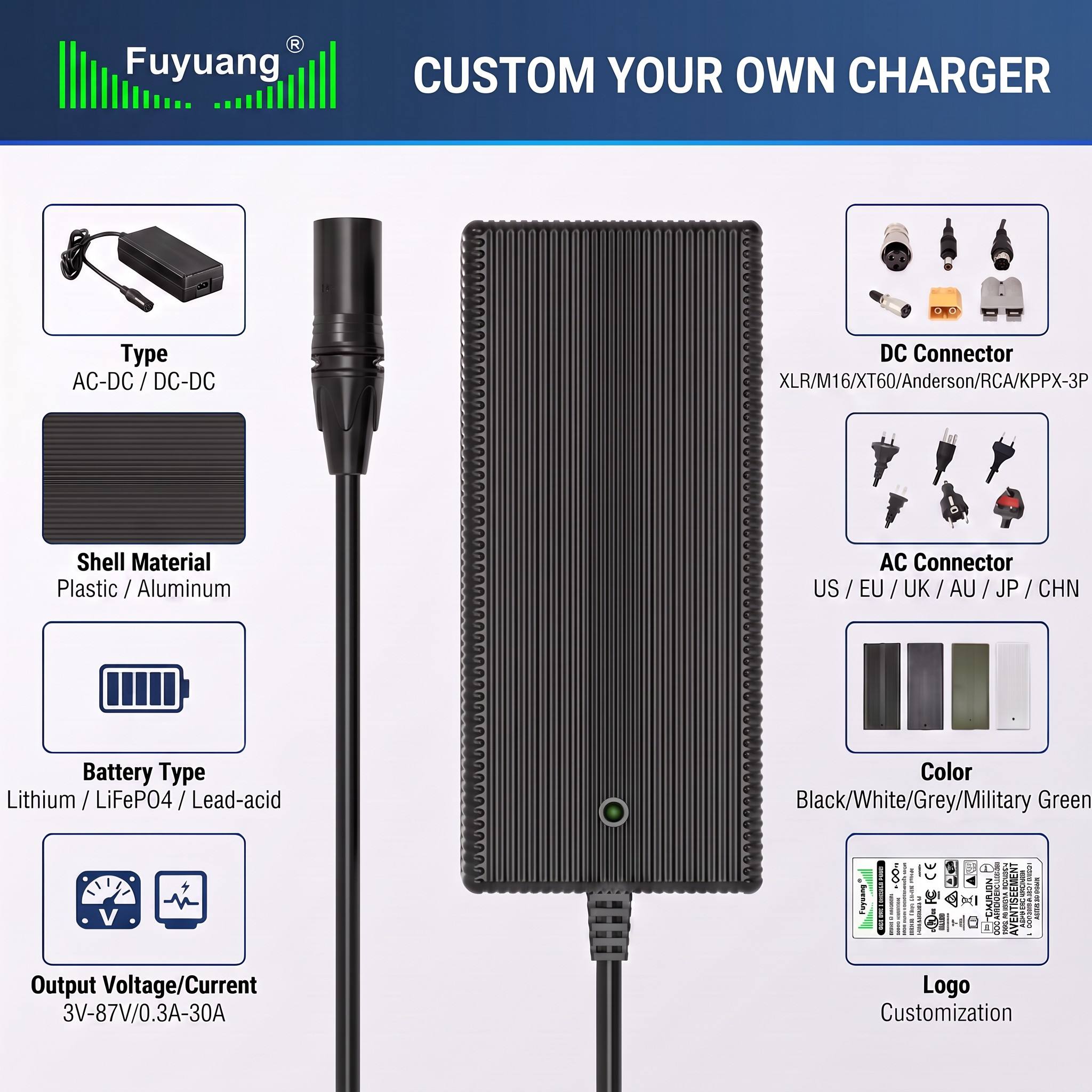

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 100 PCS. Certifications held on this platform include CE, FCC, RoHS, UKCA, UL, GS, PSE, SAA, KC and ETL.
