Fuyuang FY1202000 Constant Voltage 12V 2A LED Driver and Class 2 Power Supply 48W-120W for LED Lighting

Fuyuang FY1202000 Constant Voltage 12V 2A LED Driver and Class 2 Power Supply 48W-120W for LED Lighting

Name: Fuyuang FY1202000 Constant Voltage 12V 2A LED Driver and Class 2 Power Supply 48W-120W for LED Lighting
Brand: Fuyuang
Rating: 5.0 (81 reviews)

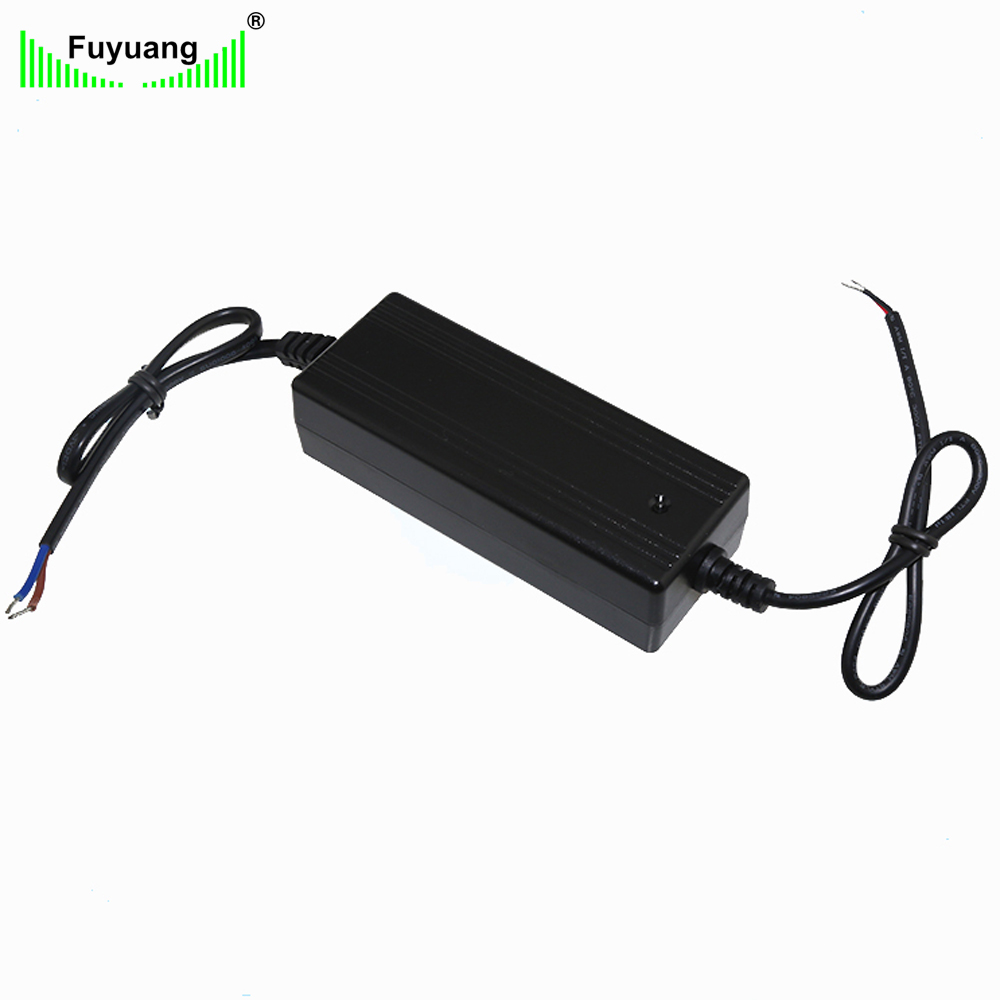

The Fuyuang FY1202000 is a constant voltage LED driver and Class 2 power supply with a 100-240Vac 50/60Hz input. Output options include 12V 2A, 12V 1.5A, 12V 3A, 12V 5A, 24V 5A and 24V 10A, with power ratings from 48W and 60W up to 120W. Efficiency is above 89% and cooling is fanless by free air convection, so the driver suits installations where noise and dust must be avoided. Protection covers short circuit, overload, over-voltage and over-temperature, and the housing is fireproof PC material in a compact DC-output format. Fuyuan Electronic Co., Ltd has manufactured LED power supplies since 2005 with 108,000 m2 of production space. Every unit carries a 3-year warranty.

Model:
FY1202000
Brand:
Fuyuang
Code:
FY1202000


Availability:

Product Overview

The FY1202000 is a constant voltage LED driver and Class 2 power supply with a 100-240Vac 50/60Hz input. Its output range covers 12V 2A, 12V 1.5A, 12V 3A, 12V 5A, 24V 5A and 24V 10A at 48W, 60W or 120W depending on the version. Designed for LED lighting, the driver cools without a fan by free air convection, which keeps operation silent and prevents dust ingress. Efficiency is above 89% and the housing uses fireproof PC material.

Key Features

• Constant voltage LED driver and Class 2 power supply • Output options: 12V 2A, 12V 1.5A, 12V 3A, 12V 5A, 24V 5A, 24V 10A • Power ratings: 48W, 60W and 120W • 100-240Vac 50/60Hz universal input • Efficiency above 89% • Fanless design, cooled by free air convection • Short circuit, overload, over-voltage and over-temperature protection • Fireproof PC housing with DC output, OEM/ODM design available

Technical Specifications

• Model: FY1202000 • Product type: constant voltage LED driver / Class 2 power supply • Input: 100-240Vac, 50/60Hz • Output: 12V 2A / 12V 1.5A / 12V 3A / 12V 5A / 24V 5A / 24V 10A • Output power: 48W / 60W / 120W • Efficiency: >89% • Cooling: fanless, free air convection • Protection: short circuit, overload, over-voltage, over-temperature • Port: DC output • Material: PC fireproof material • Color: black • Warranty: 3 years

Applications

• LED lighting and LED lamps • Constant voltage DC LED fixtures • Indoor and outdoor lighting projects • Signage and decorative lighting • General electric equipment

Customization & Service

Fuyuan Electronic Co., Ltd supports OEM and ODM projects on this LED power platform, including custom output voltage and current, custom DC connector, private labeling and LOGO printing. The CNAS-standard EMC laboratory enables pre-compliance testing before formal certification. Every driver is 100% factory inspected, burn-in tested at full load for 4-8 hours and covered by a 3-year warranty. MOQ is 100 PCS.
