Fuyuang IP65 Waterproof 24V 5A AC DC Power Adapter 120Vac to 24Vdc Power Supply

Fuyuang IP65 Waterproof 24V 5A AC DC Power Adapter 120Vac to 24Vdc Power Supply

Name: Fuyuang IP65 Waterproof 24V 5A AC DC Power Adapter 120Vac to 24Vdc Power Supply
Brand: Fuyuang
Rating: 5.0 (4 reviews)

The Fuyuang FY2405000 is an IP65 waterproof AC DC power adapter delivering 24Vdc at 5A, converting a 100-240V 50/60Hz input to a 24Vdc output. It is intended for electric equipment installed in damp or dusty environments. Efficiency is above 88%, and short-circuit, over-current and over-voltage protection are built in. The compact enclosure measures 154*60*36mm at 0.45kgs, and the DC connector can be customized to the equipment. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty.

Model:
FY2405000
Brand:
Fuyuang
Code:
FY2405000


Availability:

Product Overview

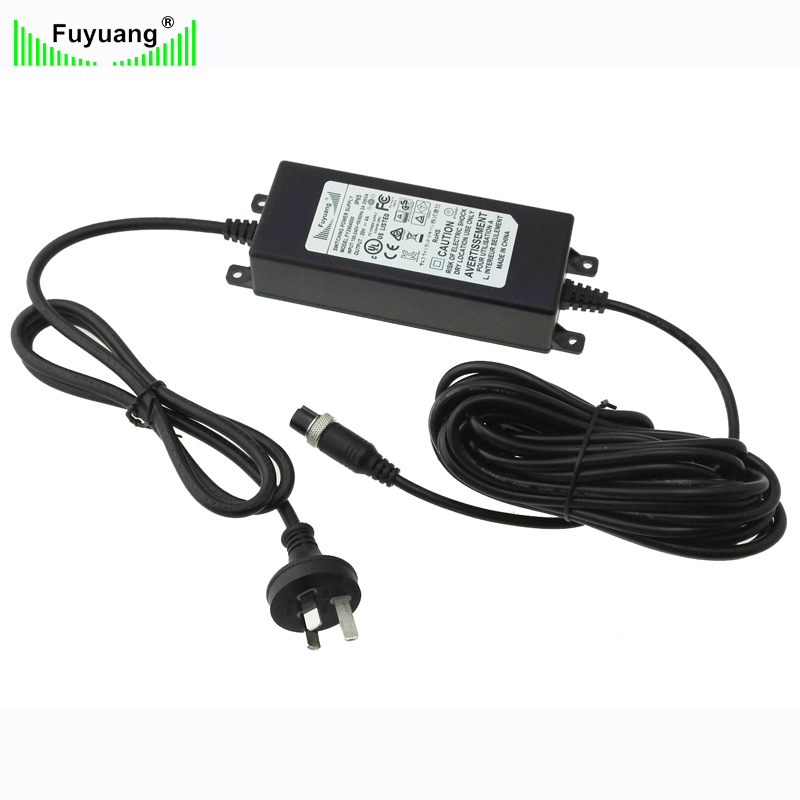

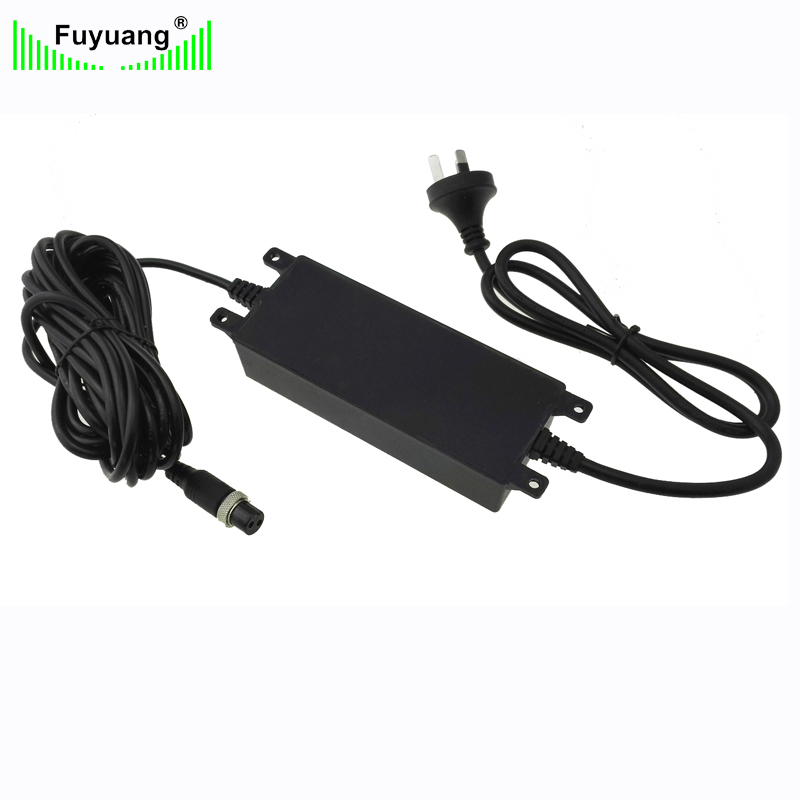

The FY2405000 is an IP65 waterproof AC DC power adapter providing 24Vdc 5A output from a universal 100-240V 50/60Hz input, including 120Vac mains supplies. The sealed construction suits electric equipment used outdoors or in humid areas. The compact 154*60*36MM housing weighs 0.45kgs, and the DC connector is customized to fit the target equipment.

Key Features

• IP65 waterproof rated enclosure for damp and outdoor installations • 24Vdc 5A output from a 120Vac / 100-240V input • Efficiency above 88% • Short circuit, over-current and over-voltage protection • Compact housing: 154*60*36mm, 0.45kgs • Customized DC connector • Designed for electric equipment power • 3-year warranty; OEM/ODM accepted

Technical Specifications

• Model: FY2405000 • Product name: AC DC power adapter 24V 5A, 120Vac to 24Vdc power supply • AC input: 100-240V, 50/60Hz • Output type: DC • Output: 24Vdc 5A • Ingress protection: IP65 waterproof • Efficiency: above 88% • Connection: desktop • DC connector: customized • Dimension: 154*60*36mm • Weight: 0.45kgs • Protection: short circuit, over-current, over-voltage • Usage: electric equipments • Certification: UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • Warranty: 3 years • MOQ: 200 PCS

Applications

• Electric equipment • Outdoor and damp-environment installations • Industrial power supplies • 24V DC powered devices

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, DC connector, cable length, private labeling and LOGO printing. Engineering support is backed by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be shortened. Every unit is 100% factory inspected and receives 4-8 hours of full-load burn-in, and this product carries a 3-year warranty.
