Fuyuan 24V 7.5A Desktop AC DC Switching Power Supply for E-bike, Hoverboard and Scooter

Fuyuan 24V 7.5A Desktop AC DC Switching Power Supply for E-bike, Hoverboard and Scooter

Name: Fuyuan 24V 7.5A Desktop AC DC Switching Power Supply for E-bike, Hoverboard and Scooter
Brand: Fuyuang
Rating: 5.0 (54 reviews)

The Fuyuan FY2407500 is a 24Vdc desktop switching power supply rated at 7.5A, with a 24V 6.25A variant available on the same platform. It is used for electric bikes, hoverboards and electric scooter motors. Efficiency is above 88% and the adapter runs from 100-240V 50/60Hz input. Short-circuit, over-current and over-voltage protection are included, and the compact housing measures 178*60*35mm at 0.78kgs in black or white. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty.

Model:
FY2407500
Brand:
Fuyuang
Code:
FY2407500


Availability:

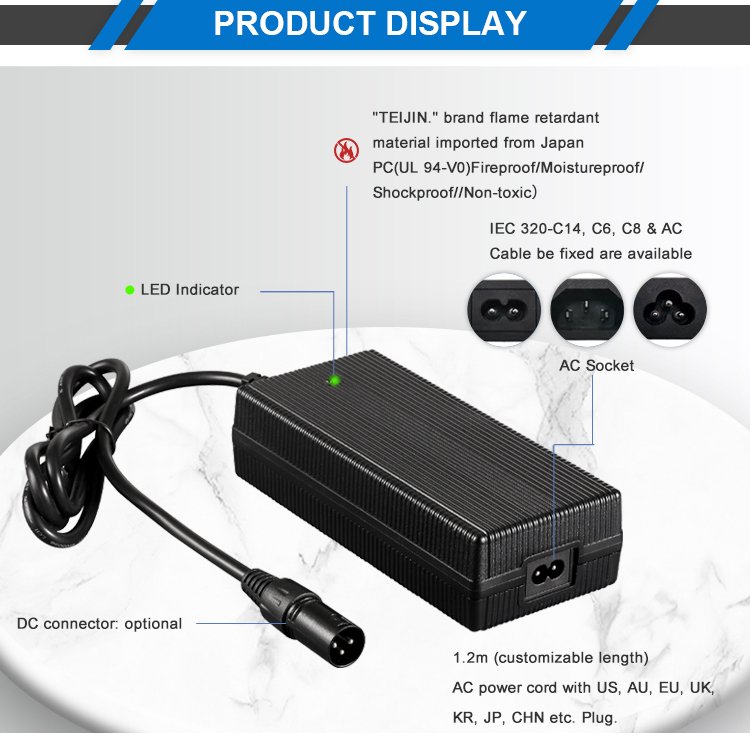

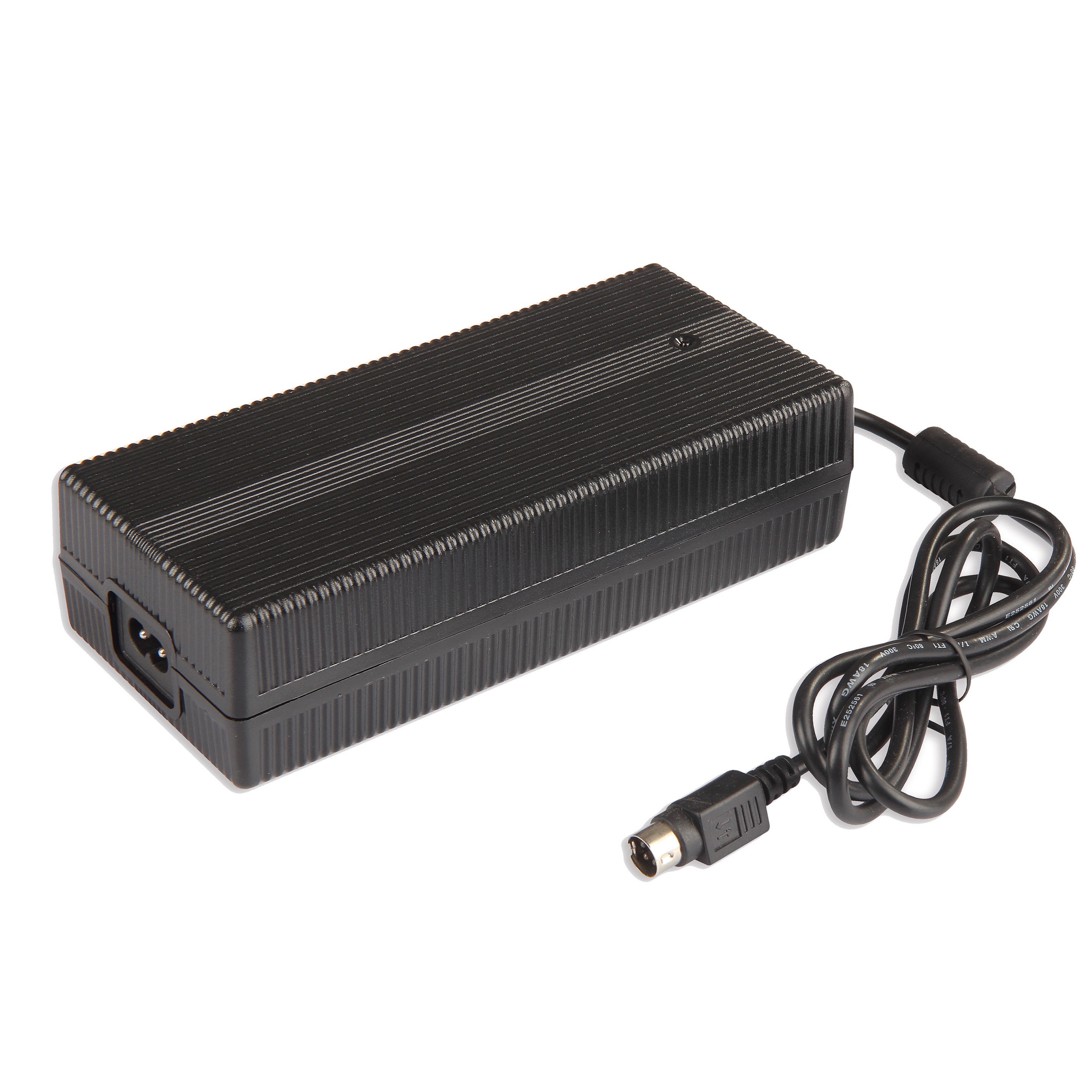

Product Overview

The FY2407500 is a 24Vdc desktop switching power supply built as an AC DC adapter. The standard rating is 24V 7.5A, and a 24V 6.25A version is available for applications needing lower current. It is commonly specified for electric bikes, hoverboards and electric scooter motors, combining a universal input with a compact desktop enclosure.

Key Features

• 24Vdc output at 7.5A, with a 24V 6.25A option • Universal 100-240V 50/60Hz AC input • Efficiency above 88% • Short circuit, over-current and over-voltage protection • Compact desktop housing 178*60*35mm, 0.78kgs • Designed for electric bikes, hoverboards and scooter motors • Colour options: black or white • 3-year warranty; OEM/ODM accepted

Technical Specifications

• Model: FY2407500 • Product name: 24Vdc 7.5A power adapter • Output type: DC • Output: 24Vdc 7.5A (also available 24V 6.25A) • Input: 100-240V, 50/60Hz • Efficiency: above 88% • Connection: desktop • Dimension: 178*60*35mm • Weight: 0.78kgs • Color: black or white • Protection: short circuit, over-current, over-voltage • Usage: electric bikes, hoverboard, electric scooter motor • Certification: UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • Warranty: 3 years • MOQ: 100 PCS

Applications

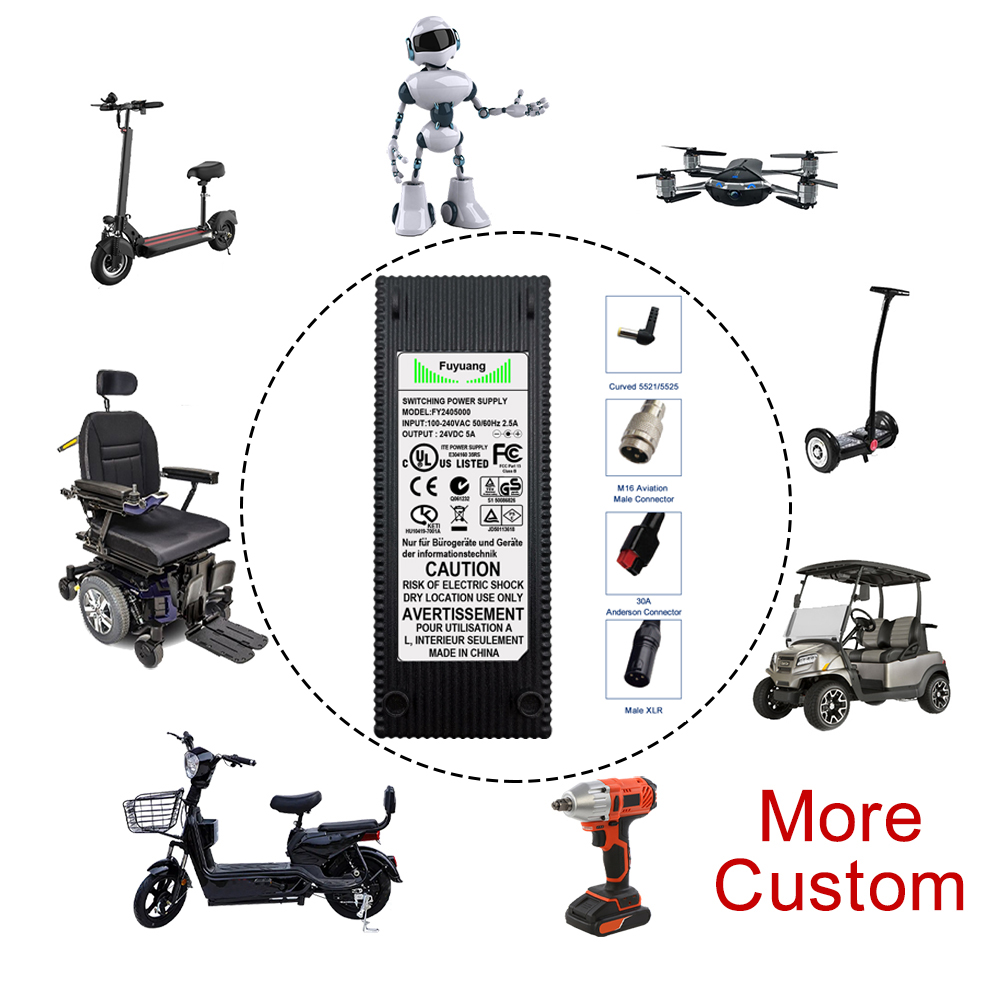

• Electric bikes and e-bikes • Hoverboards • Electric scooter motors • Electric mobility equipment • 24V DC powered devices

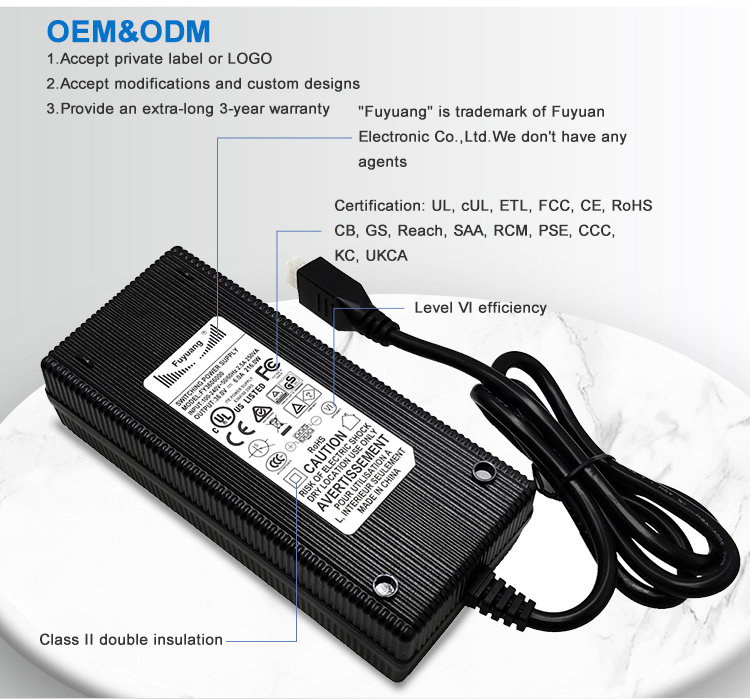

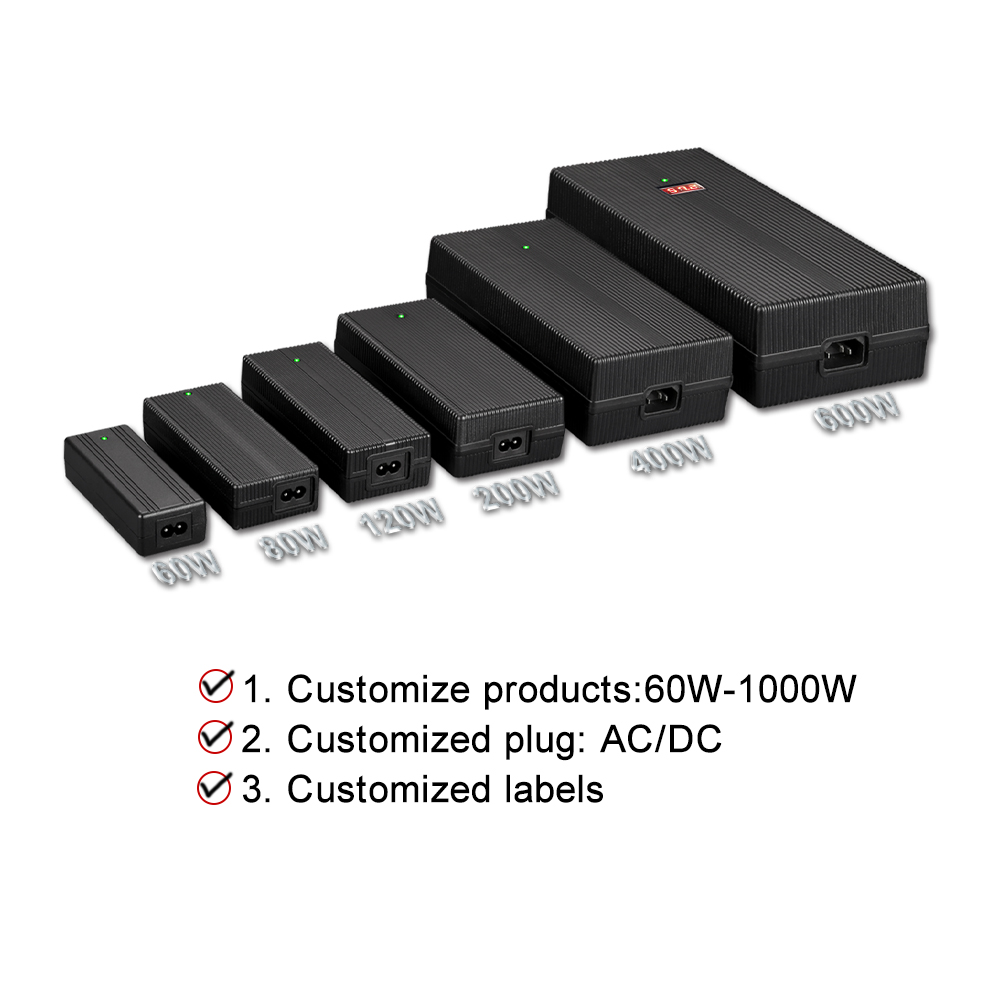

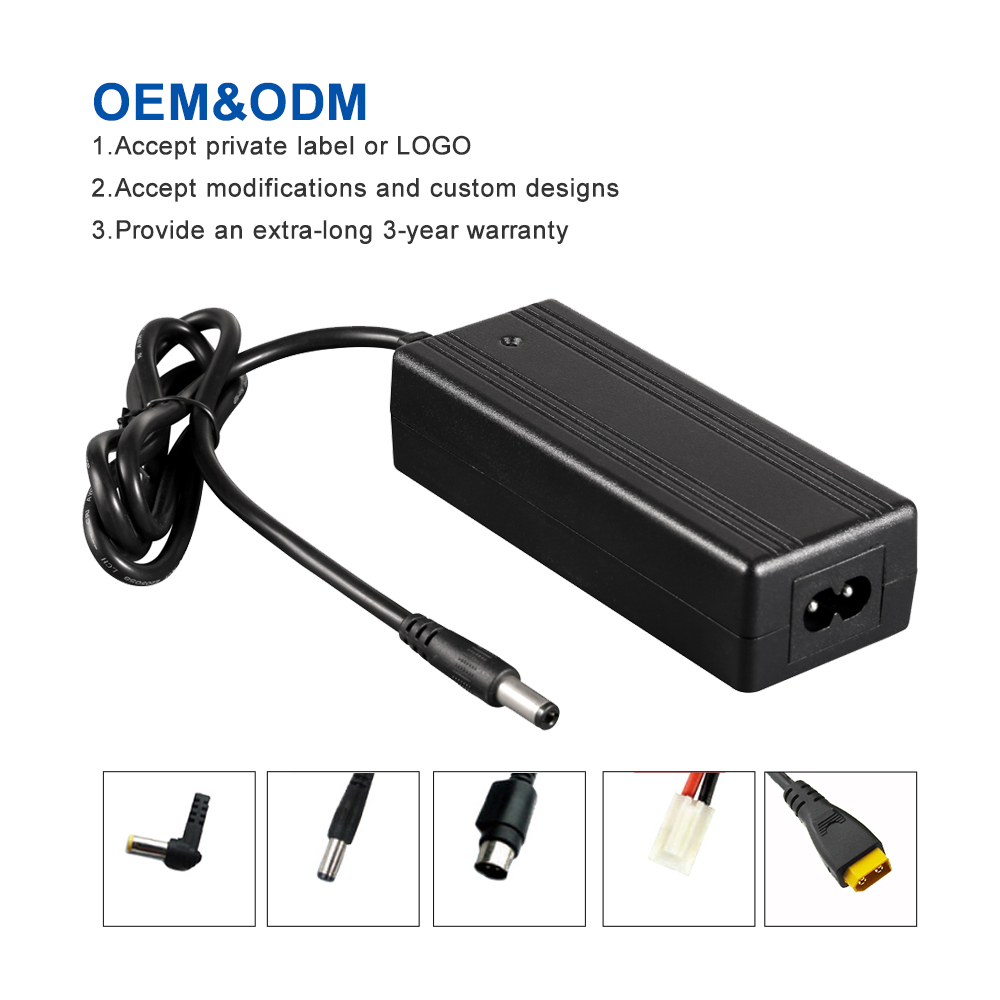

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and connector selection. Engineering support is backed by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be shortened. Every unit is 100% factory inspected and receives 4-8 hours of full-load burn-in, and this product carries a 3-year warranty. Standard MOQ is 100 PCS.
