Fuyuang FY2405000 24V 5A 120W Universal AC DC Desktop Power Adapter for Electric Equipment and LED Lighting

Fuyuang FY2405000 24V 5A 120W Universal AC DC Desktop Power Adapter for Electric Equipment and LED Lighting

Name: Fuyuang FY2405000 24V 5A 120W Universal AC DC Desktop Power Adapter for Electric Equipment and LED Lighting
Brand: Fuyuang
Rating: 5.0 (24 reviews)

The Fuyuang FY2405000 is a universal AC DC desktop power adapter with a 100-240V 50/60Hz input and a 24V 5A DC output on the 120W platform. Efficiency is above 88%, making it a practical supply for electric equipment and LED lighting. Short circuit, over-current and over-voltage protection are built in. The unit measures 154 x 60 x 36 mm, weighs 0.45 kg, uses a desktop DC output connection and is supplied in black. Fuyuan Electronic Co., Ltd, founded in 2005, manufactures this adapter in 108,000 m2 of production space in Dongguan and Yongzhou, producing over 3,000 models from 60W to 10KW. A 3-year warranty applies.

Model:
FY2405000
Brand:
Fuyuang
Code:
FY2405000


Availability:

Product Overview

The FY2405000 is a universal AC DC desktop power adapter rated 24V 5A within the Fuyuang 120W platform. With a 100-240V 50/60Hz input it can be used on mains supplies worldwide and delivers a stable 24V DC output for electric equipment and LED lighting. Efficiency is above 88%. Short circuit, over-current and over-voltage protection protect the adapter and the connected device, and the compact desktop housing measures 154 x 60 x 36 mm at 0.45 kg.

Key Features

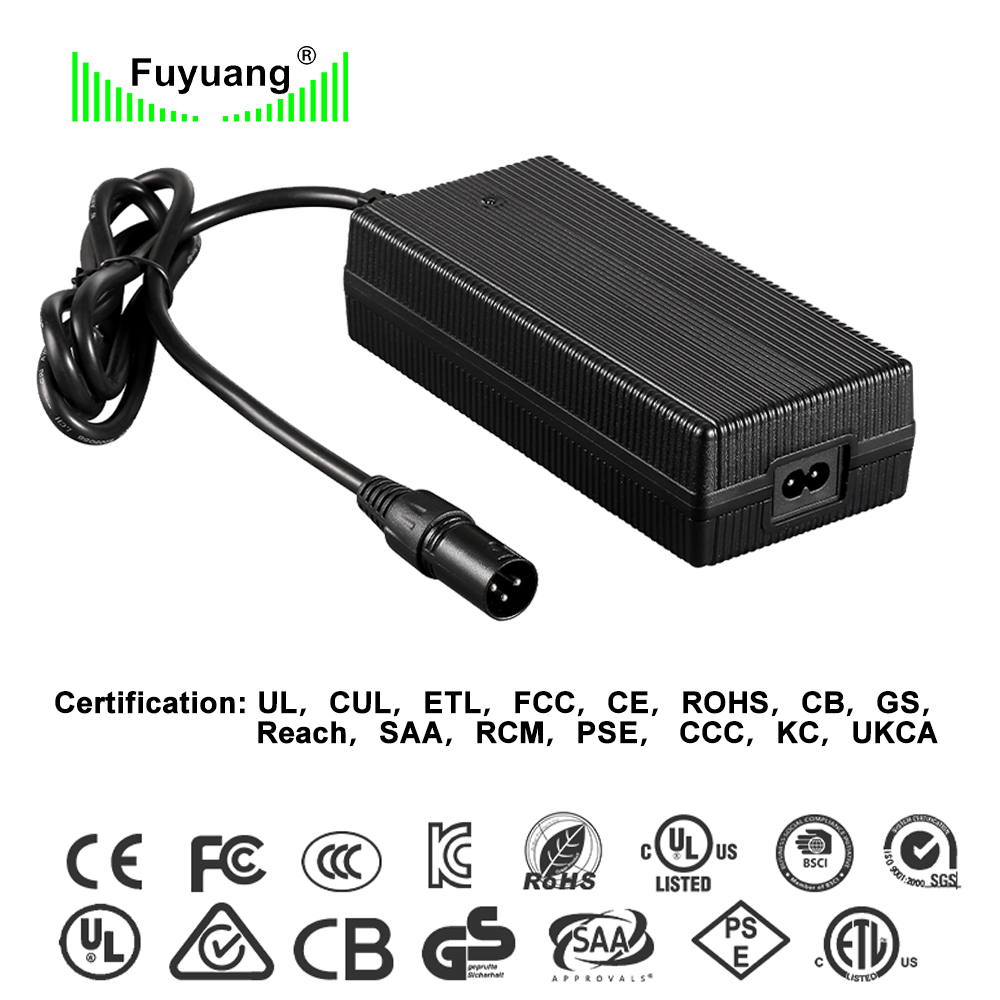

• Universal 100-240V 50/60Hz AC input • 24V 5A DC output on the 120W platform • Efficiency above 88% • Short circuit, over-current and over-voltage protection • Desktop housing, DC output connection • Compact 154 x 60 x 36 mm body weighing 0.45 kg • Black housing as standard • UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS and REACH certified

Technical Specifications

• Model: FY2405000 • Product type: universal AC DC desktop power adapter • Input: 100-240V, 50/60Hz • Output: 24V 5A DC • Power: 120W platform • Efficiency: >88% • Protection: short circuit, over-current, over-voltage • Connection: desktop with DC output • Dimension: 154 x 60 x 36 mm • Weight: 0.45 kg • Color: black • Certification: UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS, REACH • Warranty: 3 years

Applications

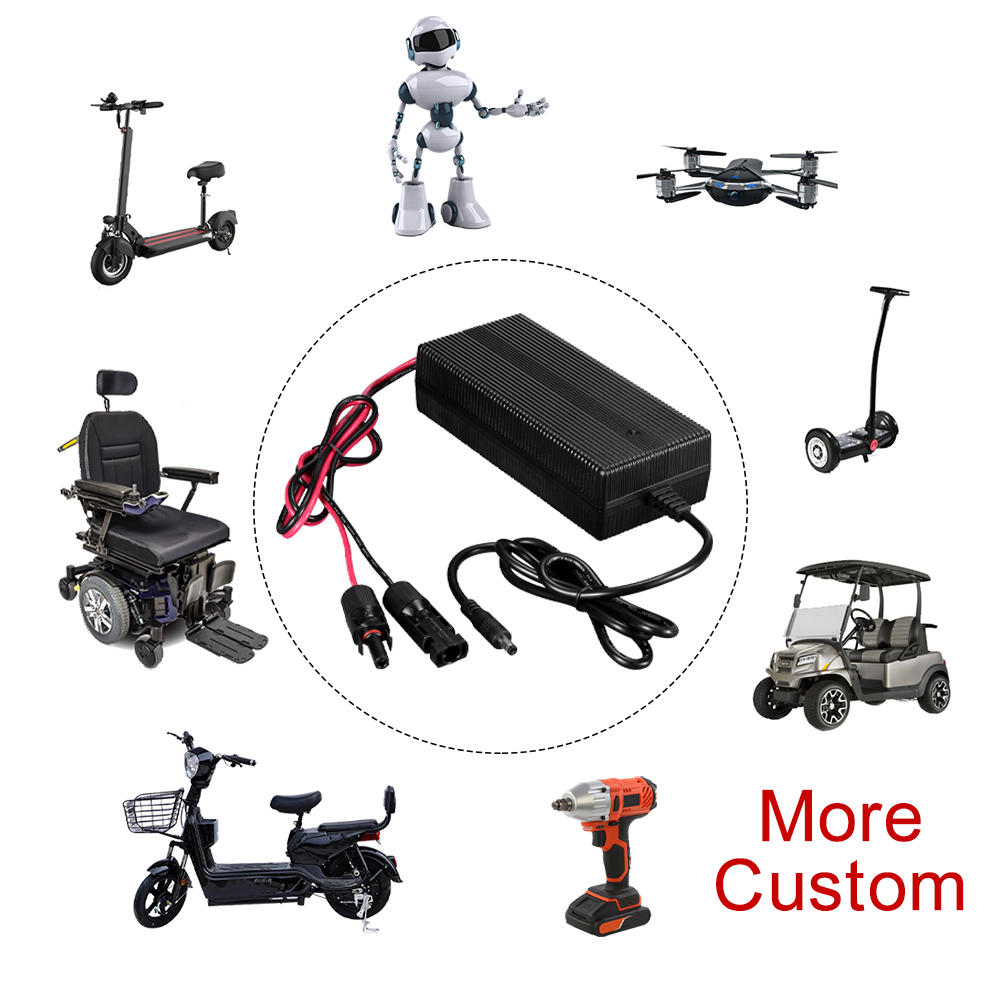

• Electric equipment and instruments • LED lighting • Robots and automation • Security and monitoring devices • Audio and communication equipment

Customization & Service

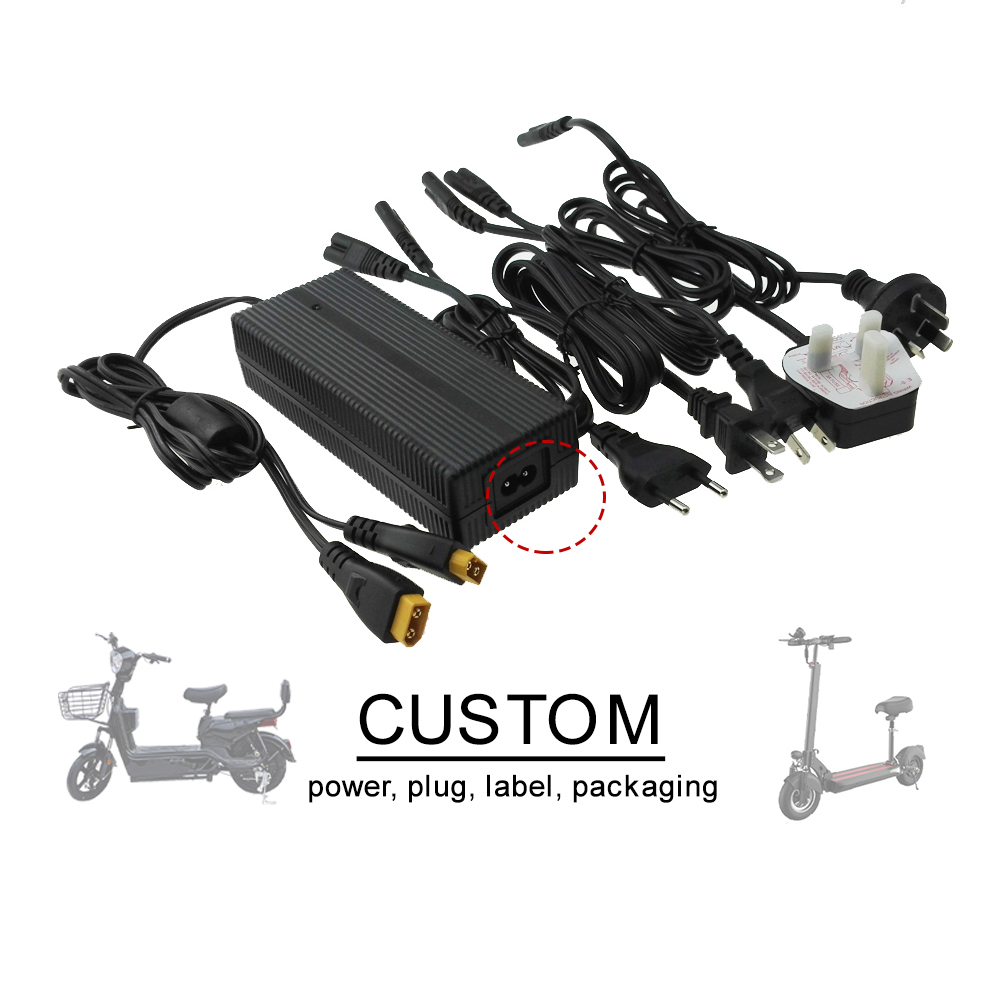

Fuyuan Electronic Co., Ltd supports OEM and ODM work on this platform, including custom output voltage and current, private labeling, LOGO printing and DC connector selection. A CNAS-standard EMC laboratory allows compliance performance to be checked before formal certification testing. This adapter is 100% factory inspected, burn-in tested at full load for 4-8 hours and covered by a 3-year warranty. MOQ is 50 PCS.
