Fuyuang 24W-300W AC/DC Power Adapter 5V 9V 12V 15V 24V 48V 55V for CCTV, Monitor, POS and LED Lighting

Fuyuang 24W-300W AC/DC Power Adapter 5V 9V 12V 15V 24V 48V 55V for CCTV, Monitor, POS and LED Lighting

Name: Fuyuang 24W-300W AC/DC Power Adapter 5V 9V 12V 15V 24V 48V 55V for CCTV, Monitor, POS and LED Lighting
Brand: Fuyuang
Rating: 5.0 (18 reviews)

The FY2402500 is an AC/DC power adapter available in wall-mounted and desktop formats, covering 24W to 300W. Output options include 5V 2.4A, 9V 4A, 12V 5A, 15V 4A, 24V 2.5A, 48V 1A and 55V 1A, so one platform supplies a wide range of electronic equipment. It runs from a 100-240Vac 50/60Hz input at 92% efficiency and includes fireproof, over-charging, over-current, over-voltage and short-circuit protection, plus timer, auto cutoff and reverse-polarity protection on the secondary side. An LED indicator shows power status, and connector options include 5.5x2.5mm, 5.5x2.1mm, XLR, XT60, Anderson, crocodile clip and ring terminal. Typical uses are monitors, routers, POS terminals, CCTV equipment, LED lighting and general electronic devices. Fuyuan Electronic Co., Ltd has manufactured adapters since 2005 with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty.

Model:
FY2402500
Brand:
Fuyuang
Code:
FY2402500


Availability:

Product Overview

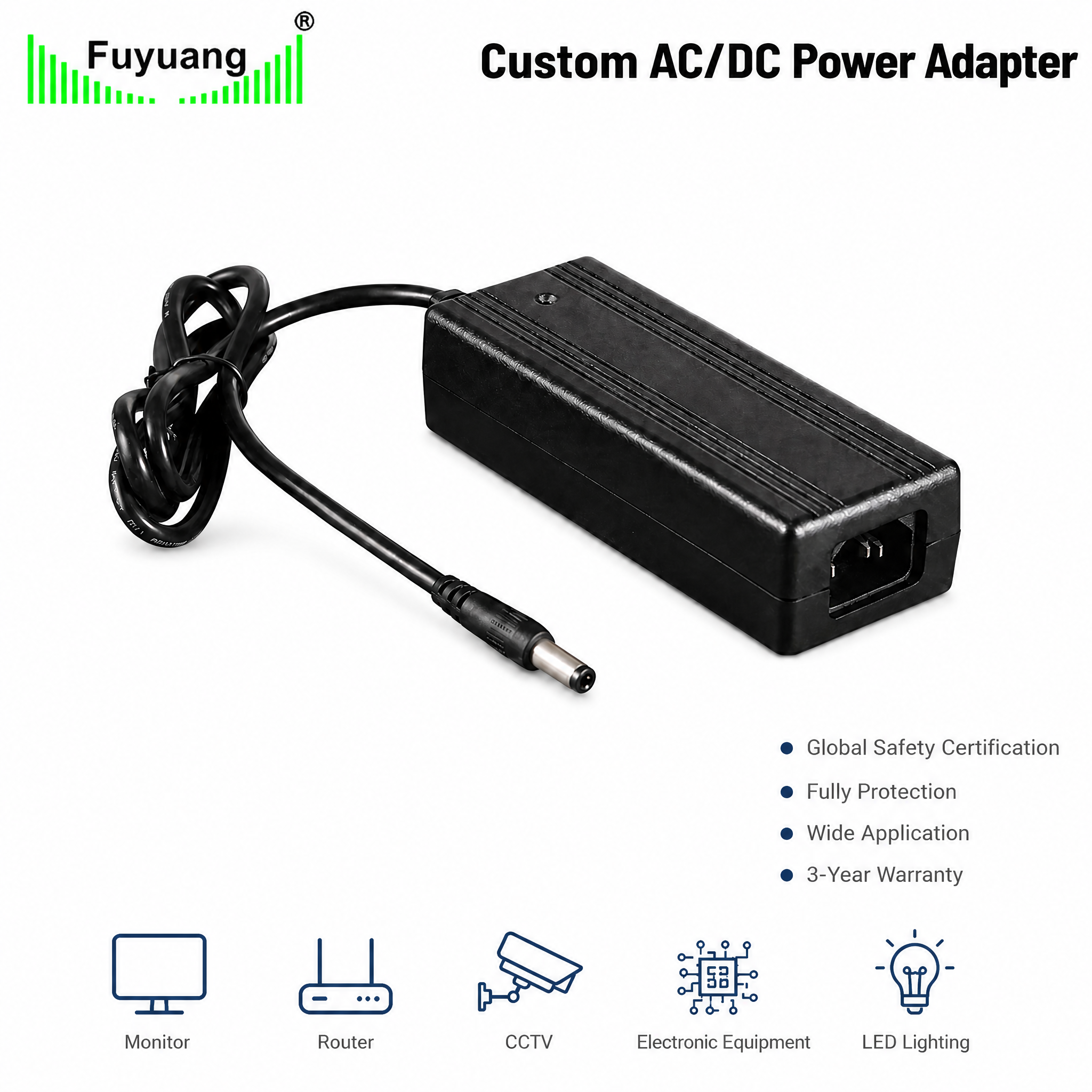

The FY2402500 is an AC/DC power adapter offered in wall-mounted and desktop formats with a 24W to 300W power range. Output variants include 5V 2.4A, 9V 4A, 12V 5A, 15V 4A, 24V 2.5A, 48V 1A and 55V 1A. The adapter accepts 100-240Vac 50/60Hz input and is used for monitors, routers, POS systems, CCTV equipment, LED lighting and other electronic devices that need a stable external DC supply.

Key Features

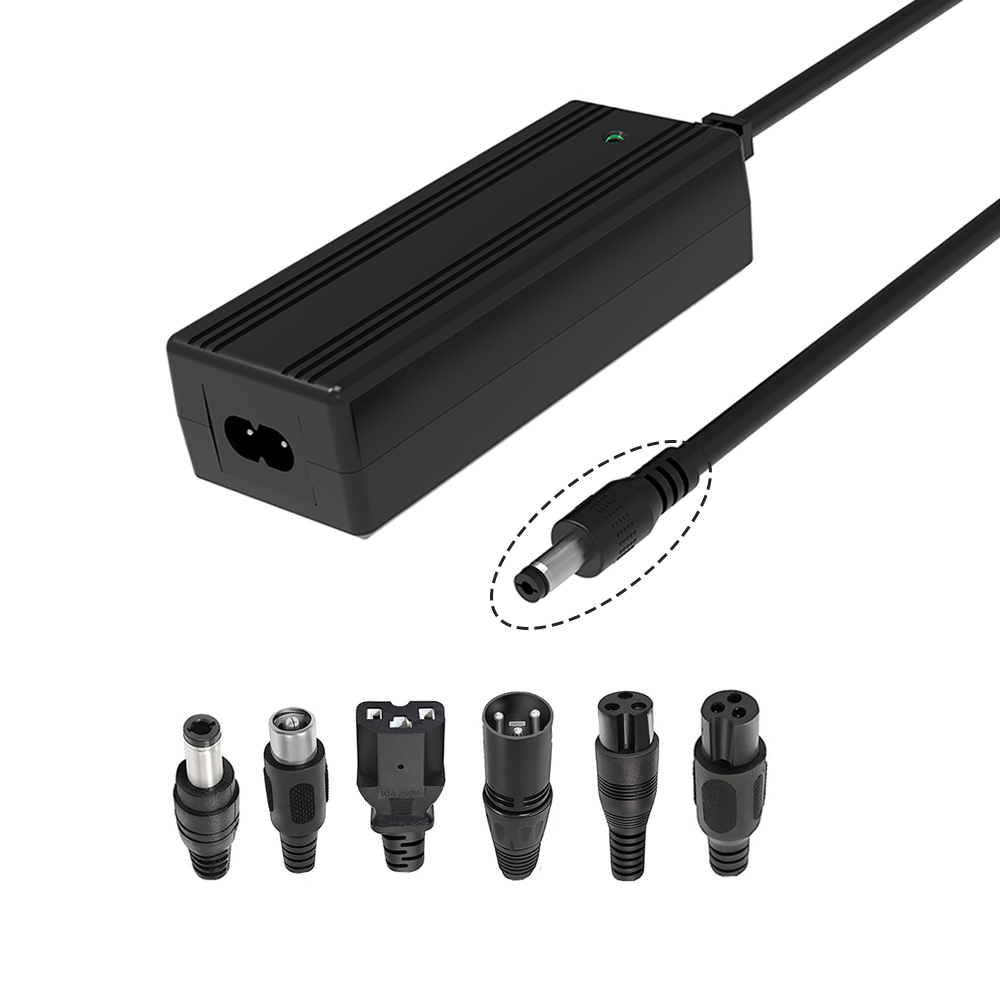

• Multiple output voltages from 5V to 55V on one platform • 24W to 300W power range • Wall-mounted or desktop format • Universal 100-240Vac 50/60Hz input with 92% efficiency • Protection: fireproof, over-charging, over-current, over-voltage, short circuit, timer, auto cutoff, reverse polarity • LED indicator for power status • Connector options: 5.5x2.5mm, 5.5x2.1mm, XLR, XT60, Anderson, crocodile clip, ring terminal • Housing in ABS and PC fireproof material

Technical Specifications

• Model: FY2402500 • Type: power supply adapter, wall-mounted or desktop • Input: AC 100-240Vac, 50/60Hz • Outputs: 5V 2.4A / 9V 4A / 12V 5A / 15V 4A / 24V 2.5A / 48V 1A / 55V 1A • Platform power: 24W / 60W / 75W / 120W / 150W / 200W / 300W • Charging efficiency: 92% • Housing: ABS and PC fireproof material • Certification: UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA, KCC • MOQ: 100 PCS

Applications

• Monitors and display equipment • Routers and networking devices • POS terminals • CCTV cameras and security systems • LED lighting • General electronic equipment

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this adapter platform, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. The CNAS-standard EMC laboratory supports pre-compliance testing during development. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
