The battery charger supply base is not a single market. It includes power semiconductor vendors, battery and vehicle system integrators, consumer accessory brands and dedicated power supply manufacturers — companies that operate at different layers of the supply chain and are therefore not directly comparable on a single scale. A more useful annual review sets out the dimensions along which a battery charger supplier can be assessed using published, checkable information, and lets each buyer apply those dimensions to their own application.
Marketing material from this industry tends to emphasise the same handful of attributes, which makes differentiation difficult on a first pass. Three questions separate claims that can be verified from claims that cannot.
"High efficiency" is not a specification; "92% at full load into a resistive load, measured at 230VAC input" is. The same applies to charge accuracy, ripple, standby power and thermal behaviour. Where a supplier publishes test conditions alongside the figure, or can supply a test report, the claim can be evaluated. Where it does not, treat the number as a starting point for a question rather than a basis for a decision.
Customer references are meaningful when they name the application — a robot platform, a mobility product, an industrial charger programme — rather than listing logos without context. Named public customers indicate that the supplier has passed an audit process at those companies, but the scope of what was supplied still needs to be confirmed directly.
Certification is the most frequently over-stated item in the category, and also the easiest to check. Ask for the certificate number and issuing body, then confirm it against that body's public database and check that the model scope covers what you are buying.
Tip: Ask each shortlisted supplier for the same four documents — certificate numbers, a full-load efficiency test report, the burn-in procedure and the warranty terms. Comparable documents make the comparison straightforward.
Constant-current, constant-voltage charging with controlled termination is the baseline for lithium packs. Above that, look for adaptive output that identifies the connected pack, current locking during the session, automatic voltage step-down and shut-off at full charge, and a timer safeguard. The protection stack should include over-voltage, over-current, over-temperature, short-circuit and reverse-polarity protection, with fuses on both input and output.
Suppliers that cover a wide spectrum, from 60W portable products to 10KW industrial units, can usually serve a customer's product roadmap rather than a single order. Efficiency separates into the general class, where 90% or better at full load is common, and wide-bandgap designs, where GaN and SiC platforms at 120W, 240W and 330W reach up to 95% and allow sealed, fanless enclosures at higher power. Compliance with DoE Level VI, CEC, ErP Stage 2, CoC Tier 2, NRCan and GEMS should be stated per model.
Fanless free-air convection cooling removes a wear item and avoids drawing dust through the chassis, which suits sealed industrial units and long-duty equipment. IP67 options extend that to outdoor and wash-down installations. A published derating curve against ambient temperature is the evidence that matters here.
CAN 2.0 and RS485 interfaces allow charge state, output data and fault codes to be read by a host controller or fleet platform. For buyers building connected products, this is now a specification item rather than an option.
Customization capacity is most clearly judged by the documented cycle time from design to engineering sample. A supplier able to work through that cycle in around ten days reduces the schedule risk on a new product programme, and it indicates an engineering organisation sized for concurrent projects rather than a trading operation.
Tip: Weight the dimensions by your own exposure. A buyer with a five-year product cycle should weight certification breadth and thermal margin; a buyer with a twelve-month cycle should weight engineering turnaround.
Behind the product specification sits the operation that produces it. Verifiable indicators include system certification to ISO9001, ISO14001 and QC080000; an in-house EMC laboratory built to CNAS standards, which produces pre-compliance data before an external test house is engaged; 100% factory inspection with four to eight hours of full-load burn-in; MTBF of 30,000 hours or more; and a 3-year warranty. Order terms matter as well — a minimum order quantity of 100 units keeps the entry point low for a pilot programme, and OEM/ODM support covers private labelling and logo printing.

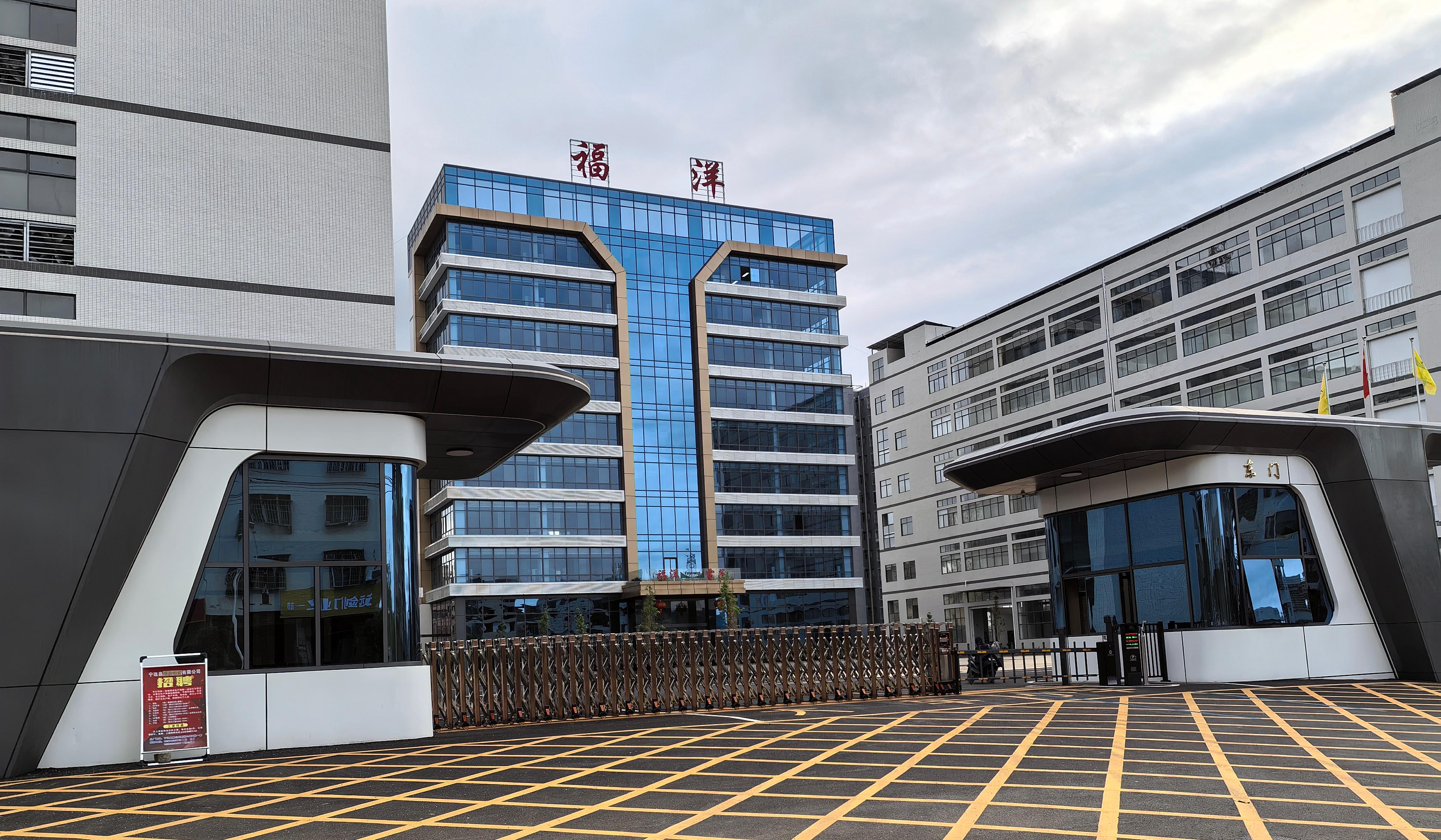

Production scale is a useful indicator of delivery stability rather than quality. Fuyuan Electronic, for example, manufactures battery chargers, power adapters and LED power supplies across a 60W–10KW range from two production bases in Dongguan and Yongzhou covering 108,000 m² with 450 employees, has developed more than 3,000 models, and supplies robot, mobility, medical and industrial programmes, including charging systems for products from companies such as UNITREE.
Tip: Visit or audit before committing to volume. A walk-through of the test line, the burn-in racks and the EMC laboratory answers more questions in an hour than a datasheet review does in a week.
Power semiconductor vendors. Companies such as Infineon supply the switching devices and control silicon that charger manufacturers build on. They are relevant to a buyer as a component-level technology source, not as a charger supplier.
Battery and vehicle system integrators. BYD operates across battery cells, packs and vehicle charging systems, with vertical integration across those layers. Their focus is EV-scale charging rather than general-purpose chargers.
Industrial power and automation suppliers. Delta Electronics serves industrial and infrastructure applications with high power density designs and established thermal management engineering.
Consumer charging brands. Anker Innovations addresses consumer accessory and portable fast-charging markets through retail and e-commerce channels, with a different compliance and support model from industrial suppliers.
Dedicated power supply manufacturers form a fifth group, supplying chargers built to an OEM's specification with regional certification. Fuyuan Electronic is one of these, working across battery chargers, power adapters and LED power supplies with in-house EMC testing and OEM/ODM development.
Tip: Compare suppliers inside their own group. A semiconductor vendor and an OEM charger manufacturer cannot be ranked against one another on service record, and treating them as if they can leads to the wrong shortlist.
Volume OEM programme: weight certification breadth by market, engineering responsiveness and production capacity.
Pilot or low-volume build: weight minimum order quantity, sample availability and how quickly the supplier answers technical questions.
Regulated application: weight documented test data, traceability and the ability to support an audit.
Connected product: weight the communication interface and firmware support policy.
An annual assessment of this industry is most useful as a comparison framework: measurable technical claims, traceable certification, documented production controls and a service record that names real applications. Applied consistently, those criteria produce a shortlist that reflects your own requirements rather than a supplier's marketing position. For reliable products and expert support, Fuyuan Electronic offers high-quality battery chargers from 60W to 10KW, supported by a CNAS-standard in-house EMC lab, ISO9001, ISO14001 and QC080000 certification, a 3-year warranty, and 3,000+ developed models across battery chargers, power adapters and LED power supplies.
A: Compare on measurable technical data, traceable certification, documented production controls and the specificity of the service record — using the same document requests for each candidate.
A: Not across the board. Semiconductor vendors, battery and vehicle integrators, industrial automation suppliers and consumer accessory brands operate at different points in the supply chain. They are listed here to illustrate those positions rather than to rank them against one another.
A: Ask for the burn-in procedure, the MTBF basis and the warranty term together. 100% factory inspection with four to eight hours of full-load burn-in, MTBF of 30,000 hours or more and a 3-year warranty are common indicators in this segment.
A: Minimum order quantity is 100 units for standard and customized production, with OEM/ODM support including private labelling and logo printing. Delivery schedules and payment terms are confirmed per order; customized development can move from design to engineering in as little as 10 days.
