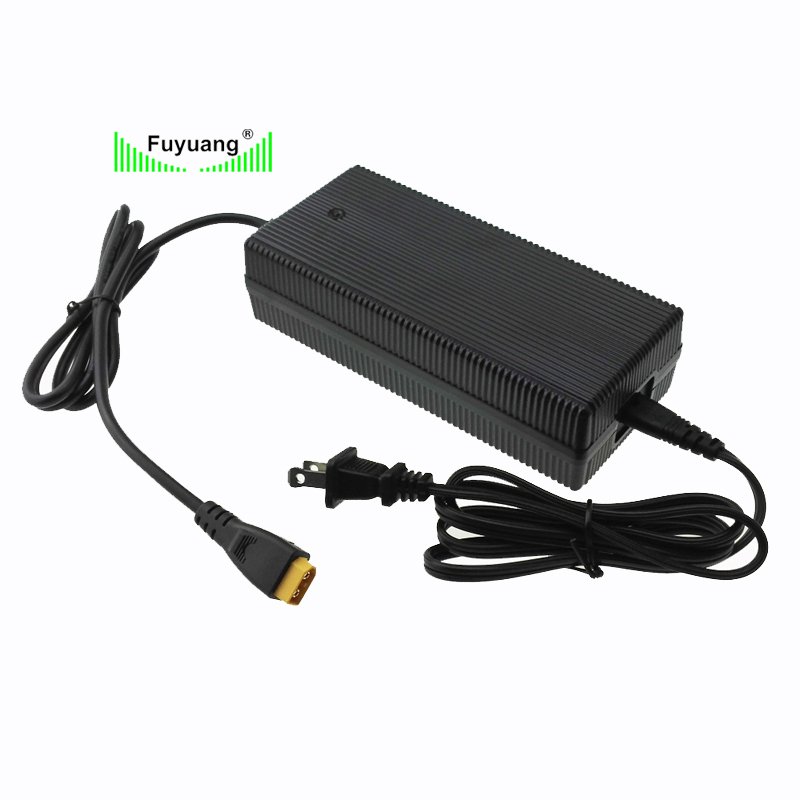

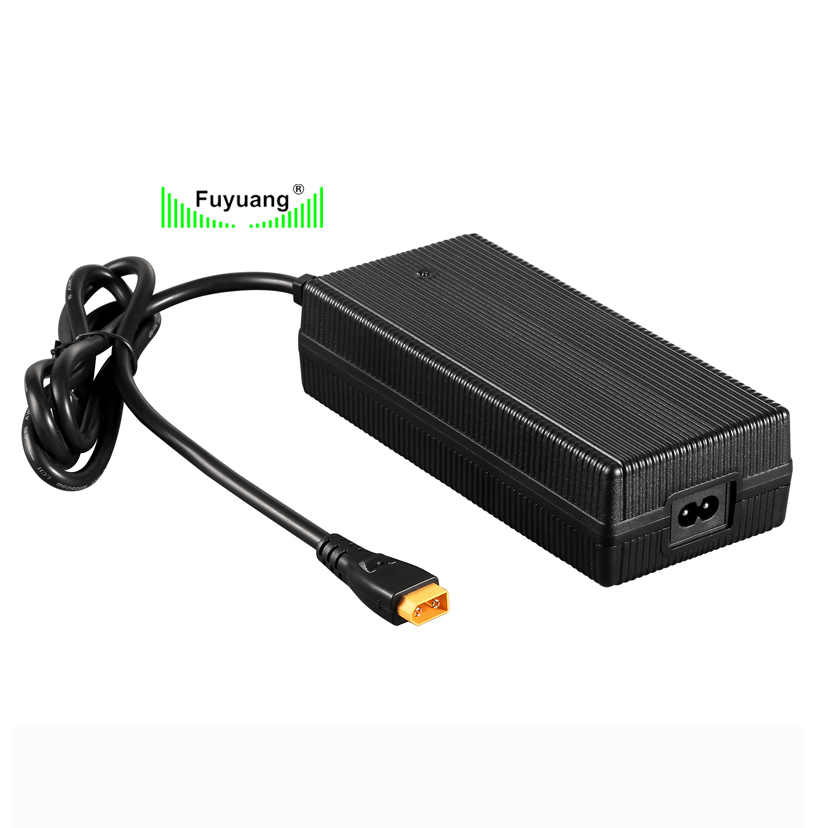

Fuyuang FY2906000 29.2V 6A 175W Lithium and Lead-acid Battery Charger for 24V Electric Scooters

Fuyuang FY2906000 29.2V 6A 175W Lithium and Lead-acid Battery Charger for 24V Electric Scooters

Name: Fuyuang FY2906000 29.2V 6A 175W Lithium and Lead-acid Battery Charger for 24V Electric Scooters
Brand: Fuyuang
Rating: 5.0 (7 reviews)

The Fuyuang FY2906000 is a 29.2V 6A battery charger rated 175W that serves both lithium and lead-acid batteries. It charges 7S lithium or 2S lead-acid packs, making it a good match for 24V electric scooters and motorcycles. Input is 100-240V at 2.5A and charging follows a CC-CV-floating charge profile. Efficiency exceeds 89% with DoE Level VI, and short circuit, over-current and over-voltage protection are included. The charger measures 178 x 90 x 35 mm, weighs 0.78 kg and comes in white, black or customized colour. Fuyuan Electronic Co., Ltd has been manufacturing chargers since 2005 and operates a CNAS-standard EMC laboratory. A 3-year warranty covers every unit.

Model:
FY2906000
Brand:
Fuyuang
Code:
FY2906000


Availability:

Product Overview

The FY2906000 is a 29.2V 6A battery charger rated 175W that supports both lithium and lead-acid chemistries. It charges 7S lithium or 2S lead-acid batteries, so it suits 24V electric scooter and motorcycle packs. The charger runs on a 100-240V 2.5A input and uses a CC-CV-floating charge profile. Efficiency is above 89% with DoE Level VI, and the housing measures 178 x 90 x 35 mm at 0.78 kg.

Key Features

• 29.2V 6A output charging 7S lithium or 2S lead-acid batteries • 175W output power for 24V electric scooter packs • 100-240V 2.5A universal AC input • CC-CV-floating charge charging mode • DoE Level VI efficiency, above 89% • Short circuit, over-current and over-voltage protection • White, black or customized housing colours • Fireproof PC housing with DC output

Technical Specifications

• Model: FY2906000 • Product type: lithium / lead-acid battery charger • Input: 100-240V, 2.5A • Output: 29.2V 6A • Output power: 175W • Battery: 7S lithium or 2S lead-acid battery pack • Charge mode: CC-CV-floating charge • Efficiency: DoE Level VI, >89% • Protection: short circuit, over-current, over-voltage • Dimension: 178 x 90 x 35 mm • Weight: 0.78 kg • Color: white, black or customized • Certification: UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS, REACH • Warranty: 3 years

Applications

• 24V electric scooters • Electric motorcycles • 7S lithium battery packs • 2S lead-acid battery packs • Light electric vehicles

Customization & Service

Fuyuan Electronic Co., Ltd offers OEM and ODM services on this charger, covering custom output voltage and current, custom DC connectors, private labeling and LOGO printing. The CNAS-standard EMC laboratory allows compliance to be checked before formal certification testing. Every charger is 100% factory inspected, full-load burn-in tested for 4-8 hours and covered by a 3-year warranty. MOQ is 50 PCS.
