Fuyuang FY1904750 19V 4.74A Universal Laptop Power Adapter with 5521 / 5525 DC Tips, CE UKCA SAA KC PSE Approved

Fuyuang FY1904750 19V 4.74A Universal Laptop Power Adapter with 5521 / 5525 DC Tips, CE UKCA SAA KC PSE Approved

Name: Fuyuang FY1904750 19V 4.74A Universal Laptop Power Adapter with 5521 / 5525 DC Tips, CE UKCA SAA KC PSE Approved
Brand: Fuyuang
Rating: 5.0 (33 reviews)

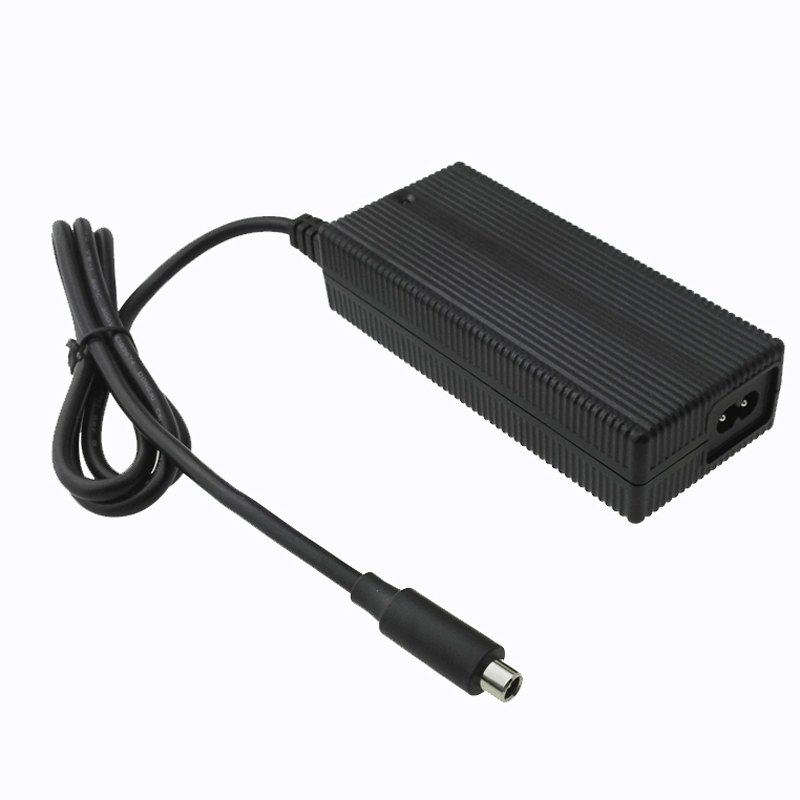

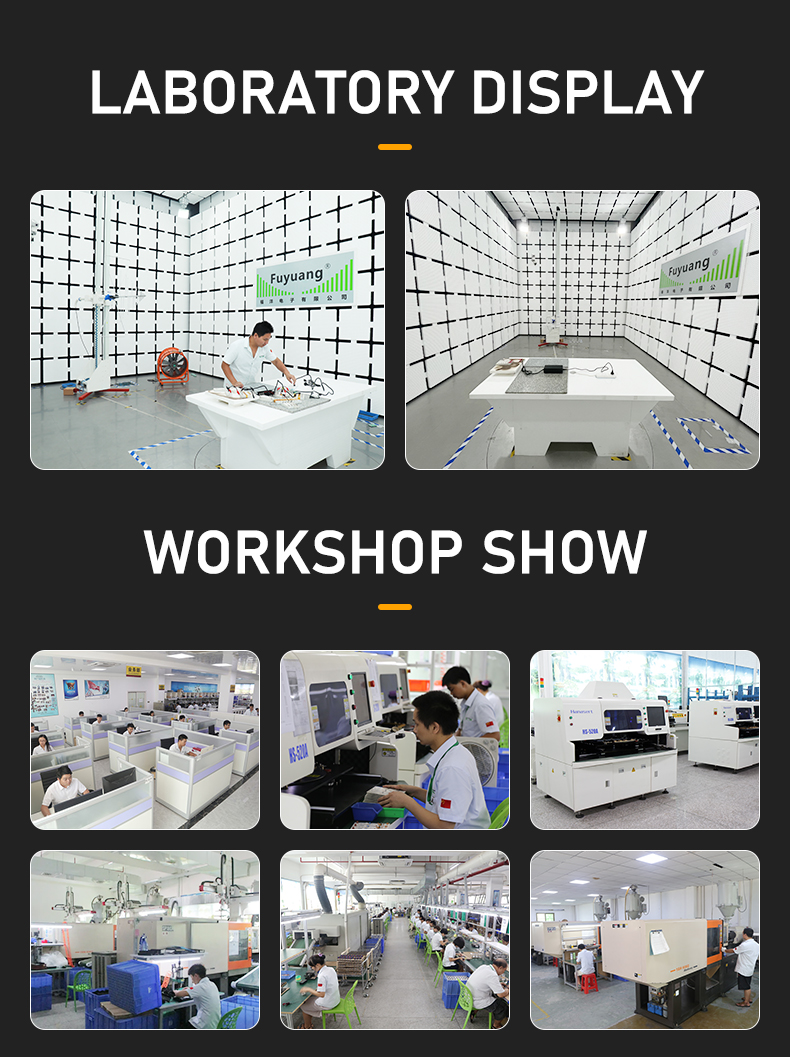

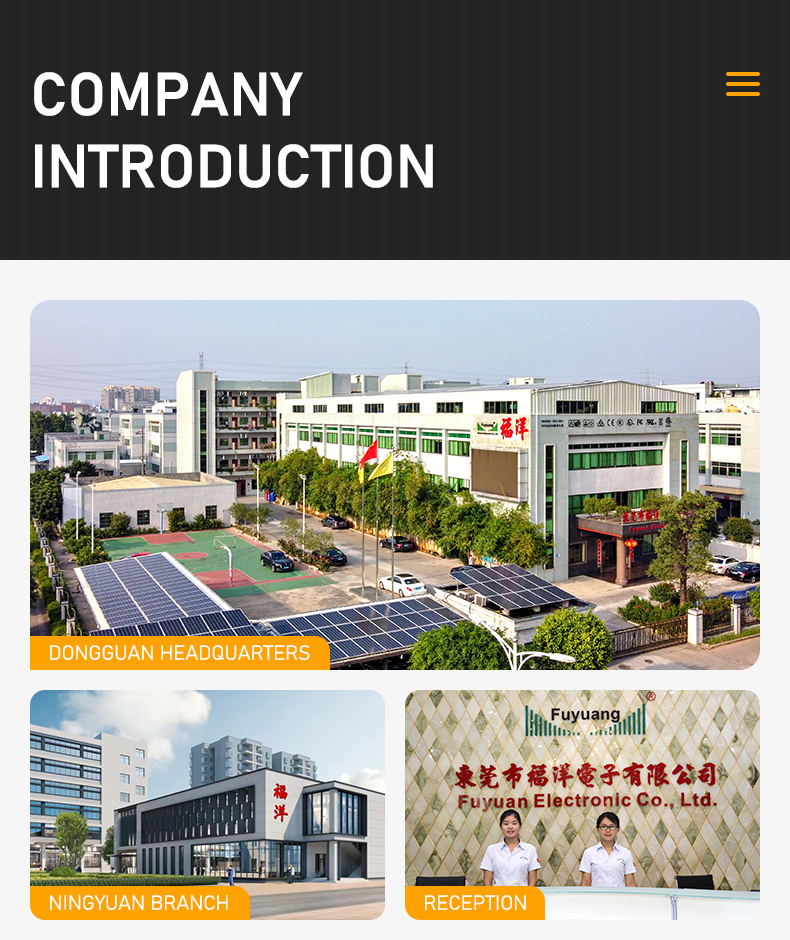

The Fuyuang FY1904750 universal 19V adapter supplies 4.74A of regulated DC current for laptops, arcade game cabinets, air purifiers, LED fixtures and other 19V loads. It works from 100-240V 50-60Hz and delivers efficiency above 95%, so less energy is wasted as heat inside the enclosure. The output is fitted with a 5521 or 5525 barrel plug, and the adapter includes short circuit and over-current protection together with over-voltage, over-temperature, over-load and over-charging protection. The black PC fireproof housing measures 154*60*36MM, weighs 0.45kgs and runs without a fan. Fuyuan Electronic Co., Ltd has manufactured power adapters since 2005, with two production bases, 108,000 m2 of floor space, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This adapter carries a 3-year warranty.

Model:
FY1904750
Brand:
Fuyuang
Code:
FY1904750


Availability:

Product Overview

This FY1904750 adapter provides a stable 19V 4.74A DC output for laptops, arcade game machines, air purifiers, LED products and industrial electronics. The 100-240V 50-60Hz input range means the same adapter works on any mains supply. A 5521 or 5525 barrel tip, a common 19V DC standard, allows the adapter to be used as a direct replacement for an existing supply.

Key Features

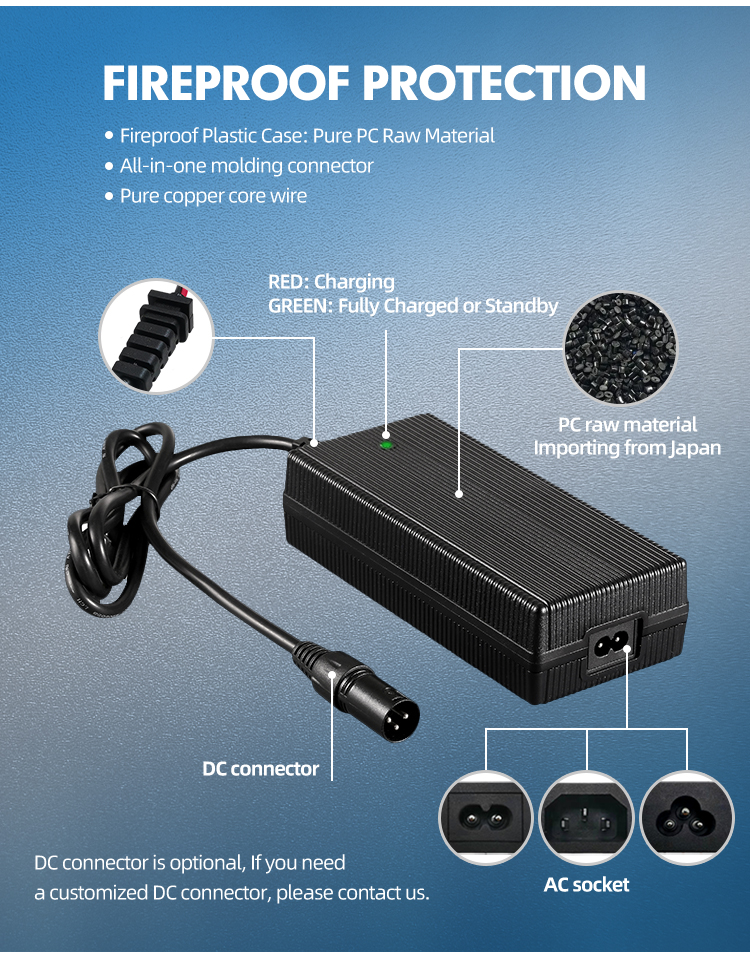

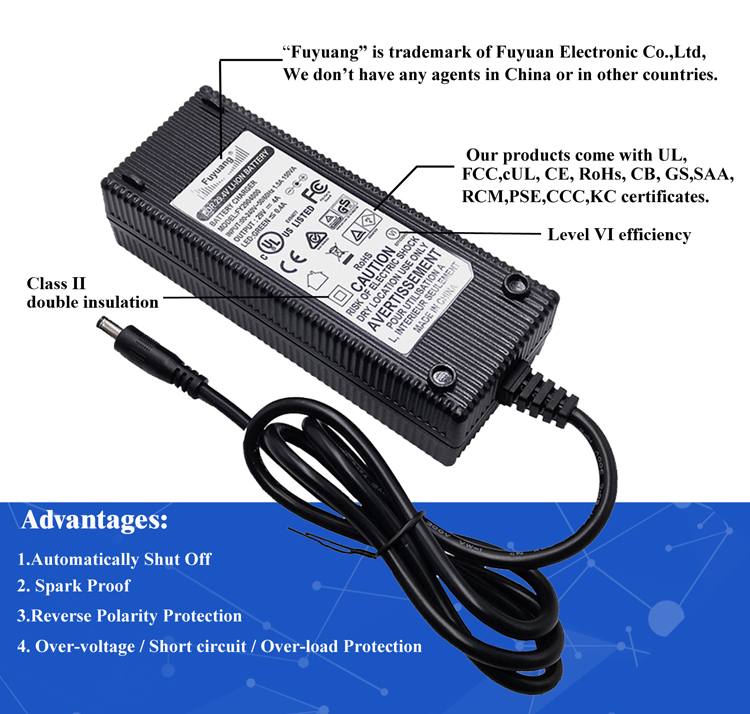

• Universal 19V 4.74A DC output • 5521 / 5525 DC tip for laptop and equipment replacement • 100-240V / 50-60Hz worldwide AC input • Efficiency above 95% • Short circuit and over-current protection • Over-voltage, over-temperature, over-load and over-charging protection • Desktop fanless housing in black PC fireproof material • UL, cUL, CE, GS, UKCA, SAA and KC approval routes

Technical Specifications

• Model: FY1904750 • Product name: power supply, 19V power adapter • Input: 100-240V / 50-60Hz • Output: 19V 4.74A • Output power: 120W • Efficiency: above 95% • DC port: DC output, 5521 / 5525 tip • Dimension: 154*60*36MM, weight 0.45kgs • Color: black, PC fireproof material • Protection: short circuit, over-current, OVP, OTP, OLP, over-charging • Certification: UL, cUL, GS, CE, BS, SAA, KC • MOQ: 100 PCS

Applications

• Laptop and notebook computers • Arcade game cabinets and gaming equipment • Air purifiers and household appliances • LED lighting, signage and display equipment • Audio and video equipment • Industrial control panels and instrumentation

Customization & Service

OEM and ODM services on this adapter cover custom output voltage and current, DC connector and cable length, housing colour, AC plug type, private labeling, LOGO printing and packaging. Designs are screened for EMC and safety in the company's CNAS-standard laboratory before certification submission, which shortens the approval cycle. Each adapter is 100% factory inspected and burned in before packing, and it carries a 3-year warranty. Standard MOQ is 100 PCS.
