Fuyuang FY1904750 19V 4.74A Laptop Power Adapter with 5521 / 5525 DC Tip for Arcade Game, Air Purifier and LED Equipment

Fuyuang FY1904750 19V 4.74A Laptop Power Adapter with 5521 / 5525 DC Tip for Arcade Game, Air Purifier and LED Equipment

Name: Fuyuang FY1904750 19V 4.74A Laptop Power Adapter with 5521 / 5525 DC Tip for Arcade Game, Air Purifier and LED Equipment
Brand: Fuyuang
Rating: 5.0 (94 reviews)

The Fuyuang FY1904750 is a desktop switching power adapter rated 19V 4.74A, with 5521 and 5525 DC output tips commonly used on laptops, arcade game machines, air purifiers, LED equipment and industrial boxes. It accepts 100-240V 50-60Hz and reaches efficiency above 95%. Short circuit and over-current protection are built in, together with over-voltage, over-temperature, over-load and over-charging protection logic. The unit measures 154*60*36MM, weighs 0.45kgs and uses a PC fireproof black housing that is quiet in operation because there is no fan. Fuyuan Electronic Co., Ltd has manufactured power adapters and chargers since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This adapter carries a 3-year warranty.

Model:
FY1904750
Brand:
Fuyuang
Code:
FY1904750


Availability:

Product Overview

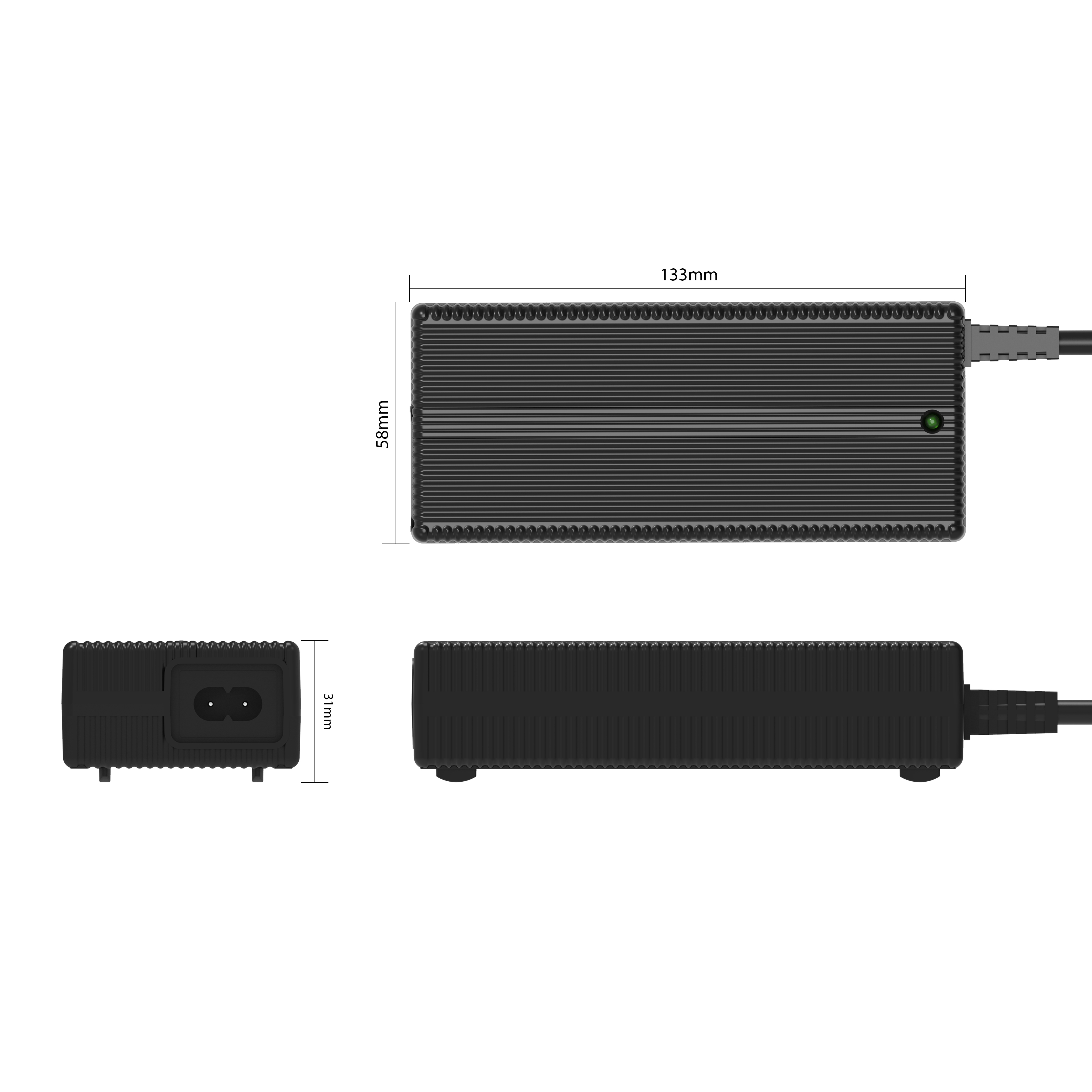

The FY1904750 is a 19V 4.74A desktop power adapter that replaces the original supply in laptops, arcade game machines, air purifiers, LED fixtures and similar 19V equipment. It runs from 100-240V 50-60Hz, so one SKU covers most markets. The output uses a 5521 or 5525 barrel tip, the two most common 19V DC connectors, and the housing measures 154*60*36MM at 0.45kgs.

Key Features

• 19V 4.74A DC output for laptops and 19V equipment • 5521 / 5525 DC output tip for direct replacement • 100-240V / 50-60Hz universal AC input • Efficiency above 95% • Short circuit and over-current protection • Additional OVP, OTP, OLP and over-charging protection logic • Fanless desktop housing in PC fireproof material, 0.45kgs • Certified to UL, cUL, GS, CE, BS, SAA and KC

Technical Specifications

• Model: FY1904750 • Product name: power supply, 19V power adapter • Input: 100-240V / 50-60Hz • Output: 19V 4.74A • Output power: 120W • Efficiency: above 95% • DC port: DC output with 5521 / 5525 tip • Dimension: 154*60*36MM • Weight: 0.45kgs • Color: black, PC fireproof material • Protection: short circuit, over-current, OVP, OTP, OLP, over-charging • Certification: UL, cUL, GS, CE, BS, SAA, KC • MOQ: 100 PCS

Applications

• Laptop and notebook computers • Arcade game machines • Air purifiers and household appliances • LED lighting and display equipment • Audio equipment and set-top devices • Industrial control and instrumentation

Customization & Service

Fuyuan Electronic Co., Ltd supports OEM and ODM orders on this adapter: output voltage and current, DC connector type and cable length, housing colour, AC plug version, private labeling, LOGO printing and packaging can all be customised. Designs are screened in a CNAS-standard EMC laboratory before certification submission. Every unit is 100% factory inspected and receives full-load burn-in, and the adapter carries a 3-year warranty. Standard MOQ is 100 PCS.
