How to Choose a Lithium Battery Charger? A Guide to Avoiding Pitfalls and Practical Advice

Choosing the wrong lithium battery charger can shorten battery lifespan, reduce device performance, or even create safety risks. With charger prices ranging from tens to thousands of yuan, quality differences are significant. Many buyers focus only on price or wattage, while ignoring voltage compatibility, charging profiles, certifications, and protection systems.

This guide explains how to choose a lithium battery charger correctly — covering voltage matching, current calculation, certifications, application scenarios, and OEM sourcing considerations.

Quick Answer: How to Choose a Lithium Battery Charger?

To choose the right lithium battery charger:

1. Match the charger output voltage to the battery pack voltage.

2. Select charging current between 0.5C–1C of battery capacity.

3. Ensure CC/CV (Constant Current / Constant Voltage) charging mode.

4. Verify safety certifications (UL, CE, CCC, DOE Level VI).

5. Choose proper cooling method and protection features (OVP, OCP, OTP, SCP).

What Is a Lithium Battery Charger?

A lithium battery charger is a power conversion device designed specifically for lithium-ion, lithium polymer, and LiFePO4 battery systems. It converts AC or DC input into stable voltage and current suitable for lithium battery charging.

Unlike standard power adapters, lithium chargers must include:

• Precise voltage regulation

• CC/CV charging algorithm

• Overvoltage, overcurrent, and over-temperature protection

• Stable low ripple output

Why a Lithium Battery Charger Matters?

The importance of choosing the right lithium battery charger is reflected in three critical aspects: safety, lifespan, and performance stability.

1. Safety Assurance

Lithium batteries are highly sensitive to charging voltage and current fluctuations. An improperly designed lithium battery charger can cause:

• Overcharging

• Excessive current

• Overheating

• Battery swelling

• Fire hazards

A qualified lithium battery charger integrates multiple protection mechanisms, including:

• Overvoltage Protection (OVP)

• Overcurrent Protection (OCP)

• Over-Temperature Protection (OTP)

• Short Circuit Protection (SCP)

These built-in safeguards serve as the primary line of defense against charging-related accidents.

2. Extended Battery Lifespan

A professional lithium battery charger uses an intelligent Constant Current / Constant Voltage (CC/CV) charging profile.

This charging method:

• Prevents overcharging and over-discharging stress

• Reduces internal resistance growth

• Optimizes charge termination accuracy

• Significantly increases charge-discharge cycle life

Using a non-optimized charger can reduce battery lifespan by 20–40% over time.

3. Stable Device Performance

High-quality lithium battery chargers provide:

• Stable output voltage

• Low ripple and noise

• Accurate voltage regulation

This is especially important for:

• Electric vehicles (EV systems)

• Industrial robots

• Medical equipment

• Automation control systems

Power instability can cause control errors, signal interference, and long-term component damage.

Key Parameter Analysis: Technical Specifications Determine Performance

When selecting a lithium battery charger, pay close attention to the following technical parameters:

 1. Output Voltage Range (V)

The output voltage must match the nominal voltage of the battery pack. Common lithium battery pack voltages include:

Common Lithium Battery Configurations

• Single-cell lithium battery: 3.7V nominal (4.2V charging voltage)

• 3S lithium battery pack: 11.1V nominal (12.6V charging voltage)

• 10S battery pack and above: Typically 36V–72V nominal (37V–87V charging range)

How to Identify the Correct Voltage

1. Check the battery label for nominal voltage.

2. Confirm the full-charge voltage specification.

3. Ensure the charger output voltage matches precisely.

Some advanced lithium battery chargers support wide adjustable output ranges (e.g., 8V–87V), improving compatibility across different battery systems.

⚠ Incorrect voltage matching may result in overheating, reduced battery life, or permanent damage.

2. Output Current Selection (A)

Charging current determines charging speed and battery stress level.

A general rule:

Maximum Charging Current ≤ Battery Capacity (Ah) × 1C

Example:

• 10Ah battery → Recommended charging current ≤ 10A

• 20Ah battery → Fast charging possible at 15A–20A

Recommended Daily Charging Rate

• Standard use: 0.5C–1C

• Emergency fast charge: Up to 1.5C

Excessive current increases:

• Internal battery temperature

• Lithium plating risk

• Long-term capacity degradation

For optimal battery health, balance charging speed and longevity rather than always pursuing maximum amperage.

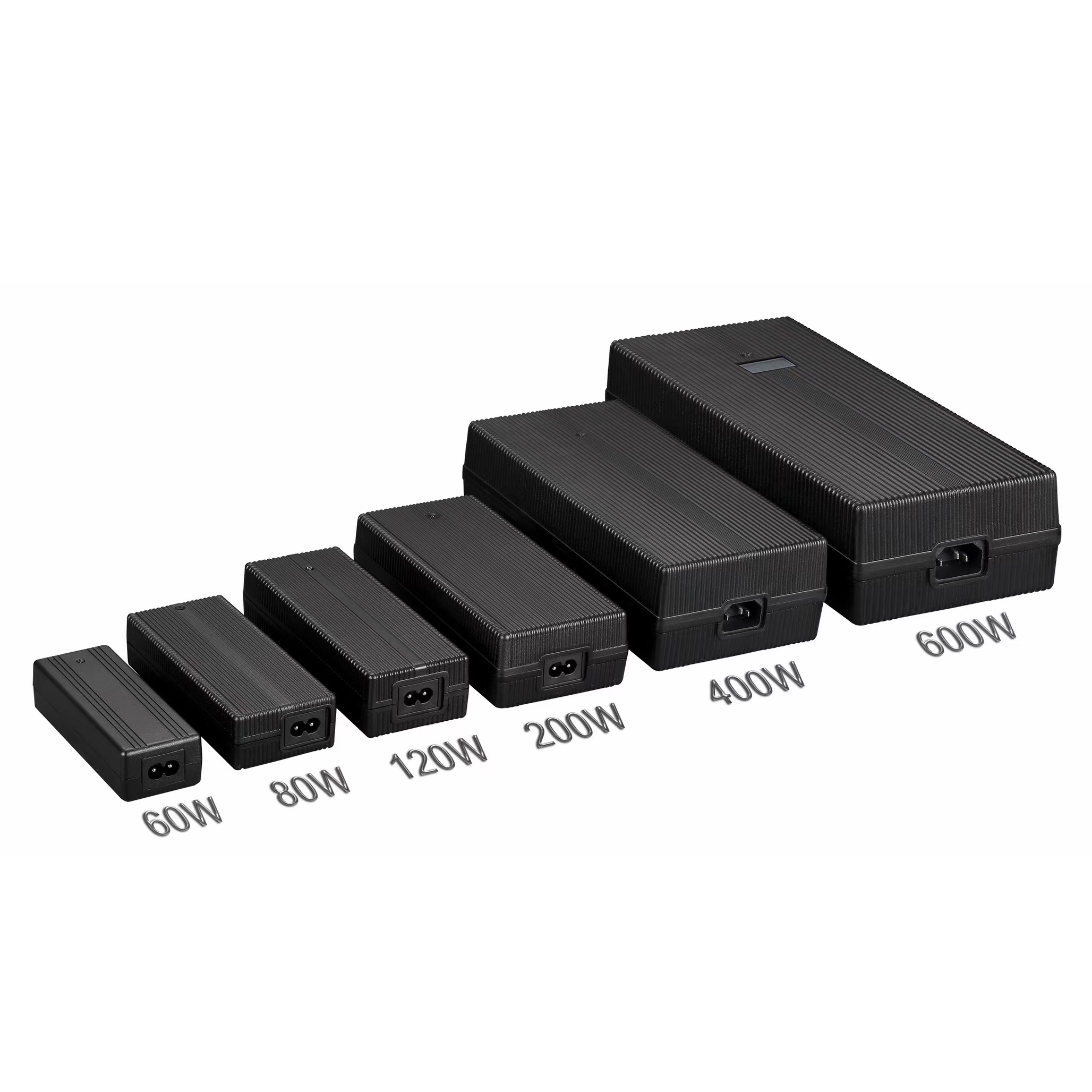

3. Power (W)

Power determines the combination of voltage and current a charger can provide simultaneously. Calculation formula: Power (W) = Voltage (V) × Current (A). Common power classifications include:

• Low Power (60W-90W): Suitable for single-cell or small-capacity battery packs, e.g., power tools, portable speakers.

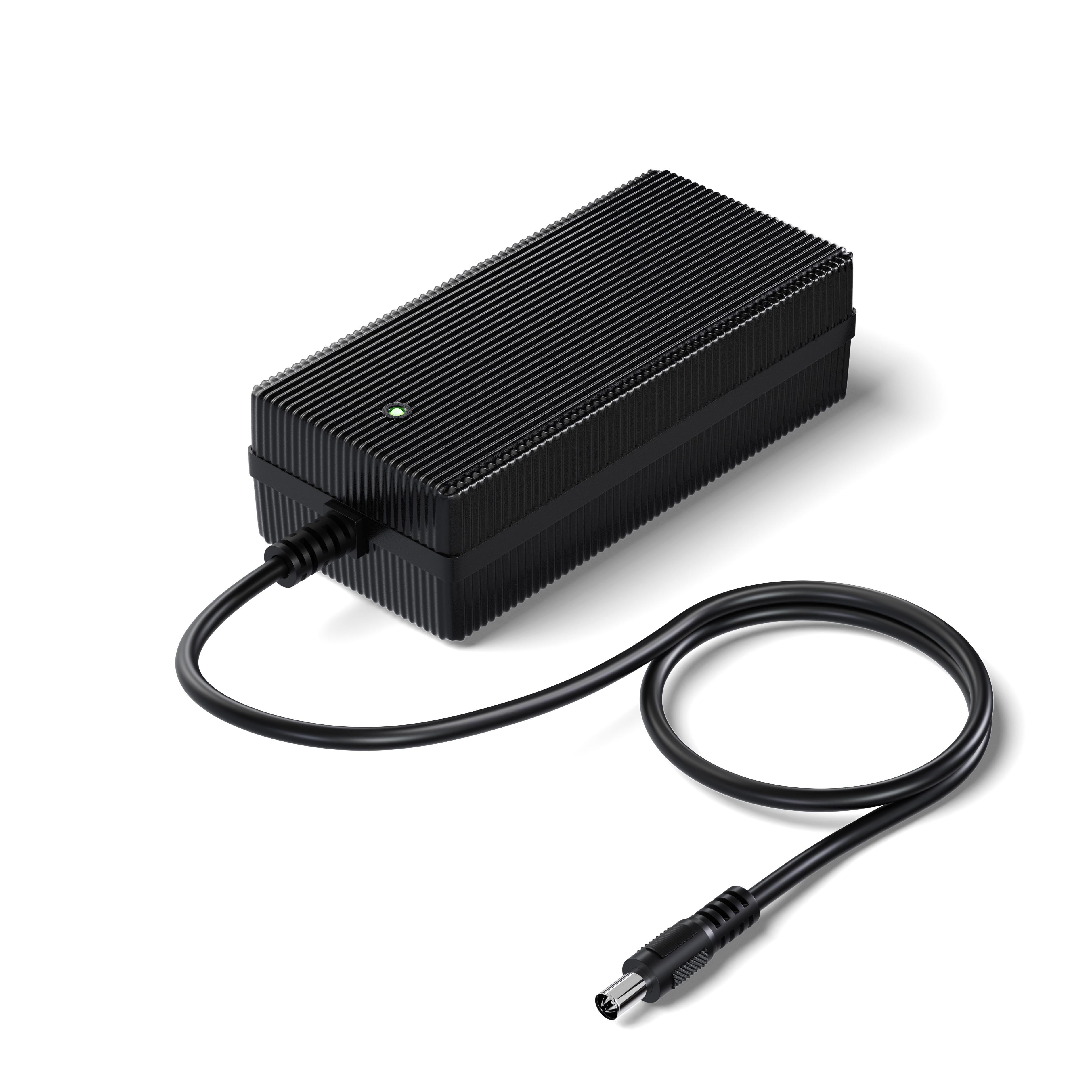

• Medium Power (120W-250W): Applicable for personal mobility devices like electric scooters and self-balancing vehicles.

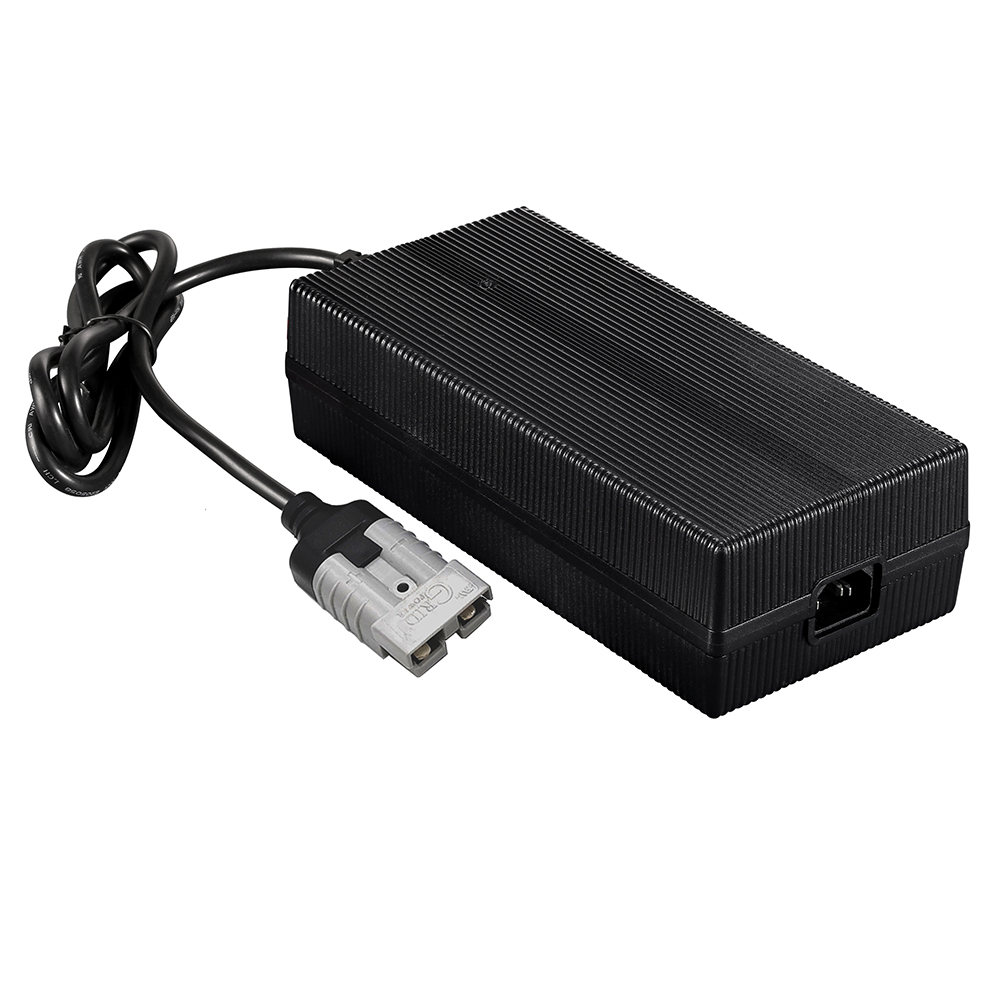

• High Power (300W-600W): Matches electric bicycles and large lithium battery packs.

• Ultra-High Power (800W-1200W): Serves industrial robots, electric tricycles, and heavy-duty equipment.

4. Energy Efficiency Level

High-efficiency chargers have lower conversion losses, generate less heat, and save on electricity costs. Internationally recognized energy efficiency standards include:

• DOE Level VI (U.S. Department of Energy)

• ERP Stage 2 (European Union Energy-related Products)

• CEC (California Energy Commission)

Choose products with an efficiency rating ≥90%. Some professional-grade chargers can achieve 92%-95%.

5. Safety Certifications & Protection Mechanisms

Essential Safety Certifications:

• International: UL, ETL (North America); CE, GS (Europe); PSE (Japan); SAA, RCM (Australia); KC (South Korea)

• Domestic (China): CCC Compulsory Certification, Quality Inspection Report

Essential Protection Functions:

• Overvoltage Protection (OVP): Prevents excessive output voltage from damaging the battery.

• Overcurrent Protection (OCP): Limits abnormal current peaks.

• Over-Temperature Protection (OTP): Automatically cuts power when temperature is too high.

• Short Circuit Protection (SCP): Immediately cuts power upon output short circuit.

• Dual Fuse (Input & Output): Provides dual protection with fuses on both input and output sides.

6. Cooling Method & Housing Material

• Natural Air Convection Cooling: Passive cooling via vents in the housing; quiet and highly reliable.

• Forced Air Cooling: Used for ultra-high-power products; consider fan lifespan and noise.

•Housing Material: Plastic housings are lightweight and cost-effective. Metal housings (e.g., aluminum alloy) offer better heat dissipation, suitable for outdoor and industrial applications.

 7. Ingress Protection (IP) Rating

For outdoor use or humid environments, consider waterproof and dustproof ratings:

• IP67: Completely dust-tight; protected against temporary immersion in water (1 meter depth for 30 minutes). Suitable for outdoor LED lighting, electric vehicle charging, etc.

• Standard Protection: Suitable only for indoor, dry environments.

Multi-Scenario Recommendations: Choose Specifications Based on Application

Scenario 1: Personal Electric Mobility (Electric Scooters, Self-balancing Vehicles, E-bikes)

• Recommended Power: 120W-250W

• Key Requirements: Portability, fast-charge support, multiple protections

•Typical Configuration: 42V/2A-3A charger, efficiency ≥90%, with overcharge protection

•Rationale: These devices typically have battery capacities between 5Ah-15Ah. A 120W-250W charger can complete charging in 2-4 hours, balancing speed and safety.

Scenario 2: Industrial Robots & Automated Equipment

•Recommended Power: 300W-600W

• Key Requirements: Long-term full-load stability, low ripple/noise, high reliability

• Typical Configuration: 48V/10A-15A charger, efficiency ≥95%, MTBF (Mean Time Between Failures) ≥30,000 hours

• Rationale: Industrial applications require 24/7 operation. High efficiency and low ripple ensure control systems are not interfered with.

Scenario 3: Outdoor LED Lighting & Garden Equipment

• Recommended Power: 60W-120W (IP67 waterproof series)

• Key Requirements: Waterproof & dustproof, weather resistance, fixed cables

• Typical Configuration: Aluminum housing, IP67 rating, fixed AC/DC cables

• Rationale: Outdoor environments face rain and dust. Waterproof chargers prevent short circuits and corrosion, extending lifespan.

Scenario 4: Medical Devices & Precision Instruments

• Recommended Power: 60W-160W (depending on device requirements)

• Key Requirements: Low EMI interference, medical-grade certification, stable output

• Typical Configuration: Dual-output charger, independent power supply design, compliant with medical safety regulations

• Rationale: Medical devices have extremely high requirements for power ripple and EMC. Dual independent outputs provide redundancy.

Scenario 5: Large Battery Packs & Electric Tricycles

• Recommended Power: 800W-1200W

• Key Requirements: High current output capability, multi-channel parallel output, excellent heat dissipation

• Typical Configuration: 48V/50A or 72V/20A, four-channel parallel output, aluminum alloy housing

•Rationale: Large capacity battery packs (e.g., >100Ah) require high-current fast charging. Multi-channel parallel design distributes heat, improving charging efficiency.

Scenario 6: Vehicle Charging (RVs, Boats, Mobile Workstations)

• Recommended Power: 120W-200W (DC-DC series)

• Key Requirements: Wide input voltage range, vibration resistance, low standby power consumption

•Typical Configuration: 12-30VDC input, 24V/5A output, metal housing

•Rationale: Vehicle electrical systems have significant voltage fluctuations. DC-DC converters draw power directly from the vehicle battery, avoiding inverter losses.

Avoid These Common Lithium Battery Charger Purchasing Mistakes

Selecting the wrong lithium battery charger can lead to reduced battery lifespan, safety risks, and unnecessary replacement costs. Below are the most common mistakes buyers make — and how to avoid them.

Pitfall 1: Assuming Higher Power Is Always Better

Many buyers believe that choosing a higher wattage lithium battery charger guarantees faster charging. In reality, an oversized charger can:

• Deliver excessive current

• Increase battery temperature

• Accelerate internal resistance growth

• Shorten overall battery cycle life

Correct Approach

Calculate required charger power using:

Power (W) = Battery Voltage (V) × Charging Current (A)

Select a charger that provides a 10%–20% safety margin above your calculated requirement — no more.

Proper power matching ensures balanced charging speed and battery longevity.

Pitfall 2: Focusing Only on Price While Ignoring Certifications

Low-cost chargers without proper certifications may lack:

• Insulation protection

• Overcurrent safeguards

• Thermal shutdown features

• Stable voltage regulation

Uncertified lithium battery chargers pose significant safety hazards.

Correct Approach

Always verify international safety certifications such as:

• UL / ETL (North America)

• CE / GS (Europe)

• CCC (China)

• KC / PSE / SAA

Request official test reports when sourcing in bulk or for OEM projects.

Certification compliance ensures legal market access and product safety.

Pitfall 3: Overlooking Connector Compatibility & Cable Quality

Connector mismatch is one of the most overlooked issues.

Common connector types include:

• DC barrel plugs (various diameters)

• XT60 / XT90

• Anderson connectors

• Custom industrial interfaces

Using incompatible connectors can cause unstable contact and overheating.

Additionally, thin cables cause excessive voltage drop and reduced charging efficiency.

Correct Approach

• Confirm exact connector specification

• Use minimum 18AWG cable for standard applications

• For high-current models, select thicker gauge wiring

High-quality cabling ensures stable current transmission and minimizes heat generation.

Pitfall 4: Assuming One Charger Fits All Lithium Battery Chemistries

Different lithium chemistries require different charging voltages and termination logic.

Examples:

• LiFePO4

• NCM / NCA

• LTO (Lithium Titanate)

Using an incompatible charger may:

• Cause incomplete charging

• Overcharge the battery

• Damage battery cells

Correct Approach

Always confirm:

• Battery chemistry type

• Nominal voltage

• Full-charge voltage

Then select a lithium battery charger specifically configured for that chemistry.

Pitfall 5: Continuously Using Fast-Charge Mode

Fast charging increases convenience but also increases:

• Internal temperature

• Lithium plating risk

• Long-term capacity degradation

Recommended Strategy

Use standard 0.5C–1C charging for daily use.
Reserve high-rate charging (1.5C or above) for emergency situations only.

Balancing efficiency and longevity is essential.

Rational Lithium Battery Charger Selection Framework

To make a technically sound purchasing decision, follow this structured approach.

Step 1: Identify Battery Specifications

Record from battery label:

• Nominal voltage (V)

• Capacity (Ah)

• Chemistry type

Calculate required charger power:

Voltage × Capacity × Charge Rate (0.5C–1C recommended)

This ensures correct voltage matching and current limitation.

Step 2: Evaluate Usage Environment

Different applications require different charger designs.

Environmental suitability directly impacts reliability.

Step 3: Verify Certifications & Protection Mechanisms

Prioritize lithium battery chargers with:

• UL + CE + CCC dual certification

• DOE Level VI or ERP efficiency compliance

• OVP / OCP / OTP / SCP protection

• Dual fuse design

Certified protection reduces operational risk and liability exposure.

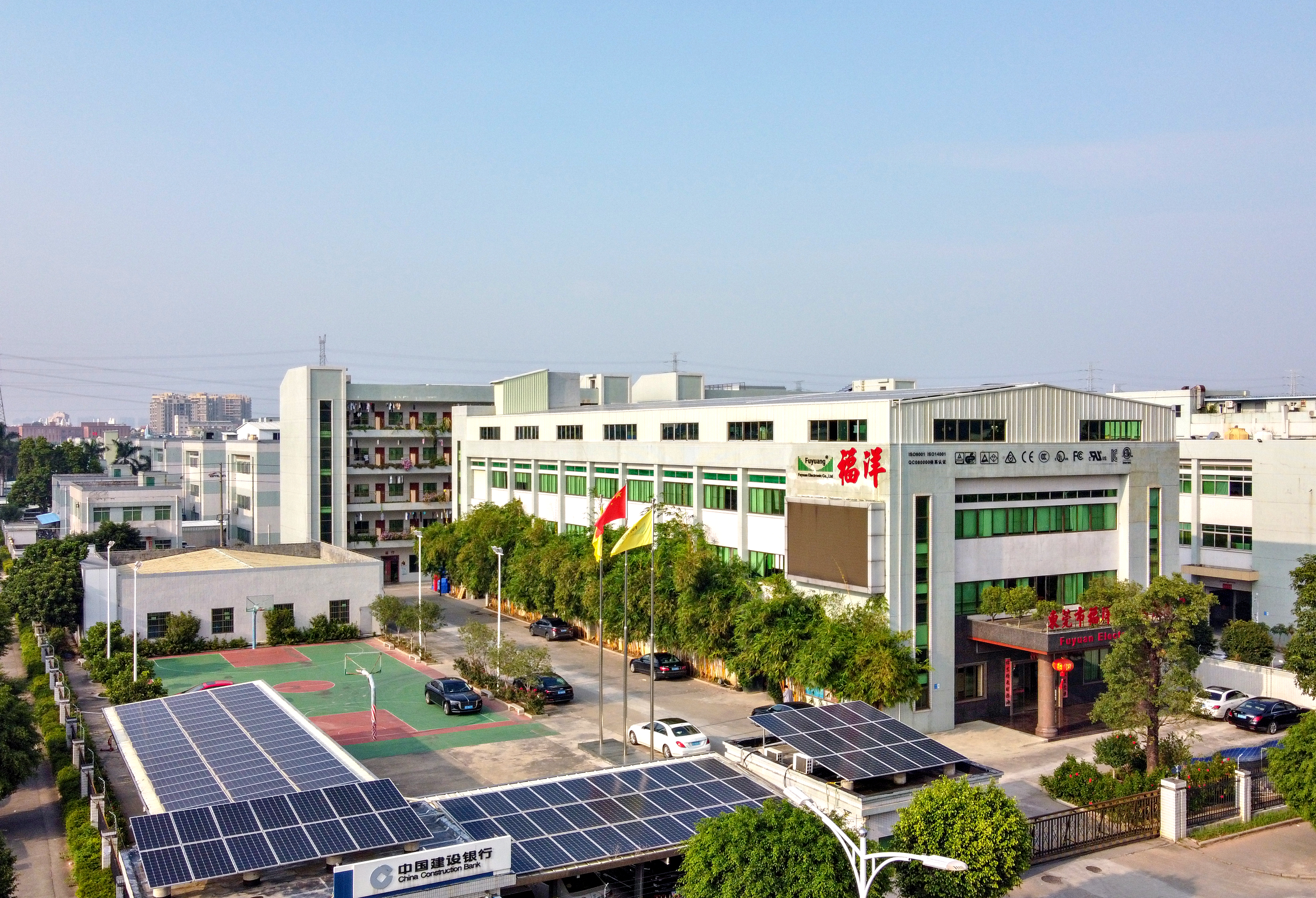

Step 4: Assess Manufacturer Capability & After-Sales Support

For distributors, OEM buyers, or enterprise procurement:

Choose suppliers with:

• ISO9001 quality system certification

• 3-year warranty support

• 4-hour full-load aging test

• MTBF ≥30,000 hours

• Engineering customization capability

Stable after-sales support ensures long-term cooperation and reduced maintenance cost.

Step 5: Reference Proven Application Cases

Before bulk purchasing:

• Review similar project configurations

• Consult device manufacturers for recommended charger specs

• Analyze field usage feedback

Real-world validation reduces selection risk.

Professional Lithium Battery Charger Solution Considerations

For industrial users, OEM brands, and large-volume buyers, supplier capability becomes critical.

When evaluating a lithium battery charger manufacturer, examine the following:

Technical Coverage

• Full power range: 24W–1200W

• Wide voltage output: 8V–87V

• Custom charging profiles based on battery pack design

Certification System

Products compliant with:

UL, ETL, FCC, GS, CE, CB, KC, PSE, SAA, CCC, UKCA

Ensures smooth entry into global markets.

Quality Control Standards

• 4-hour full-load aging tests

• MTBF ≥30,000 hours

• Strict incoming component inspection

• Multi-stage production testing

Engineering Response Speed

An experienced engineering team capable of:

• Rapid prototyping

• 10-day development cycle

• Custom enclosure & connector solutions

Fast technical response is essential for project-driven industries.

Final Recommendation

Choosing a lithium battery charger is a balance between:

• Safety

• Charging efficiency

• Battery lifespan

• Cost control

Avoid blindly pursuing the lowest price or highest power.

Instead:

✔ Confirm battery parameters
✔ Match charger specifications precisely
✔ Verify certifications
✔ Prioritize protection mechanisms
✔ Choose reliable manufacturers

For professional users and bulk procurement projects, partnering with a certified lithium battery charger manufacturer that offers customization capability and global compliance is the most reliable path toward long-term operational stability.

Taking Dongguan Fuyuan Electronics Co., Ltd. (FUYUAN) as an example: Founded in 2005, the company specializes in R&D and manufacturing of battery chargers and power adapters. It has developed over 2000 product models, serving leading enterprises across industries such as SUNWODA, LG, Tenda, and CSIC. Its product line ranges from 60W portable chargers to 1200W industrial-grade power supplies. Notably, its 120W Slim series features a long, narrow design for tight spaces, and its 1200W IP67 series supports ultra-high current output up to 50A, providing targeted solutions for diverse scenarios.
