Ever wondered how your electric robot knows when to stop charging—or how it charges at all? Whether it's a robot vacuum, a lawn mower, or a pool cleaner, the core of its functionality depends on a reliable and efficient Electric Robot Battery Charger. Understanding how these chargers work can help you protect your device's battery, extend its life, and avoid frustrating charging issues.
As electric robots become smarter and more common in our homes and workplaces, so do their power needs. A well-designed Electric Robot Battery Charger does more than simply fill a battery—it communicates with your robot, manages heat, ensures safety, and adapts to different battery types. But when things go wrong, it's often hard to tell if the issue is with the robot or the charger.
In this comprehensive guide, we'll explore how electric robot chargers work, the different types available, what smart charging really means, and how to choose the right charger for your needs. We'll also cover common problems, safety tips, and maintenance practices to keep your robot running smoothly.

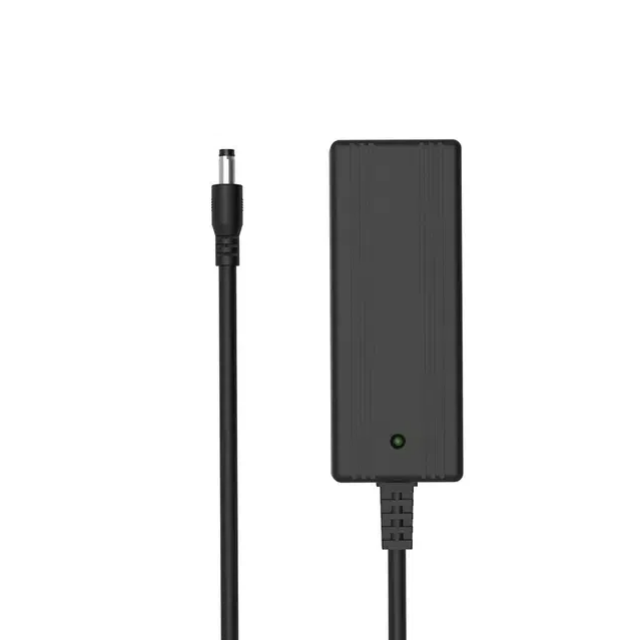

An Electric Robot Battery Charger is a device that converts AC power from your wall outlet into a lower-voltage DC current suitable for charging robot batteries. These chargers are designed specifically to match the voltage, current, and chemical composition of the battery inside your robot.
Standard Plug-In Chargers – Used for simple devices; manually connected.
Docking Stations – Allow your robot to automatically return and recharge.
Fast Chargers – Deliver higher currents for quicker charging cycles.
Smart Chargers – Include microcontrollers that communicate with the battery.

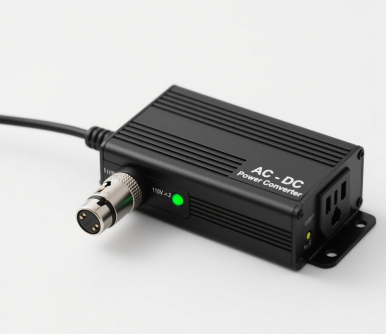

This is the core of the charger. It takes in high-voltage Alternating Current (110V–240V AC) from your wall outlet and converts it into a Direct Current (DC) output with the appropriate voltage level (e.g., 14.6V or 25.2V) suitable for the robot's battery. This step is essential because robot batteries can only accept DC power.

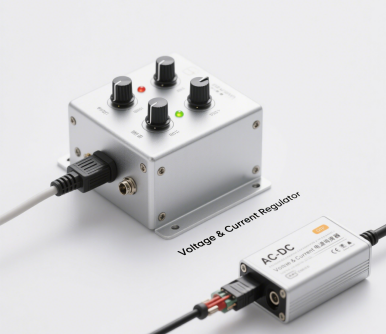

Once the current is converted, it must be carefully controlled. The voltage and current regulator ensures stable and consistent delivery of power. It prevents issues such as power surges, overvoltage, or excessive current, which could damage the battery or reduce its lifespan.

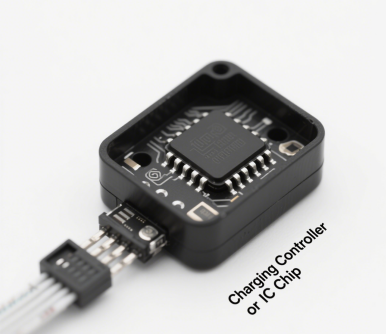

The intelligent heart of the charger. This integrated circuit (IC) chip or microcontroller manages the entire charging cycle. It switches between two key modes:
Constant Current (CC): for rapid initial charging.
Constant Voltage (CV): for topping off the charge safely.
It also monitors battery temperature, voltage levels, and capacity in real time.

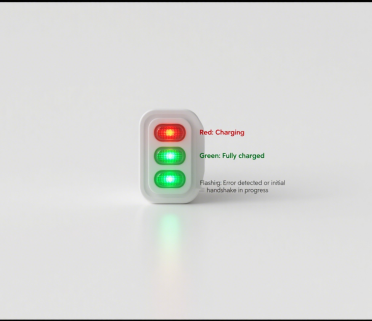

Most electric robot chargers come equipped with LED lights that visually communicate the charger's status:
Red: Charging
Green: Fully charged
Flashing: Error detected or initial handshake in progress
These indicators help users quickly understand what’s happening without the need for complex diagnostics.

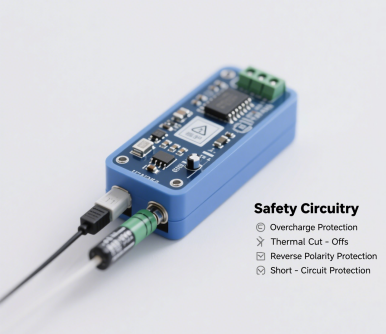

Safety components are built into the charger to protect both the robot and the user. These may include:
Overcharge Protection: Prevents the battery from being charged beyond its limit
Thermal Cut-Offs: Stops charging if overheating is detected
Reverse Polarity Protection: Prevents damage from incorrect connections
Short-Circuit Protection: Automatically shuts down if a short is detected
Together, these elements ensure safe and efficient charging every time.
Connection & Handshake
Once connected, the charger identifies battery type and capacity.
Constant Current Phase (CC)
The charger delivers a steady current to rapidly charge the battery to ~80%.
Constant Voltage Phase (CV)
The charger holds voltage steady while current drops. This protects the battery.
Full Charge & Auto Cut-Off
Once charging is complete, the charger shuts off or enters trickle charge mode.
Modern electric robot chargers often feature Battery Management Systems (BMS) that provide:
Real-time temperature monitoring
Over-discharge protection
Adaptive charging based on battery health
Error diagnostics through LED patterns
Smart chargers can significantly extend battery life by optimizing the charging curve.
Using a charger with incorrect voltage or amperage can:
Damage the battery
Cause overheating
Trigger built-in protection mechanisms
Always check your robot's battery specs and charger output rating before connecting.
Different robots use different battery types:
Li-ion – Common in vacuums, smart mowers
NiMH – Found in older models
LiFePO4 – Safer and longer lasting, often in outdoor robots
Chargers must match the battery chemistry exactly.
Check outlet and cable
Look for frayed wires or burnt smell
Try another known-good charger
Clean contacts and ports
Reseat battery if removable
Test with another charger to isolate issue
Consult charger manual for error codes
Could indicate overheat, short, or mismatch
Warm is normal, hot is not
Unplug and let it cool
May need replacement if consistent
Keep terminals clean and dry
Avoid humid or wet environments
Store in a cool, shaded place
Use a surge protector to guard against lightning or power fluctuations
Don't coil cords tightly – this can damage the internal wiring
No power or output
Cracked housing
Unusual noise or burning smell
Charging takes much longer than usual
Your robot doesn't recognize the charger
Match voltage (V) and current (A) exactly
Choose a brand-certified charger
Look for UL/CE safety certifications
If using outdoors, pick a water-resistant model
Q: Can I use a phone charger for my robot if it fits?
A: No. Even if the plug fits, voltage and current are likely incompatible.
Q: Is it OK to leave my robot on the charger overnight?
A: Yes, if the charger includes automatic shutoff. Otherwise, it could overcharge.
Q: What happens if I use the wrong charger?
A: At best, the robot won't charge. At worst, you risk battery damage or fire.
Q: Why does my charger get warm?
A: It's normal for chargers to get mildly warm, but extreme heat means a problem.
Understanding how an Electric Robot Battery Charger works is essential for keeping your smart devices running efficiently and safely. From the internal components to the charging cycle and smart technologies, every detail matters in powering up your robotic helper. By choosing the right charger, avoiding mistakes, and performing basic maintenance, you’ll not only protect your investment—you’ll ensure your robot always has the energy to perform its best.
Whether you're troubleshooting issues, buying a new charger, or just curious about how it all works—this guide has you covered.
