Fuyuang 42V 2A Smart E-Scooter Battery Charger for 36V Li-ion and LiFePO4 Packs

Fuyuang 42V 2A Smart E-Scooter Battery Charger for 36V Li-ion and LiFePO4 Packs

Name: Fuyuang 42V 2A Smart E-Scooter Battery Charger for 36V Li-ion and LiFePO4 Packs
Brand: Fuyuang
Rating: 5.0 (35 reviews)

The Fuyuang FY4202000 is a smart scooter charger rated 42V 2A / 84W with a 100-240Vac 50/60Hz input. The platform covers 42V 2A, 42V 5A, 54.6V 2A, 54.6V 3A and custom output combinations, with power levels from 60W to 1200W, so it fits e-scooters, e-bikes and light industrial packs. Multi-protection safety covers short circuit, over-voltage, over-current, over-charging and fire risk, and high-speed charging runs at 95% efficiency. The charger is fanless with free-air convection cooling, and its output can be tailored to a specific battery system. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY4202000
Brand:
Fuyuang
Code:
FY4202000


Availability:

Product Overview

The FY4202000 is a smart scooter charger delivering 42V 2A / 84W from a universal 100-240Vac input. It charges 36V class packs and is equally used on e-bikes, scooters and industrial battery systems. A wide compatibility band covers 12V, 24V, 25.5V, 29.4V, 54.6V, 58.4V, 60V, 72V, 84V and 96V LiFePO4, lithium-ion and lead-acid batteries on the same platform. Charging is high speed, protection is multi-layer, and the housing is flame-retardant aluminium and PC fireproof material.

Key Features

• Smart scooter charger, 42V 2A with 95% efficiency • Output options: 42V 2A / 42V 5A / 54.6V 2A / 54.6V 3A / custom • Multi-protection safety: short circuit, over-voltage, over-current, over-charging • Fanless cooling design with flame-retardant housing • High-speed charging with FCP and SCP support • Wide chemistry support: LiFePO4, lithium-ion and lead-acid • Custom voltage, current, connectors and AC plugs • Power range 60W to 1200W

Technical Specifications

• Model: FY4202000 • Type: smart scooter charger • Input: AC 100-240Vac, 50/60Hz • Output: 42V 2A (84.0W) • Output options: 42V 2A / 42V 5A / 54.6V 2A / 54.6V 3A / custom • Power range: 60W / 65W / 100W / 120W / 200W / 300W / 600W / 800W / 1200W • Efficiency: 95% • Battery compatibility: 12V / 24V / 25.5V / 29.4V / 54.6V / 58.4V / 60V / 72V / 84V / 96V LiFePO4, lithium-ion and lead-acid • Housing material: ABS, aluminium, aluminium alloy, PC fireproof material • Protection: short circuit, over-voltage, over-current, over-charging, fireproof • Colour: black, silver, grey • Certification: UL, CE, PSE, GS, FCC, RoHS, UKCA, SAA • MOQ: 100 PCS

Applications

• Electric scooters • E-bikes • Industrial battery systems • Electric vehicles • Electric motorcycles • Robotics • Medical devices

Customization & Service

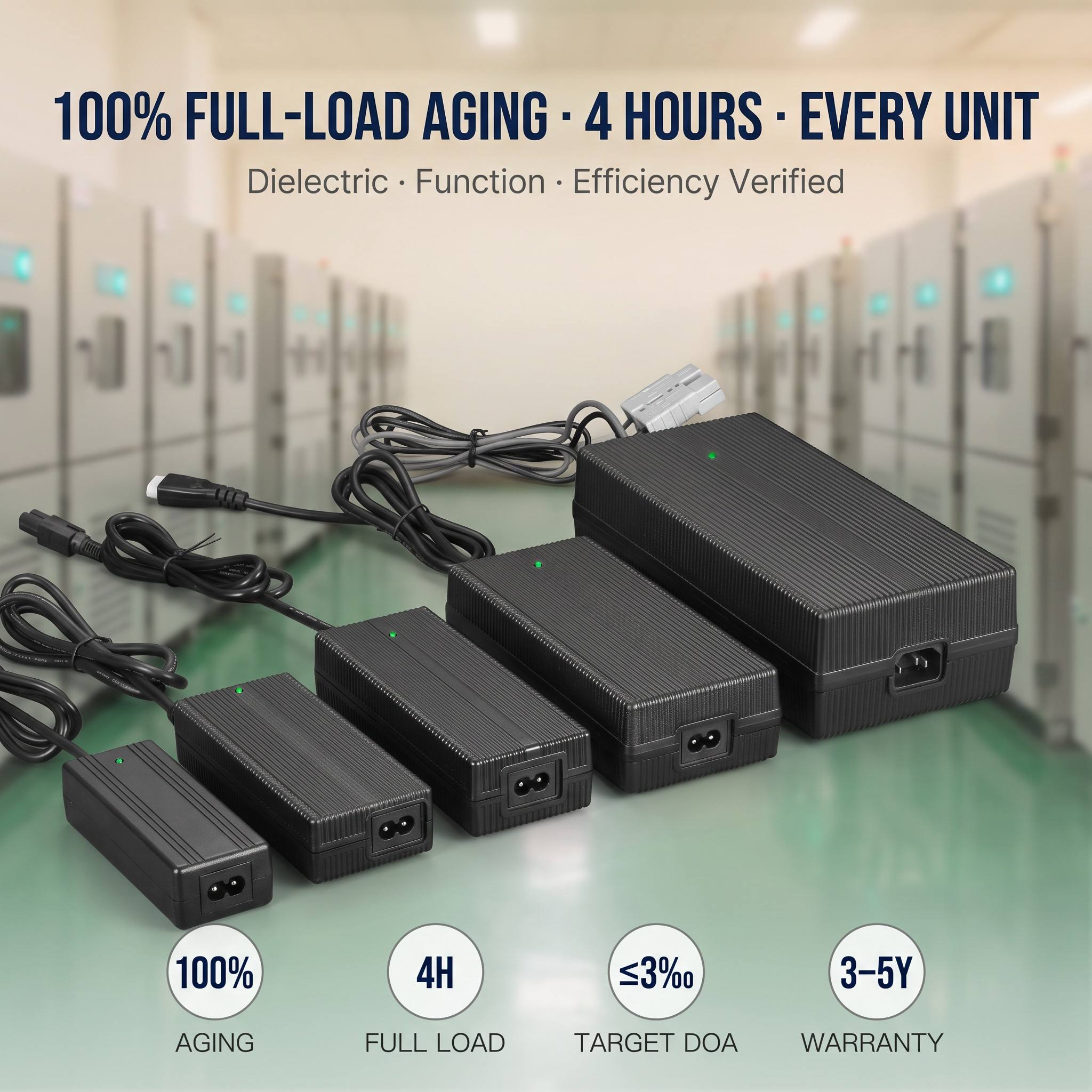

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.

42V 2A scooter battery charger 36V Li-ion battery charger 42V 5A e-bike charger smart scooter charger multi-protection battery charger
