Fuyuang 29.2V 5A 146W LiFePO4 Battery Charger for 24V E-bike, Scooter, Robot and AGV

Fuyuang 29.2V 5A 146W LiFePO4 Battery Charger for 24V E-bike, Scooter, Robot and AGV

Name: Fuyuang 29.2V 5A 146W LiFePO4 Battery Charger for 24V E-bike, Scooter, Robot and AGV
Brand: Fuyuang
Rating: 5.0 (44 reviews)

The Fuyuang FY2905000 is a 29.2V 5A AC/DC LiFePO4 battery charger delivering 146W, on a 200W platform. It serves 24V lithium iron phosphate packs on electric bikes, scooters, robots and AGVs, and also supports Li-ion and lead-acid batteries where configured. Three-stage intelligent charging (constant current - constant voltage - trickle) ensures the battery reaches full charge, and auto-stop plus over-voltage, over-current, short-circuit and reverse protection keep the cycle safe. The fanless design cools by free air convection with no noise, and efficiency reaches 95%. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty.

Model:
FY2905000
Brand:
Fuyuang
Code:
FY2905000


Availability:

Product Overview

The FY2905000 is a 29.2V 5A AC/DC LiFePO4 battery charger rated 146W on a 200W platform, built for 24V lithium iron phosphate packs on electric bikes, scooters, robots and AGVs. Output voltage and current can be tailored to the application. Three-stage intelligent charging - constant current, constant voltage and trickle - brings the pack to full charge and holds it there safely, while input and output fuses provide double-layer protection.

Key Features

• 29.2V 5A output, 146W on a 200W platform • Three-stage intelligent charging: CC, CV and trickle • Supports LiFePO4, Li-ion and lead-acid battery systems • 95% charging efficiency • Fanless design, cooling by free air convection • Auto-stop, over-voltage, over-current, short-circuit and reverse protection • Input and output fuses for double-layer safety • DC connectors: M16, M12, 5521, 5525, XLR, Anderson or OEM

Technical Specifications

• Model: FY2905000 • Product name: 29.2V 5A LiFePO4 lithium battery charger • Input: 100-240Vac, 50/60Hz • Output: 29.2V 5A • Output power: 146.0W • Platform power: 200W • Charging mode: three-stage, constant current - constant voltage - trickle • Efficiency: 95% • DC connectors: M16 / M12 / 5521 / 5525 / XLR / Anderson / OEM • Type: desktop with LED indication • Protection: auto-stop, over voltage, over current, short circuit, reverse protection • Certification: UL, cUL, GS, CE, RoHS, REACH, SAA, PSE, FCC • Warranty: 3 years • MOQ: 50 PCS

Applications

• Electric bikes and e-bikes • Electric scooters • Robots and AGVs • Industrial equipment • 24V LiFePO4 and Li-ion battery packs

Customization & Service

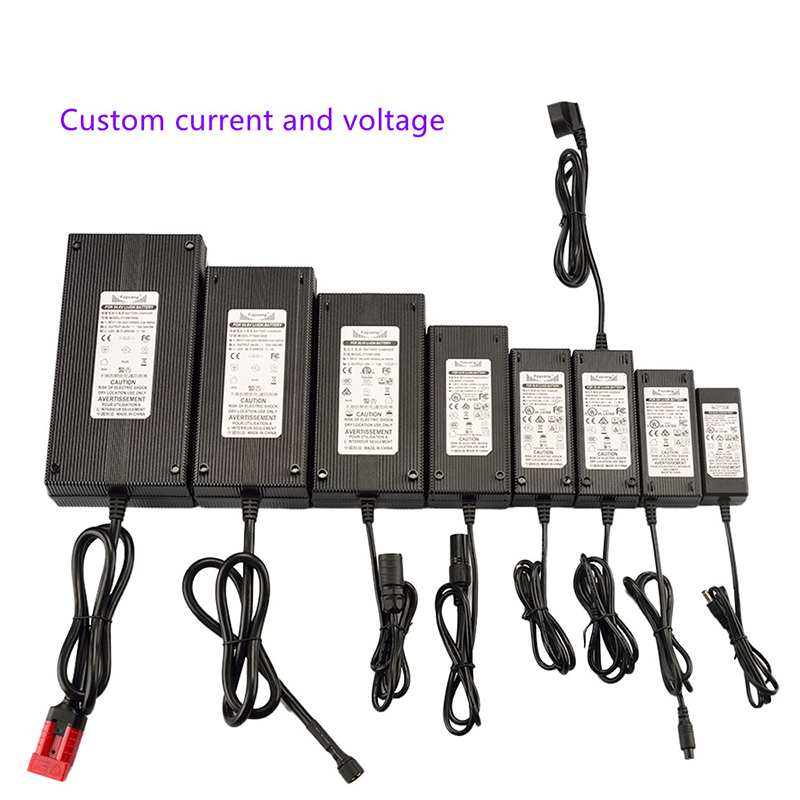

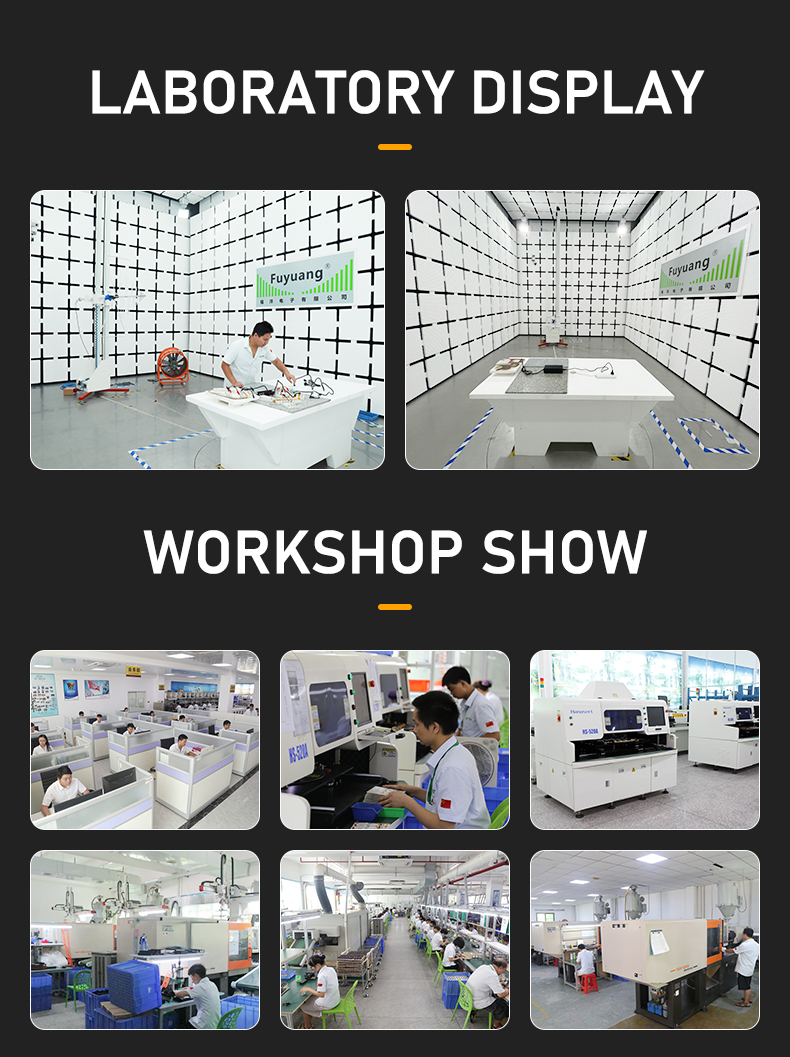

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and DC connector selection. Engineering support is backed by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be shortened. Every unit is 100% factory inspected and receives 4-8 hours of full-load burn-in, and this product carries a 3-year warranty. Standard MOQ is 50 PCS.
